T10050 Right angle iron Bender

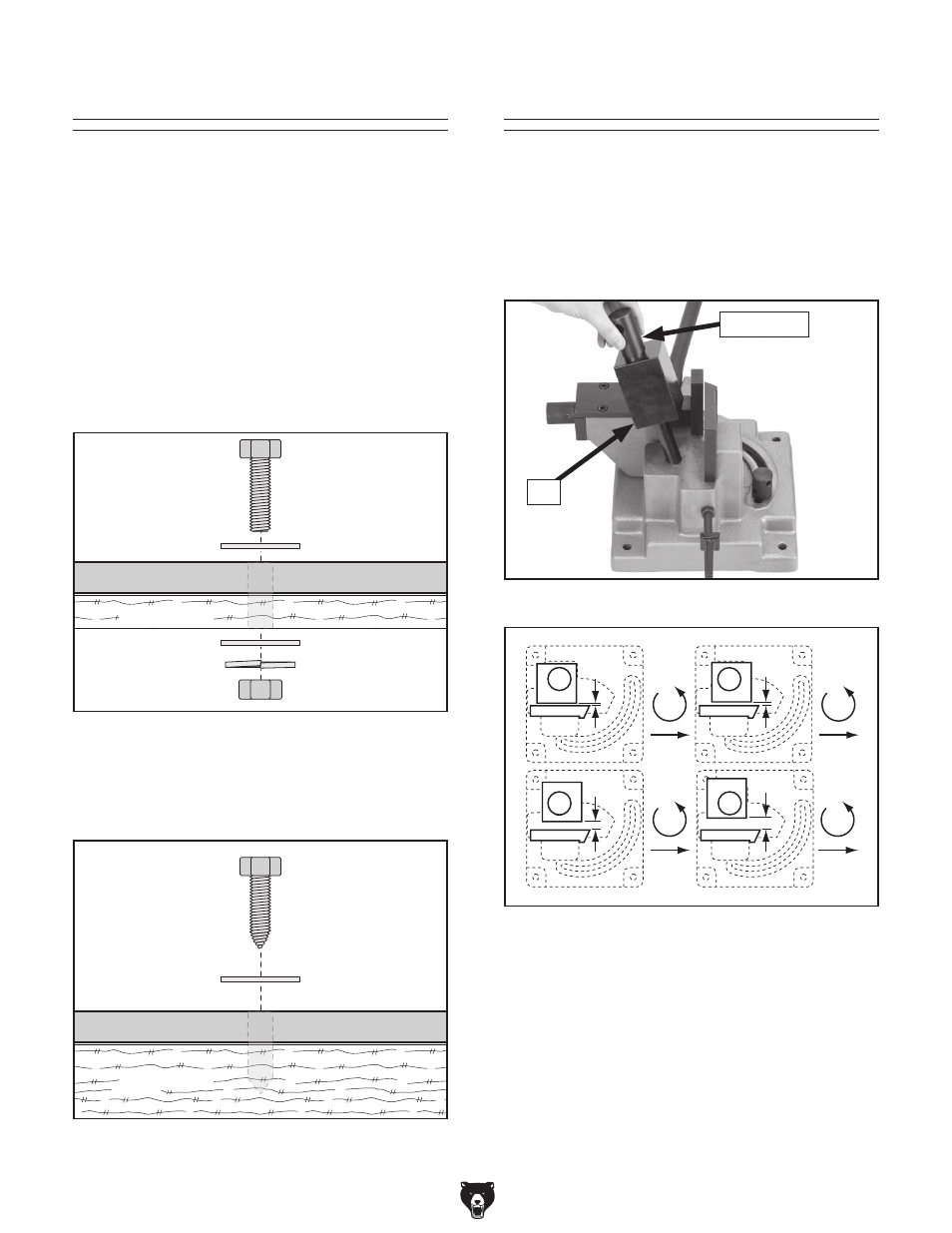

Mounting Operations
once you have confirmed that your machine is
assembled and functioning properly, mount it to a
workbench through the holes in the base. Be sure
the workbench will remain stable when bending
force is applied to the machine. if necessary,
anchor the workbench to a wall or the floor to
provide the necessary stability.
The strongest mounting option is a "Through
Mount" where holes are drilled all the way through
the workbench, and hex bolts, washers, and
hex nuts are used to secure the machine to the
workbench.
-ACHINE
7ORKBENCH
7dai
;aViLVh]Zg
;aViLVh]Zg
AdX`LVh]Zg
=ZmCji
Figure 8.. example of a through mount setup.
-ACHINE
7ORKBENCH
AV\HXgZl
;aViLVh]Zg
Figure 9.. example of a direct mount setup.
another option for mounting is a "direct Mount"
where the machine is simply secured to the work-
bench with a lag screw.
Creating Bends
1.. lift the clamp cam shaft to release the clamp
die. Rotate the clamp die as necessary to
accommodate the thickness of your work-
piece, then slide the clamp cam shaft back
into the base (
Figures 10 & 11).
Figure 10.. Lifting clamp cam shaft and die.
Figure 11.. Clamp die positions.
Cam Shaft
die
