-6-
T10050 Right angle iron Bender
To ensure consistent and accurate bends when
performing multiple, identical operations, use the
work stop and angle stop.
To use the work stop and angle stop:
1.. place the workpiece in the machine as need-
ed, then slide the work stop against the end
of the workpiece. Tighten the work stop knob
(
Figure 16).
2.. Bend the workpiece to the desired angle,
then slide the angle stop against the bender
base. Turn the angle stop to lock it in position
(
Figure 17).
Ldg`Hide
Ldg`e^ZXZ

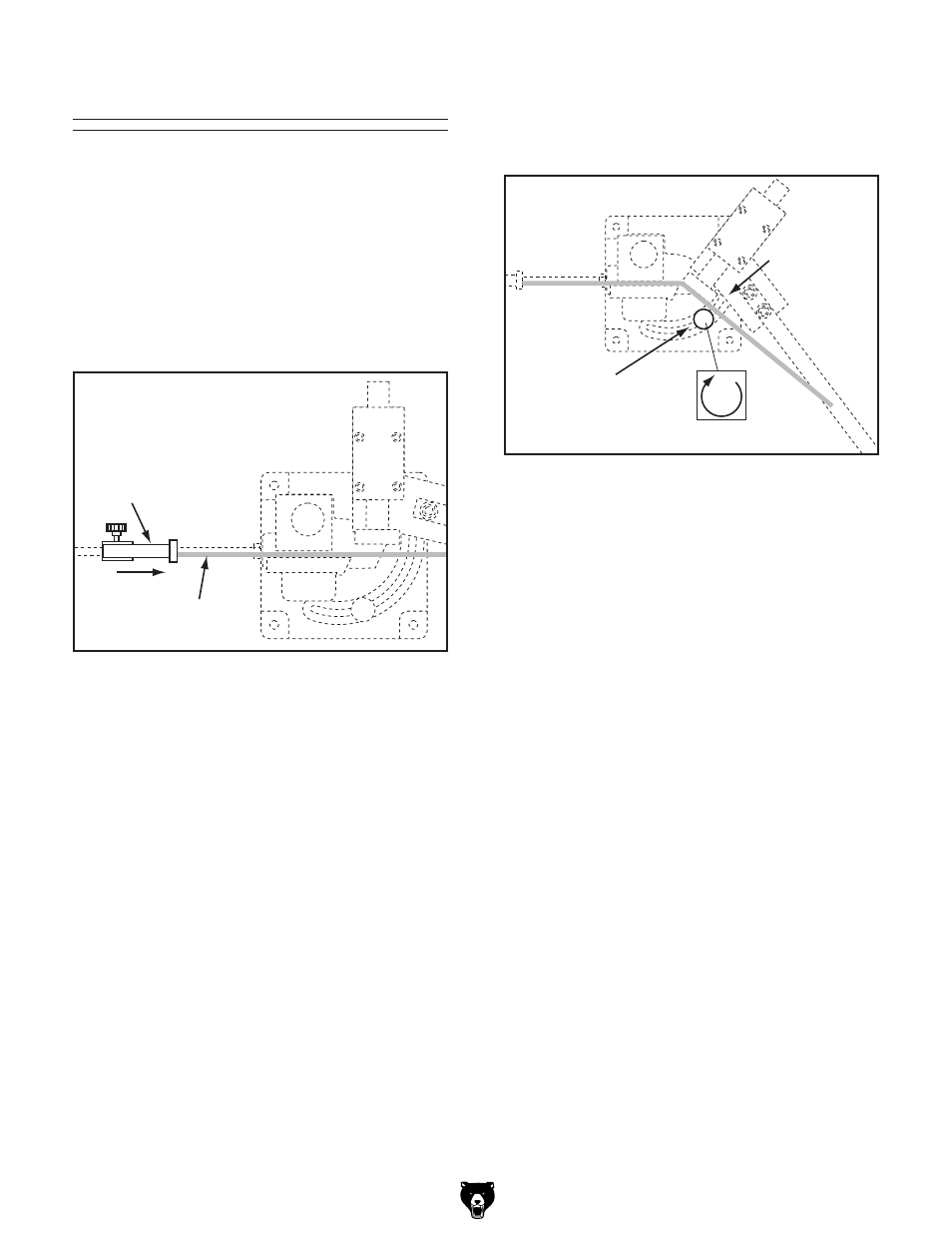

Figure 16.. Using work stop.
6c\aZHide
7ZcYZg7VhZ
8L
Figure 17.. Using angle stop.
3.. With each new workpiece, place the work-
piece against the work stop, clamp it, then
bend it until the moving bender base contacts
the angle stop.
Repetitive Bends
