Installation Instructions for ZIP75WW, ZIP75BB Kit
9
NOTE: If installing a 3/4
″ trimless custom panel, a
1-1/2
″ wide filler strip may be required. The filler strip
will act as a spacer between the icemaker case and
the adjacent cabinet, and will prevent interference
with the icemaker door swing when it is installed
between frameless or framed cabinetry. The width of
the cutout opening must include the width of the filler
strip. The product cannot be installed flush to adjacent
24
″ deep cabinets with a 3/4″ thick custom panel.
This kit contains a new handle and two side mounting
brackets to support a trimless custom door panel
up to 3/4
″ thick. A custom handle may replace the
supplied handle.
IMPORTANT:
• Cut edges of the custom door panel will be seen and
must be finished for best appearance. The back side
of the panel should be finished a minimum of 1/2
″
on all sides.
• The custom panel, both raised and flat design,
should be constructed in the same manner as typical
cabinet doors.
• Order the custom panel from the cabinet manufacturer.
Be sure to provide the exact dimensions so that the
panel is constructed accurately.
• BEFORE YOU BEGIN:
Read these instructions completely and carefully.
• IMPORTANT:
Save these instructions for local inspector’s use.
• IMPORTANT:
Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions with
your Owner’s Manual for future reference.
WARNING:
Disconnect electrical power supply to
icemaker before installing front panel. Do not
operate icemaker while installing panel.
Failure to do so can result in death, fire, or
electrical shock.
AVERTISSEMENT :
Il faut debrancher l’alimentation de la
machine à glaçons avant d’installer le
panneau avant. La machine à glaçons ne
doit pas être en marche pendant l’installation
du panneau avant. Le non-respect de ces
instructions peut causer la mort, un incendie
ou un choc électrique.

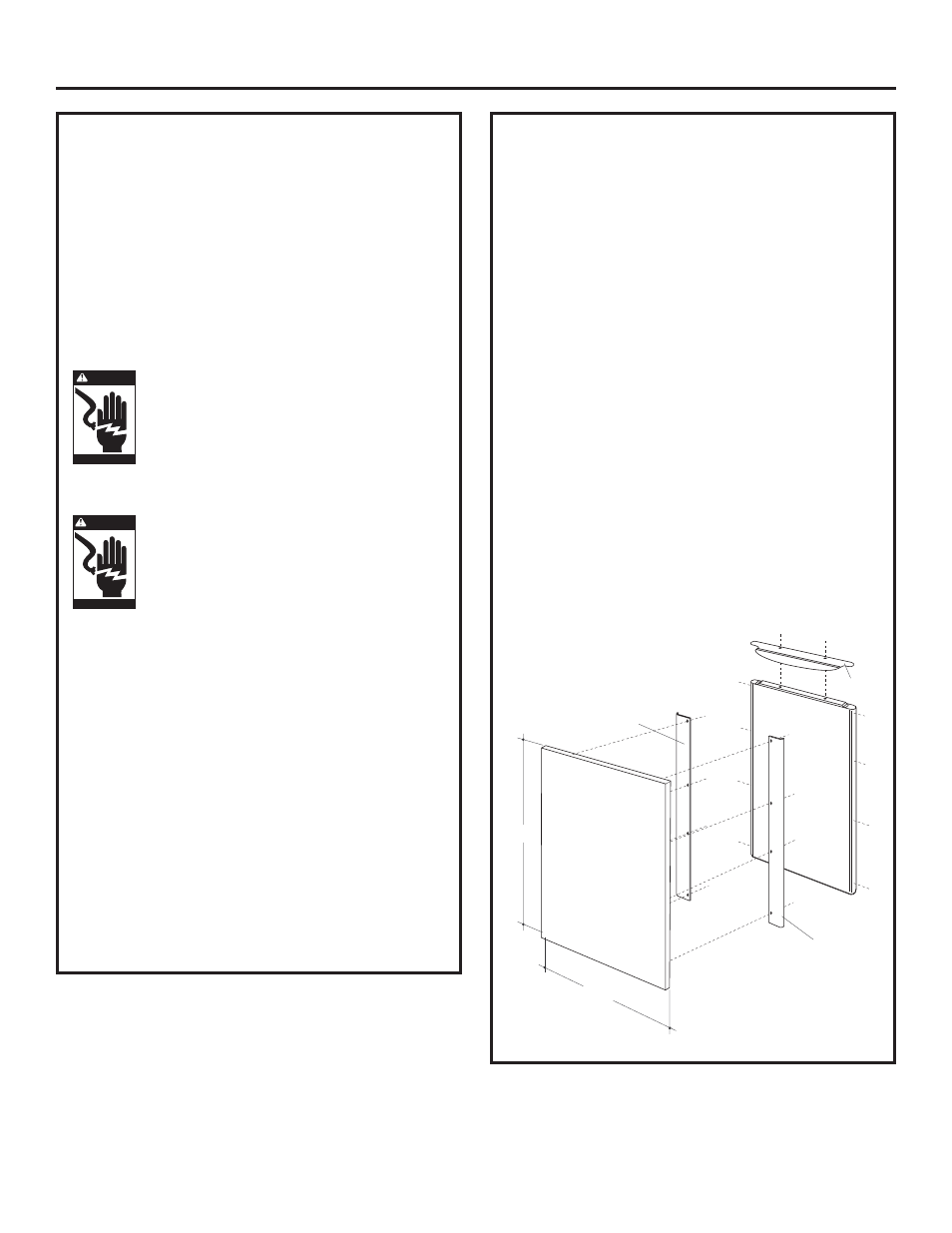

Kit Contents:
• 2 side trim pieces
• 8 side trim screws
• Door handle
Tools and Materials Required:
• 8 flat head wood screws, 1/2
″ long
• Drill and 1/8 ″ bit
• Safety glasses
• Tape
• Custom panel
WARNING
AVERTISSEMENT
14-23/32"
29-1/2"
Left Trim
Right Trim
Handle
Custom
Panel
