Installation Instructions
CONNECT WATER SUPPLY
• The water line should be flushed to clear any foreign
material before connecting to the icemaker.
• Connect the water line to the water supply tube
outside of the rear access cover.
Copper Tubing:
• Use a standard plumbing female connector or union
for 1/4
″ copper tubing that can be purchased locally.
GE SmartConnect ™ Tubing:
• Insert the molded end of the tubing into the icemaker
connection. Tighten the compression nut until it is
just hand tight.
• Tighten one additional turn with a wrench.
Overtightening can cause leaks!
• Make sure there are no sharp bends or kinks that
could restrict water flow.
• Slide the icemaker into its permanent location.
• To prevent
rattling, be sure
the copper tubing
does not touch
the side wall or
other parts inside
the cabinet.
• Open the shut-off
valve. Check for
leaks. Tighten
any connections
(including
connections
at the valve)
if necessary.
Water
Supply
Line
REVERSE THE DOOR SWING
IMPORTANT:
Disconnect power to the
icemaker.
Tools Required:
• 1/4
″ and 5/16″ wrench
• Flat putty knife
• Phillips screwdriver
Parts Supplied:
• 4 plug buttons
• 4 hinge screws
(on some models)
Parts Identification: (For Reference Only)
• Remove the handle screws and lift off handle.
(On black and white models only.)
• Remove the hinge pin from the top hinge.
• Lift the door off of the bottom hinge. Place the hinge
pin back into the top hinge.
Reverse the door endcaps:
• Remove the screws and endcaps from the door,
top and bottom.
• Place the top endcap onto the bottom of the opposite
side of the door with the long flat side facing the
door front.
• Place the bottom endcap onto the top of the opposite
side of the door, with the long flat side facing the
door front.
• Set the door aside.

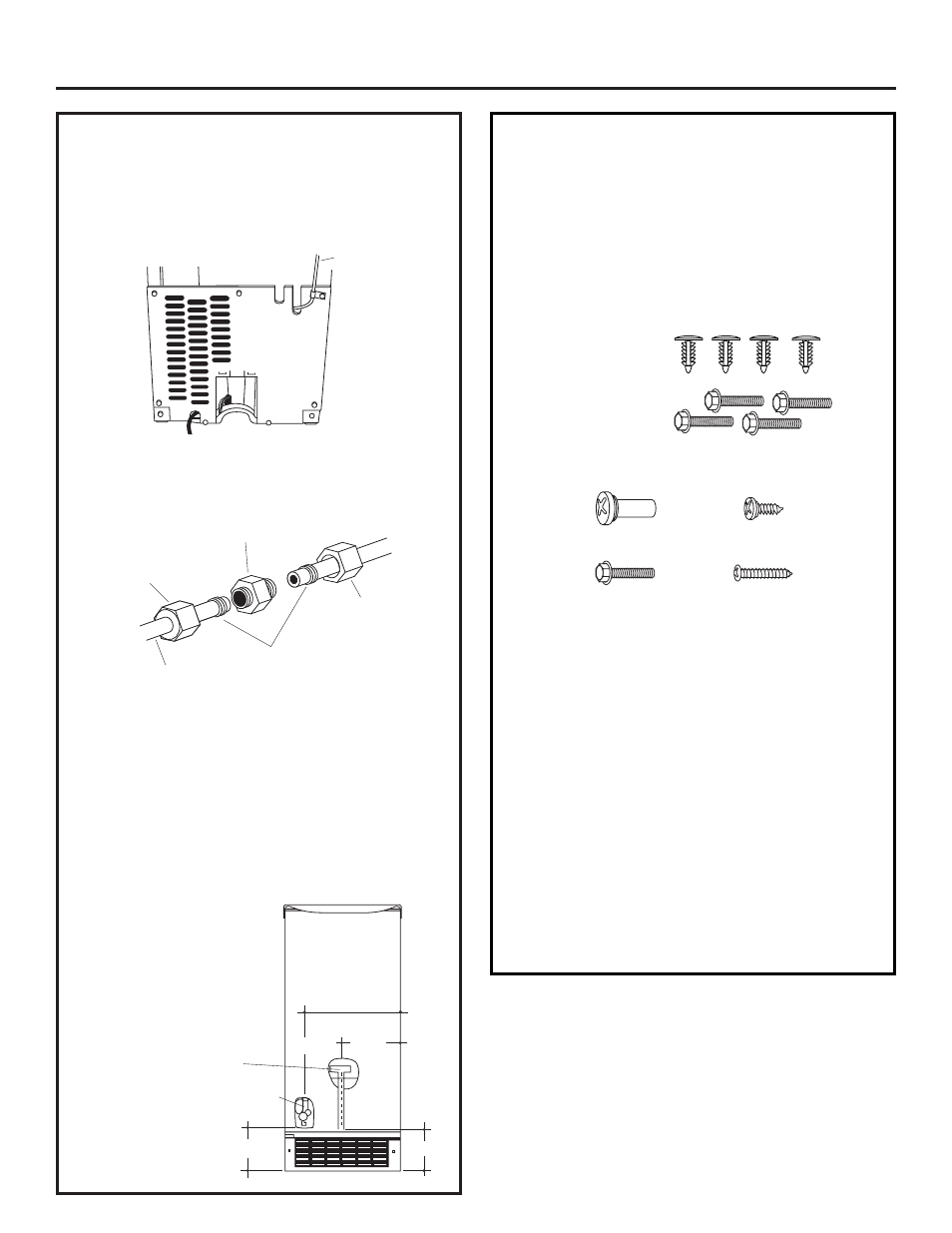

Coupling
(Not Supplied)
Nut
(Supplied)
Ferrule
(Not Supplied)
Line to
Icemaker
Nut
(Supplied)
7-5/16" 12-1/4"
4-5/8" 5-11/16"
Water Pan
Drain
Water Valve
Hinge Pin
5/16" Hex Head
Hinge Screw
Handle Screw
Endcap Screw
