Introduction

This Air Screwdriver features 1,200 RPM free
speed, 3–16 in/lbs maximum torque, 90 PSI, 4
CFM average air consumption,

1

4

" NPT air inlet

and includes two double ended No. 2 Phillips
head drivers and male quick connect fitting.

Inventory

A. Industrial Air Screwdriver ........................... 1

B.

1

4

" NPT Air Fitting ....................................... 1

C. Phillips Head Drivers .................................. 2

Operation

Screw the

1

4

" NPT Air Fitting on the air inlet of

the screwdriver. Pull the knurled collar back into
the screwdriver body and insert the Phillips head
driver into the socket. Twist the adjustment dial to
set the torque to your desired setting.

MODEL H6190

INDUSTRIAL AIR

SCREWDRIVER

INSTRUCTION SHEET

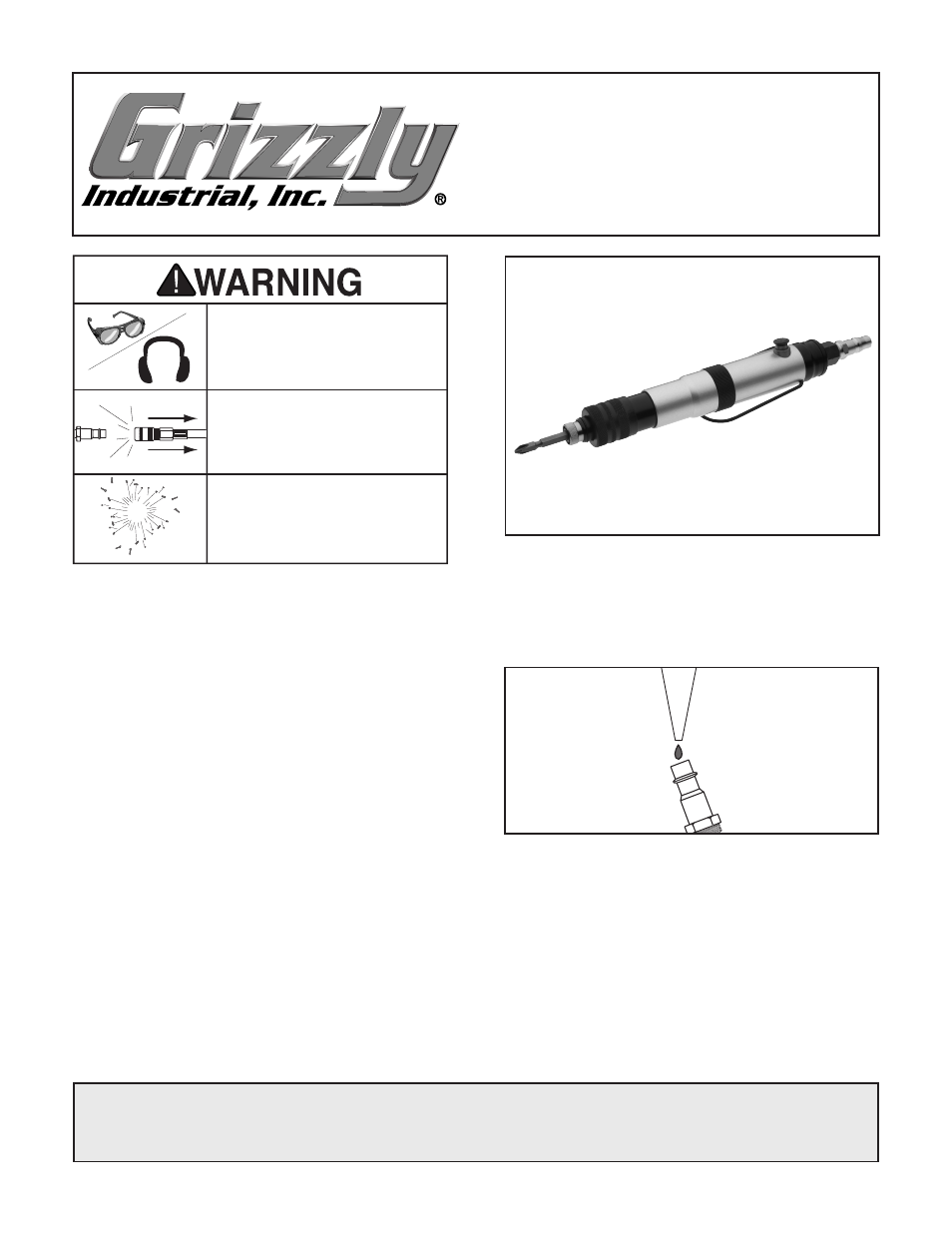

Figure 1.

Model H6190.

Figure 2.

Lubricating directly into air fitting.

If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.

COPYRIGHT © MAY, 2006 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8257 PRINTED IN TAIWAN

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EXPLOSION HAZARD!

Never exceed 90 PSI!

EYE/EAR INJURY HAZARD!

Wear safety glasses and

hearing protection during

use of this tool!

This Industrial Air Screwdriver MUST have 3-4
drops of oil directly dropped into the air fitting
before each use as shown in

Figure 2.
