- 8 -

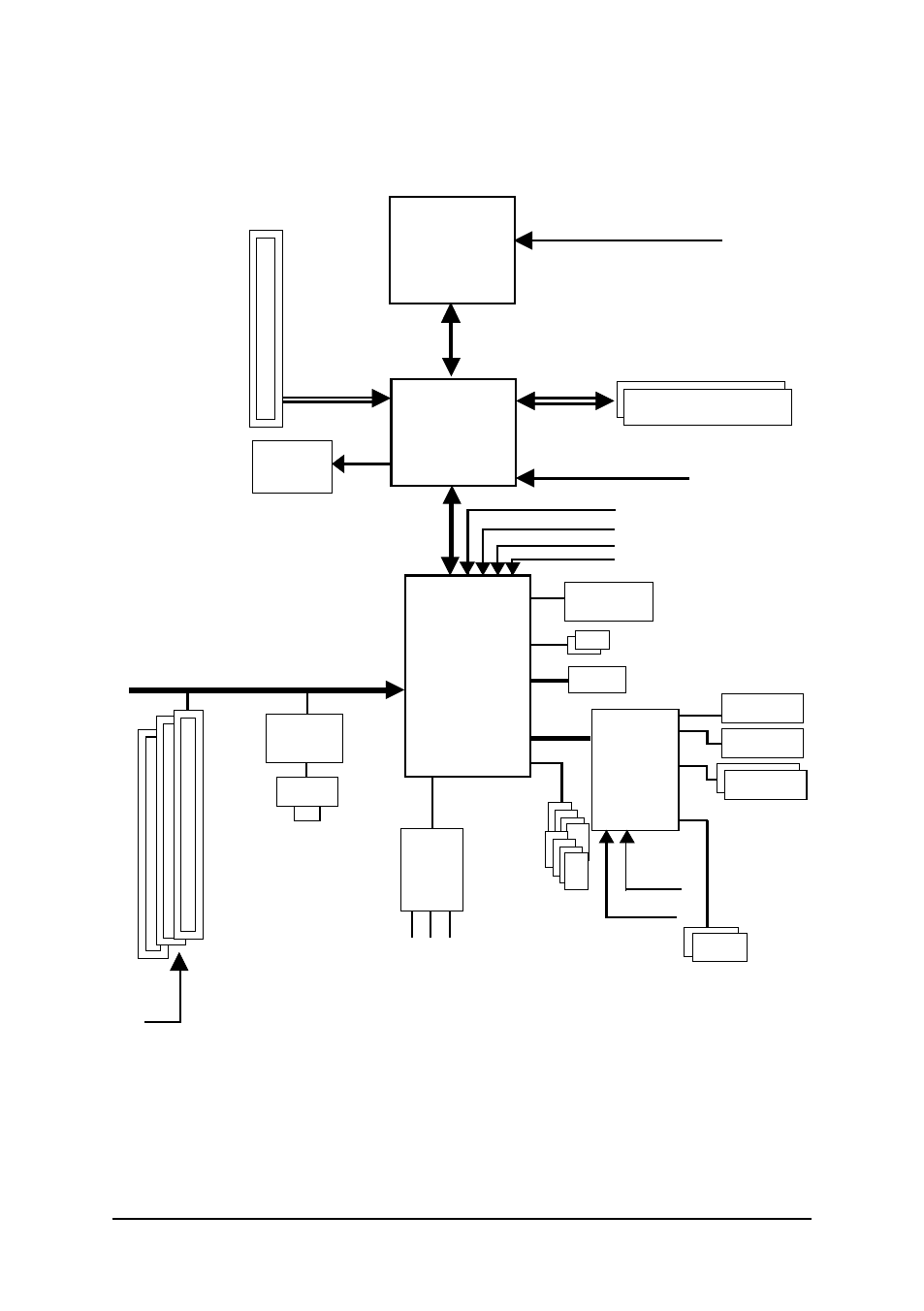

Block Diagram (GA-8I915MD-G)

(Note) To use a DDRII 600 memory module on the motherboard, you must install an 800MHz FSB

processor and overclock in BIOS.

LGA775

Processor

CPUCLK+/-(200/133MHz)

PCI Express x16

33MHz

Host

Interface

Intel

915G

MCH

MCHCLK (200/133MHz)

66MHz

48MHz

COM Ports

Floppy

PS/2 KB/Mouse

24MHz

33MHz

IT8712

2 Serial ATA

ATA33/66/100

IDE1 Channel

Intel

ICH6

14.318MHz

BIOS

8 USB

Ports

PCICLK

(33MHz)

3 PCI

PCI Bus

LPT Port

PCI-ECLK

(100MHz)

RJ45

RTL8110S

DDRII 600

(Note)

/533/400MHz DIMM

Dual Channel Memory

Line-Out

MIC

CODEC

Line-In

VGA
