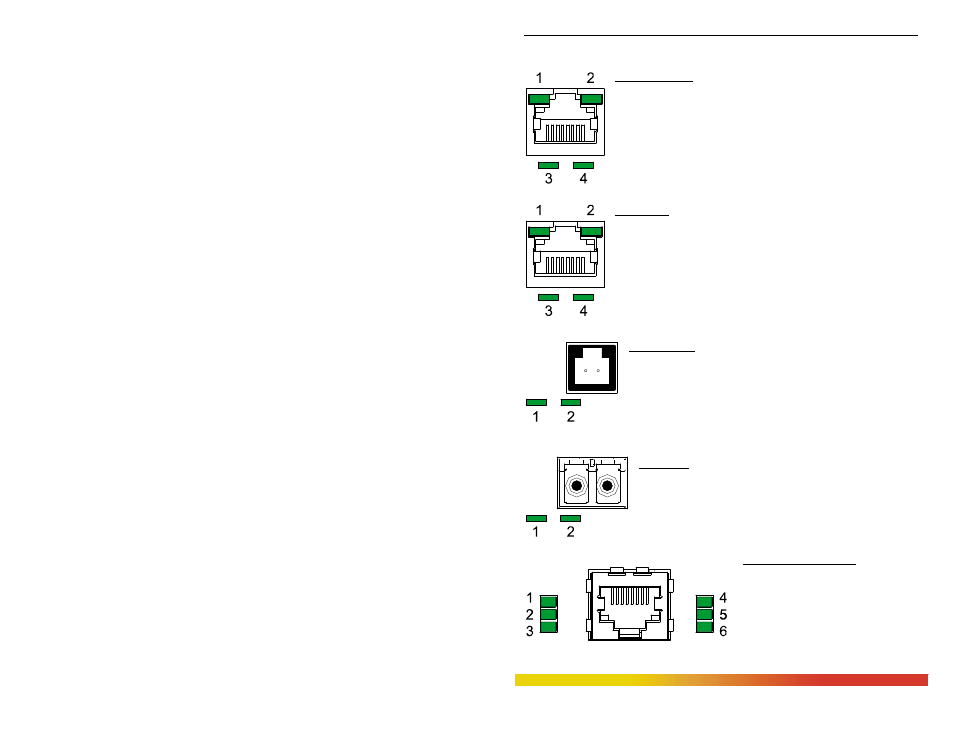

5.1.1 6KQE Module LED designations
RJ45 (Standard)
1= ON (100Mb), OFF (10Mb)
2= ON (Link)
3= ON (Full Duplex), OFF (Half Duplex)
4= BLINKING (Activity)
RJ45 (PoE)
1= ON (100Mb), OFF (10Mb)
2= ON (Link), BLINKING (Link/Activity)
3= ON (Full Duplex), OFF (Half Duplex)
4= ON (PoE device detected)
MTRJ (Fiber)
1= ON (Link)
2= BLINKING (Activity)
LC (Fiber)
1= ON (Link)
2= BLINKING (Activity)
Gigabit (Copper / Fiber)
1= ON (Full Dx), OFF (Half Dx)
2= ON (Link)
3= BLINKING (Activity)
4= ON (1000Mb) Not used for Fiber
5= ON (100Mb) Not used for Fiber
6= ON (10Mb) Not used for Fiber
