Model H8175 Professional Pnuematic Glue Gun -2-
Air Supply

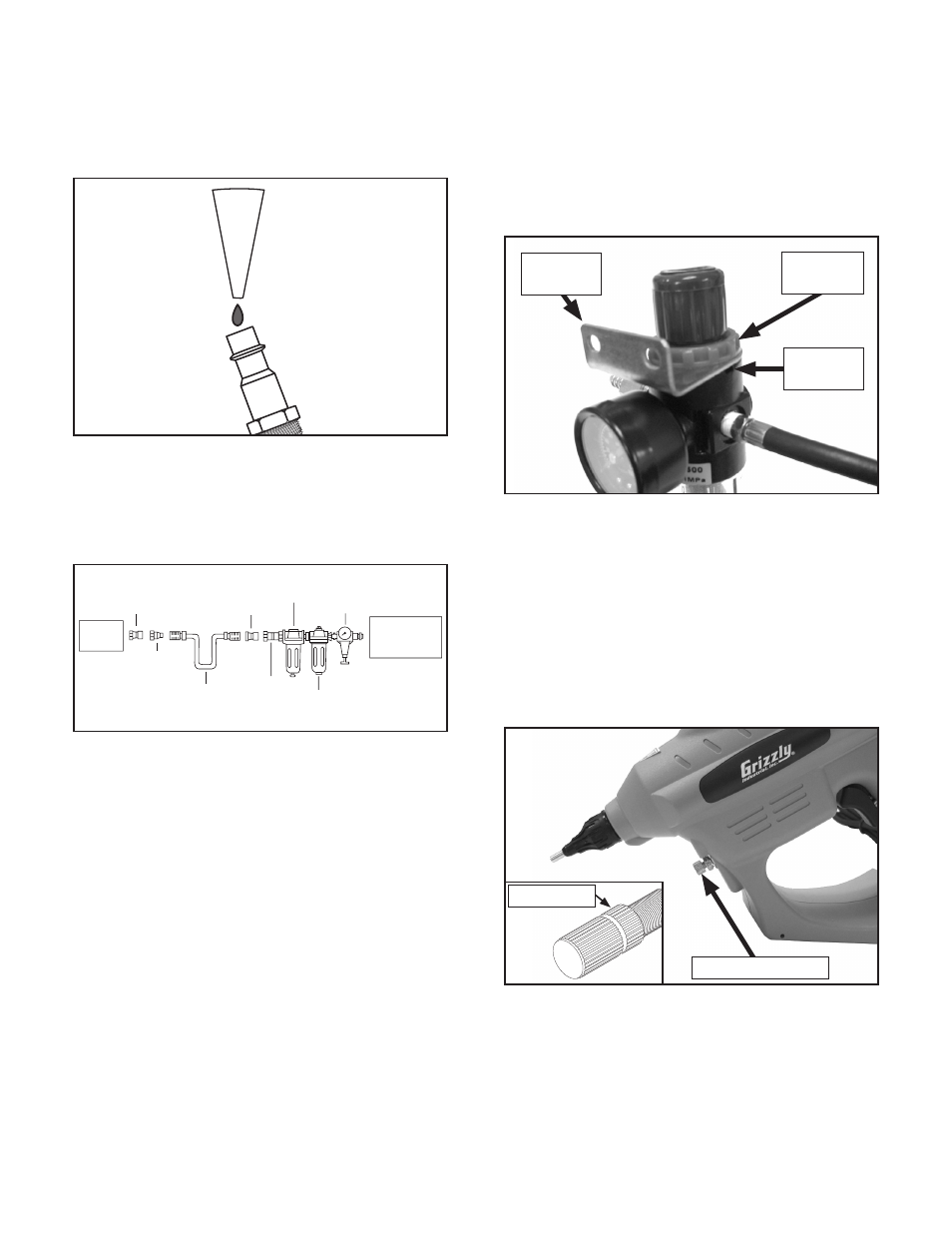

The glue gun MuST be regularly lubricated with
3-4 drops of air tool oil directly into the air fitting
before each use, as shown in
Figure 2.
Quick
Connector
Quick
Coupler
Air Hose
Quick
Coupler
Quick
Connector Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 3 . Installing your tool.
Figure 2. Manual Oiling.
For best results, we recommend using an in-
line filter, lubricator, and regulator, as shown in
Figure 3.
Air Pressure Control
The rate at which the glue is forced from the gun
is dependent on the amount of air pressure. The
air pressure can be adjusted directly at the gun
using the air control knob shown in
Figure 5. Lock
the adjustment by screwing the adjust nut towards
the back of the air control knob until it is flush with
the gun body.
Figure 5. Air control knob.
Adjust Nut
Air Control Knob
An air regulator is supplied with the Model H8175
so air pressure going to the gun can be further
regulated. To reduce the risk of damage to the air
regulator, we recommend mounting the air regula-
tor using the mounting bracket located at the top
(see
Figure 4).
Figure 4. Mounting bracket.
Mounting
Bracket
Retaining
Ring
Mounting
Slot
The mounting bracket can be swiveled around
to four different mounting locations on the air
regulator. To adjust the mounting bracket position,
loosen the retaining ring and rotate the mounting
bracket until the small tab fits into one of the four
mounting slots (see
Figure 4). Tighten the retain-
ing ring and securely mount the air regulator.
