-16- G5979 Wood Lathe

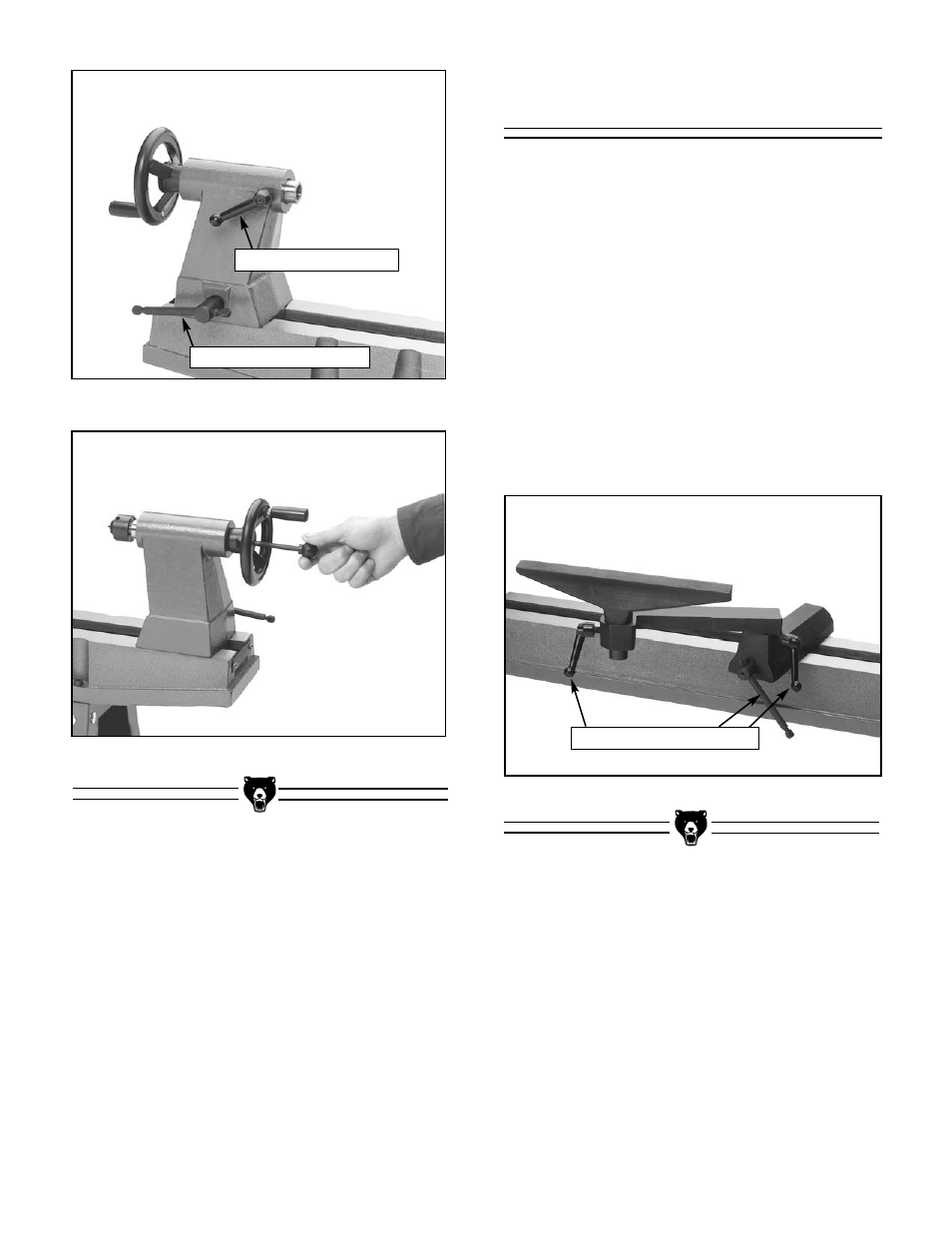

Figure 13. Tailstock assembly.
Figure 14. Removing live center.
Tool Rest
Figure 15. Tool rest assembly.
The tool rest can be used with or without the
extension arm. To adjust the tool rest:
1. To adjust the main base along the bed,
loosen the lock lever and slide into the
desired position. Retighten the lock lever.
2. When using the extension arm, make the
necessary adjustments using the lock levers
and adjusting the extension arm. Re-tighten
the lock levers.
3. Make sure there is adequate clearance
between the workpiece and the tool rest. Test
by hand-turning the workpiece before turning
the lathe on.
Barrel Lock Handle
Tailstock Lock Handle
Tool Rest Lock Handles
