Appendix 4 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

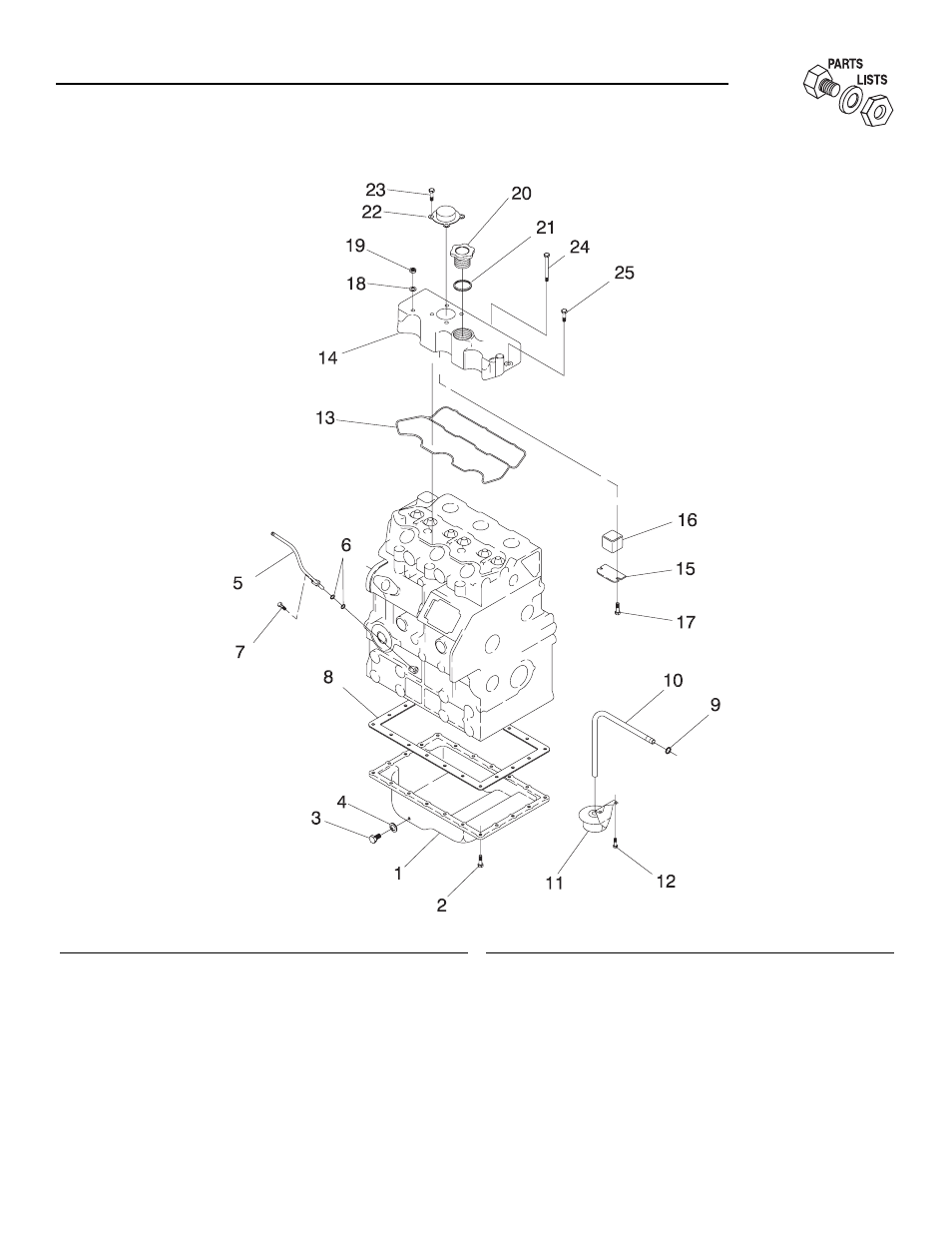

1.0 Liter Diesel Engine Block – Drawing No. 0F4585
ITEM
PART NO. QTY.
DESCRIPTION
1
0709390139
1
OIL PAN
2
0709390140
20
BOLT
3
0F28730116
1
BOLT
4
0709390142
1
SEAL WASHER
5
0C4641
1
DIPSTICK TUBE
6
0D7124
2
O-RING
7
0F28730117
1
BOLT
8
0F28730114
1
GASKET
9
0F28730167
1
O-RING
10
0709390245
1
TUBING
11
0709390246
1
SUCTION FILTER
12
0F28730168
2
BOLT
13
0F28730142
1
GASKET
ITEM
PART NO. QTY.
DESCRIPTION
14
0F28730143
1
HEAD COVER
15
0F28730144
1
OIL STOPPER
16
0709390186
1
SCREEN
17
0F28730145
4
SCREW
18
0F28730146
3
GASKET
19
0F28730147
3
CAP NUT
20
0709390188
1
CAP
21
0709390189
1
O-RING
22
0F28730148
1
BREATHER VALVE
23
0F28730149
4
BOLT
24
0F28730150
3
BOLT
25
0F28730151
2
BOLT
