Appendix 4 — Exploded Views and Parts Lists
QUIETPACT™ 75D Recreational Vehicle Generator

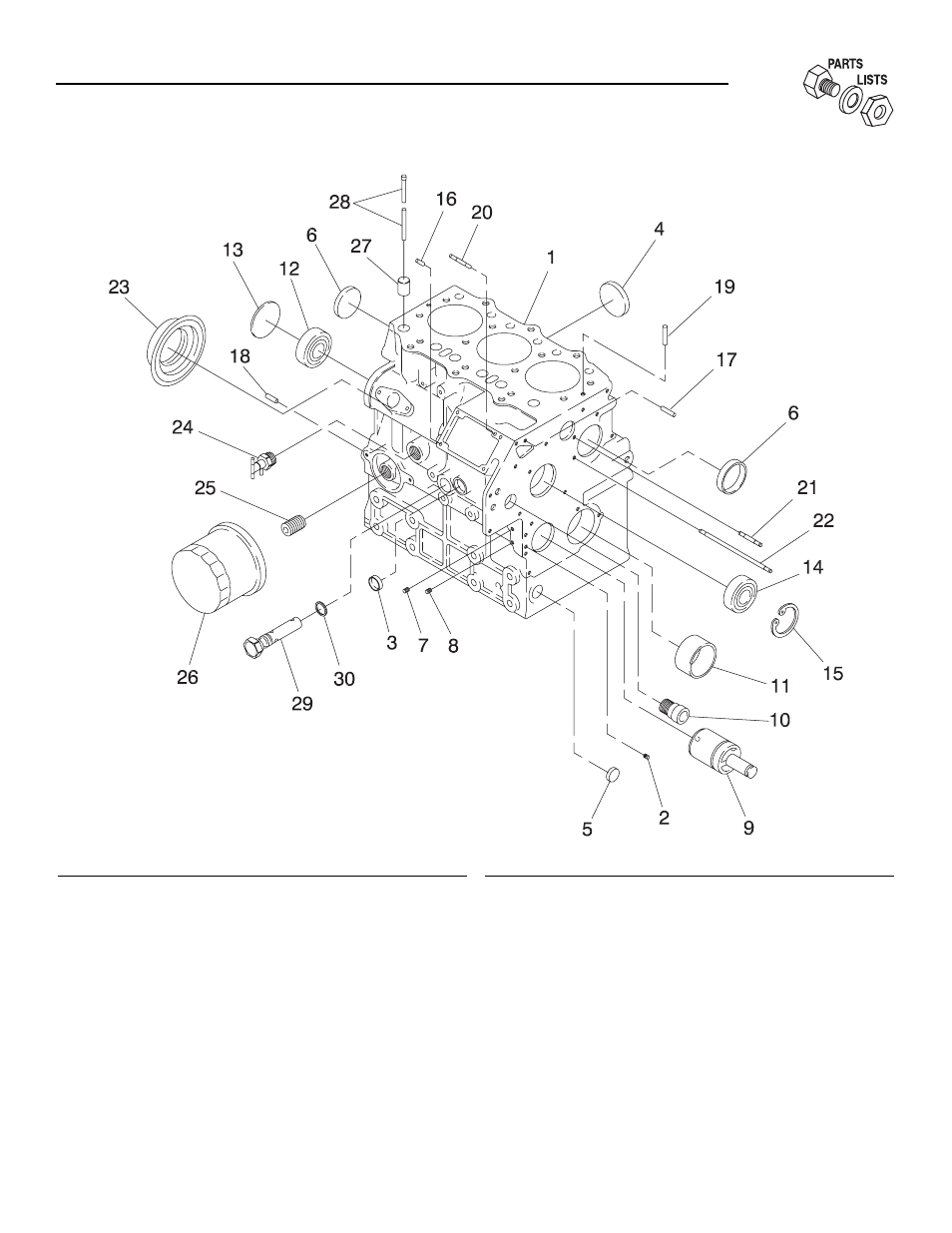

1.0 Liter Diesel Cylinder Block– Drawing No. 0F6227
ITEM
PART NO. QTY.
DESCRIPTION
1
0F28730100
1
COMPLETE CYLINDER BLOCK
2
0709390104
1
BLANK PLUG
3
0F28730101
1
SEALING CAP
4
0F2730102
2
SEALING CAP
5
0F2730103
1
SEALING CAP
6
0F2730104
2
SEALING CAP
7
0709390106
4
BLANK PLUG
8
0709390105
4
BLANK PLUG
9
0F28730105
1
COMPLETE IDLE GEAR SHAFT
10
0F28730106
1
PLUG
11
0F28730107
1
BUSHING - STANDARD
0F28730108
1
0.25mm U.S. BUSHING
0F28730109
1
0.50mm U.S. BUSHNG
12
0F28730110
1
BEARING
13
0709390113
1
EXPANSION PLUG
14
0709390114
1
BALL BEARING
15
0709390131
1
SNAP RING
16
0709390115
2
DOWEL PIN
ITEM
PART NO. QTY.
DESCRIPTION
17
0709390116
2
DOWEL PIN
18
0709390117
2
DOWEL PIN
19
0709390118
2
SPRING PIN
20
0F28730111
2
STUD BOLT
21
0F28730112
1
STUD BOLT
22
0F28730113
1
STUD BOLT
23
0709390123
1
OIL SEAL
24
0709390124
1
DRAIN COCK
25
0709390125
1
CONNECTOR
26
0709390126
1
OIL FILTER
27
0709390127
6
TAPPET
28
0709390128
6
PUSH ROD
29
0F28730115
1
RELIEF VALVE
30
0F28730219
1
O-RING
MM = MILLIMETER
U.S. = UNDERSIZE
