Model g5791/g5792 17-piece 1 ⁄
2
" impact Wrench and ratchet Kit -4 -
operations

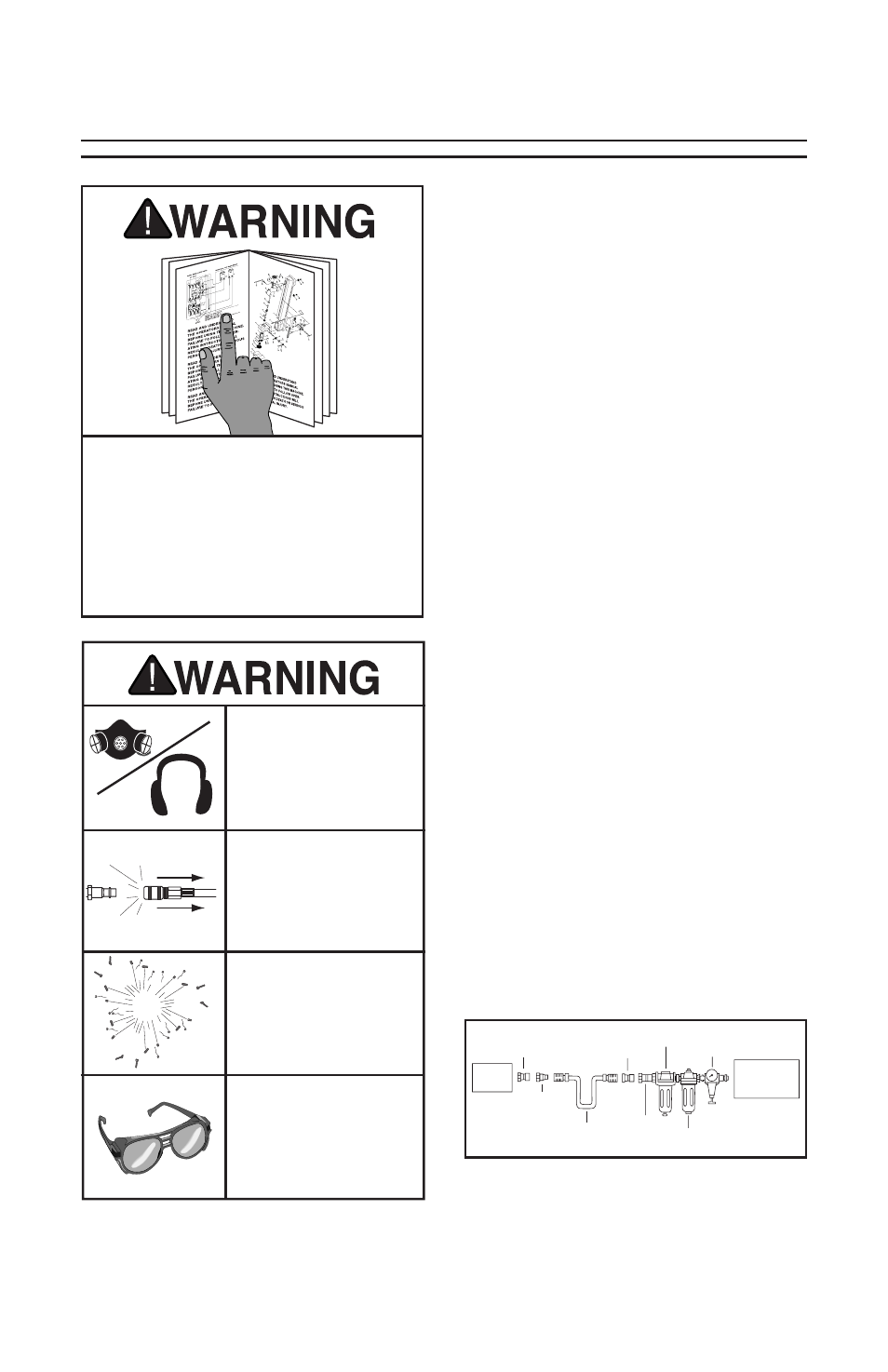

read the manual before operation.
become familiar with this tool, its
safety instructions, and its operation
before beginning any work. serious
personal injury may result if safety
or operational information is not
understood or followed.
impact Wrench
specifications
drive size ............................................... 1 ⁄
2
"
Bolt size Capacity ................... 5 ⁄
8
" or 16mm
no-load speed ........................ 7,000 rpM
Maximum torque .......................... 260 ft/lb
Air inlet size ...................................
1 ⁄
4
" npt
Air Consumption ........................... 4.5 CFM
operating pressure ......................... 90 psi
Maximum operating pressure ....... 120 psi
Weight .................................................3 lbs
ratchet specifications
drive size ............................................... 1 ⁄
2
"
no-load speed ........................... 160 rpM
Maximum torque ............................ 50 ft/lb
Air inlet size ...................................
1 ⁄
4
" npt
Air Consumption .............................. 4 CFM
operating pressure ......................... 90 psi
Maximum operating pressure ....... 120 psi
Weight ..............................................1.5 lbs
accidental
start hazard!
disconnect before
service or tool
changes.
air pressure
hazard!
never exceed 120
psi.
lung/ear
inJury hazard!
Wear protective
equipment when
using this tool.
eye inJury
hazard!
Wear protective
equipment when
using these tools.
the impact wrench and ratchet requires 90
psi to operate correctly. to improve air tool
lifespan, use the filter/lubricator/regulator
setup shown in
figure 2, or install the
included in-line lubricator dircectly to the
air line.
Quick
Connector
Quick
Coupler
Air Hose
Quick
Coupler
Quick
Connector Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
figure 2. installed filter lubricator
regulator.
air supply
