9

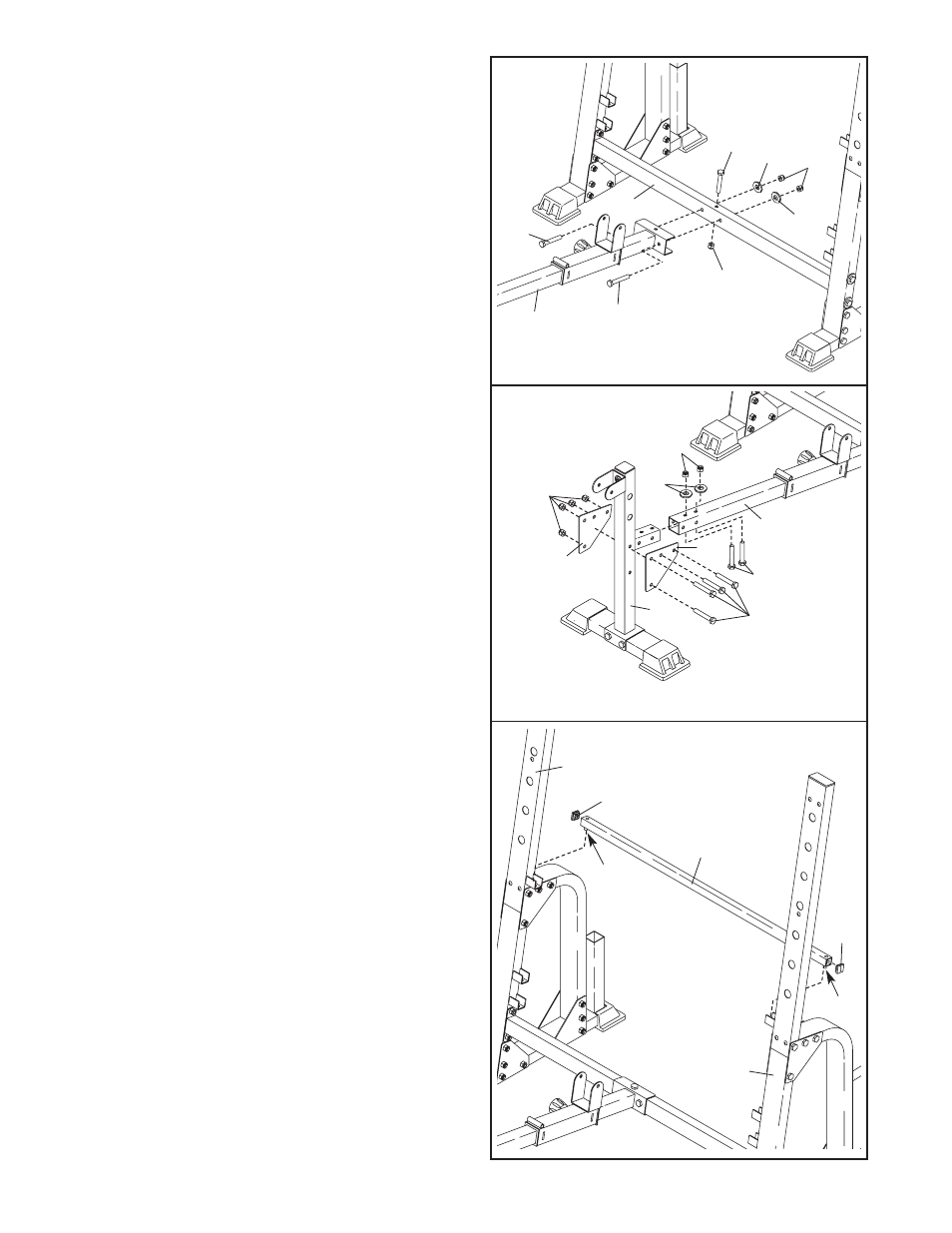

10. Attach the Bench Frame (8) to the Crossbar (5)
with two M8 x 55mm Bolts (52), one M8 x 70mm
Bolt (74), two M8 Washers (63), and three M8
Nylon Locknuts (64). Do not tighten the
Locknuts yet.
11. Attach the Bench Frame (8) to the Front Leg (12)
with two Bench Support Plates (31), four M8 x
60mm Bolts (49), two M8 x 52mm Bolts (59), two
M8 Washers (63), and six M8 Nylon Locknuts
(64). Do not tighten the Locknuts yet.
10
12
64
64
63
59
8
31
31
49
11
63
5
63
74
64
64
52
52
8
12. Press two 25mm x 40mm Inner Caps (75) into
the Adjustment Tube (9).
Set the pins on the Adjustment Tube (9) in a set
of brackets on the Uprights (3, 4).
Tighten the M8 Nylon Locknuts (64) used in
steps 1–11.
12
75
Pin
Pin
75
9
3
4
