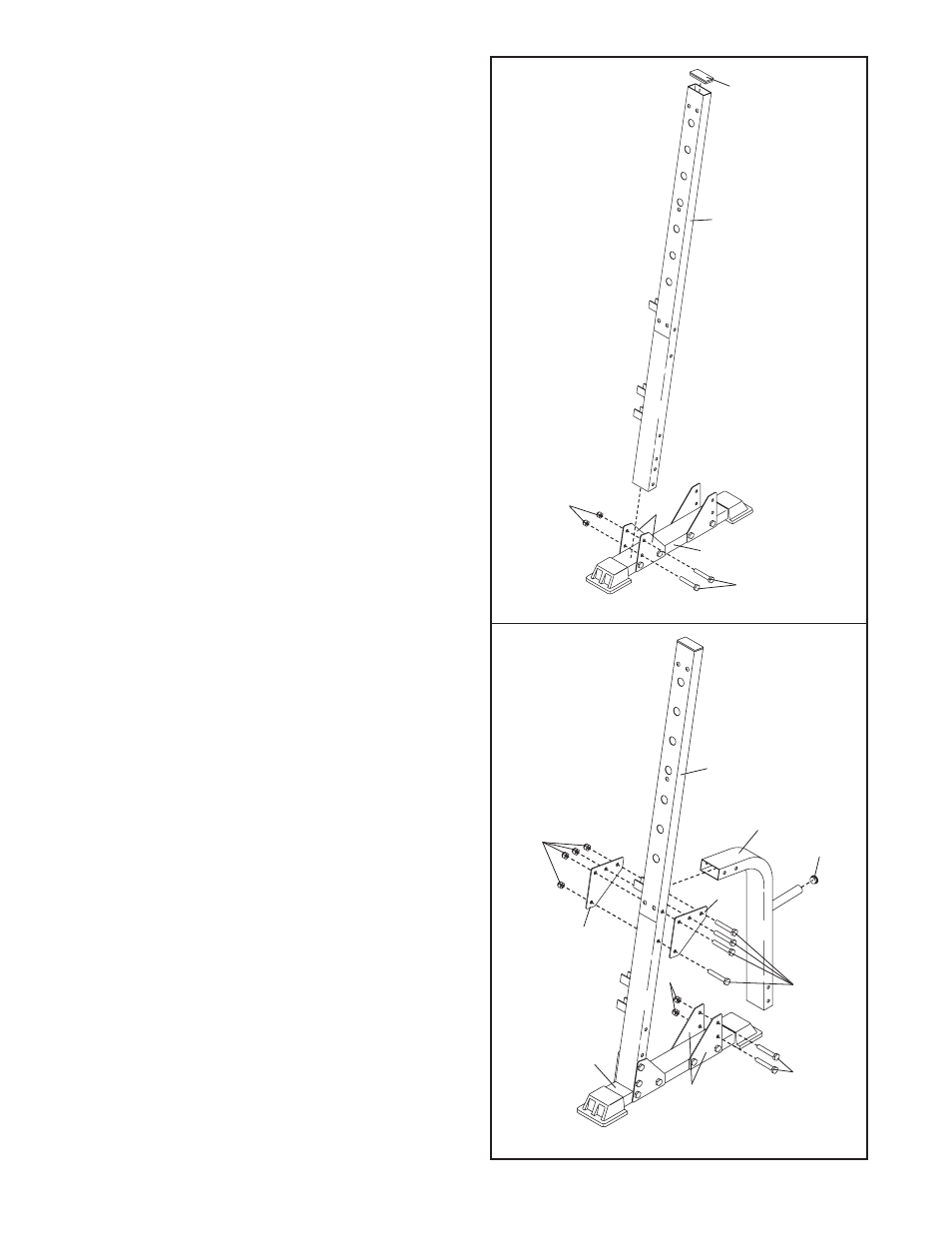

3. Press a 38mm x 75mm Inner Cap (37) into the
top of the Left Upright (3).
Attach the Left Upright (3) to the Left Stabilizer
(1) with the Front Support Plates (29), two M8 x
90mm Bolts (48), and two M8 Nylon Locknuts
(64). Do not tighten the Locknuts yet.
4. Press a 25mm Round Inner Cap (70) into the Left
Rear Support (6).
Attach the Left Rear Support (6) to the Rear
Support Plates (30) on the Left Stabilizer (1) with
two M8 x 90mm Bolts (48), and two M8 Nylon
Locknuts (64). Do not tighten the Locknuts yet.
Attach the Left Rear Support (6) to the Left
Upright (3) with two Rear Support Plates (30),
four M8 x 90mm Bolts (48), and four M8 Nylon
Locknuts (64). Do not tighten the Locknuts yet.
