Magnum DS80F & DS80C Dual-speed Stackable Hubs Installation and User Guide (05/04)
11

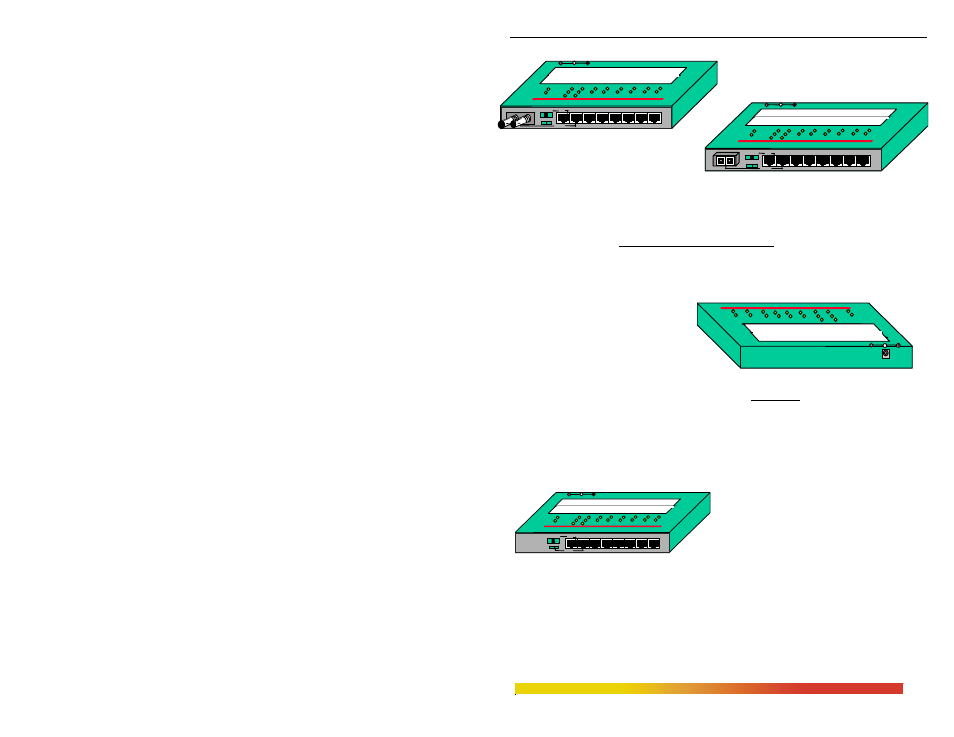

2.2.1 Magnum DS80F chassis with fiber ST or SC (mm or sgl. mode) connector
Tx Rx UPLINK
F H
= X
2SW
UPLINK 3 4 5 6 7 8 1SW
Magnum DS80 Dual Speed
Personal Hub
PORTS 1SW 2SW 3 4 5 6 7 8
Speed
Link/Act
F/H
Power
Error
GARRETT
Fiber ST above, fiber SC at right
12V, 1.5Amps
Tx Rx UPLINK
F H
= X
2SW
UPLINK 3 4 5 6 7 8 1SW
Magnum DS80 Dual Speed
Personal Hub
PORTS 1SW 2SW 3 4 5 6 7 8
Speed
Link/Act
F/H
Power
Error
GARRETT
12V, 1.5Amps
F H
The Magnum DS80F chassis
houses one main PC board. The power supply unit is external. The front side of the chassis has
eight RJ-45 twisted-pair ports and one 100Mbps fiber port. Port #2SW always supports fiber
ports only and the RJ-45 connector is inoperative at all times. LEDs to indicate operating status
of all ports are mounted on the top. There are power (PWR) and ERROR (self-test at power up
failed) indicators for the unit. For each port, there are Link and Activity (LINK/ACT) LEDs
indicating traffic, and speed (ON for
100Mbps). Switched ports 1SW and
2SW have full-half (F-H) duplex
indicators.
The DC power plug connector
or “jack” is in the left rear of the chassis. Rear View Magnum DS80-Series
Magnum DS80F Dual Speed
Personal Hub
PORTS 1SW 2SW 3 4 5 6 7 8
Speed
Link/Act
F/H Power
Error
GARRETT
12V, 1.5Amps
DC 12V
The external power supply is 5VDC at either 95 - 125vac at 60 Hz for “-d” models or 120-
250vac at 50Hz for “-i” models that have IEC power cable connector in the external power
supply housing.
2.2.2 Magnum DS80C chassis with all RJ-45 Copper ports
The Magnum DS80C chassis houses
one main PC board. The power supply unit is
external. The front side of the chassis has eight
RJ-45 twisted-pair ports. The 1SW and 2SW
ports are switched ports with selectable
Fullfixed- and Auto-negotiation (FF-A) capability. See section 4.4.
Tx Rx UPLINK
F H = X
2SW
UPLINK 3 4 5 6 7 8 1SW
Magnum DS80 Dual Speed
Personal Hub
PORTS 1SW 2SW 3 4 5 6 7 8
Speed
Link/Act F/H
Power
Error
5VDC, 2Amps
GARRETT
LEDs to indicate operating status of all ports are mounted on the top. There are power
(PWR) and ERROR (self-test at power up failed) indicators for the unit. For each port, there are
Link and Activity (LINK/ACT) LEDs indicating traffic, and speed (ON for 100Mbps). Switched
ports 1SW and 2SW have full/half (F/H ON for full duplex) duplex indicators.
