G9908 3 Function Hammer Drill

-4

-

GETTING STARTED

Control Location

Refer to Figure 1 for the location of the key

components and controls of the machine.

These controls are called out later in the

manual for their specific use when operat-

ing. Make sure you are familiar with the

controls before using the Hammer Drill.

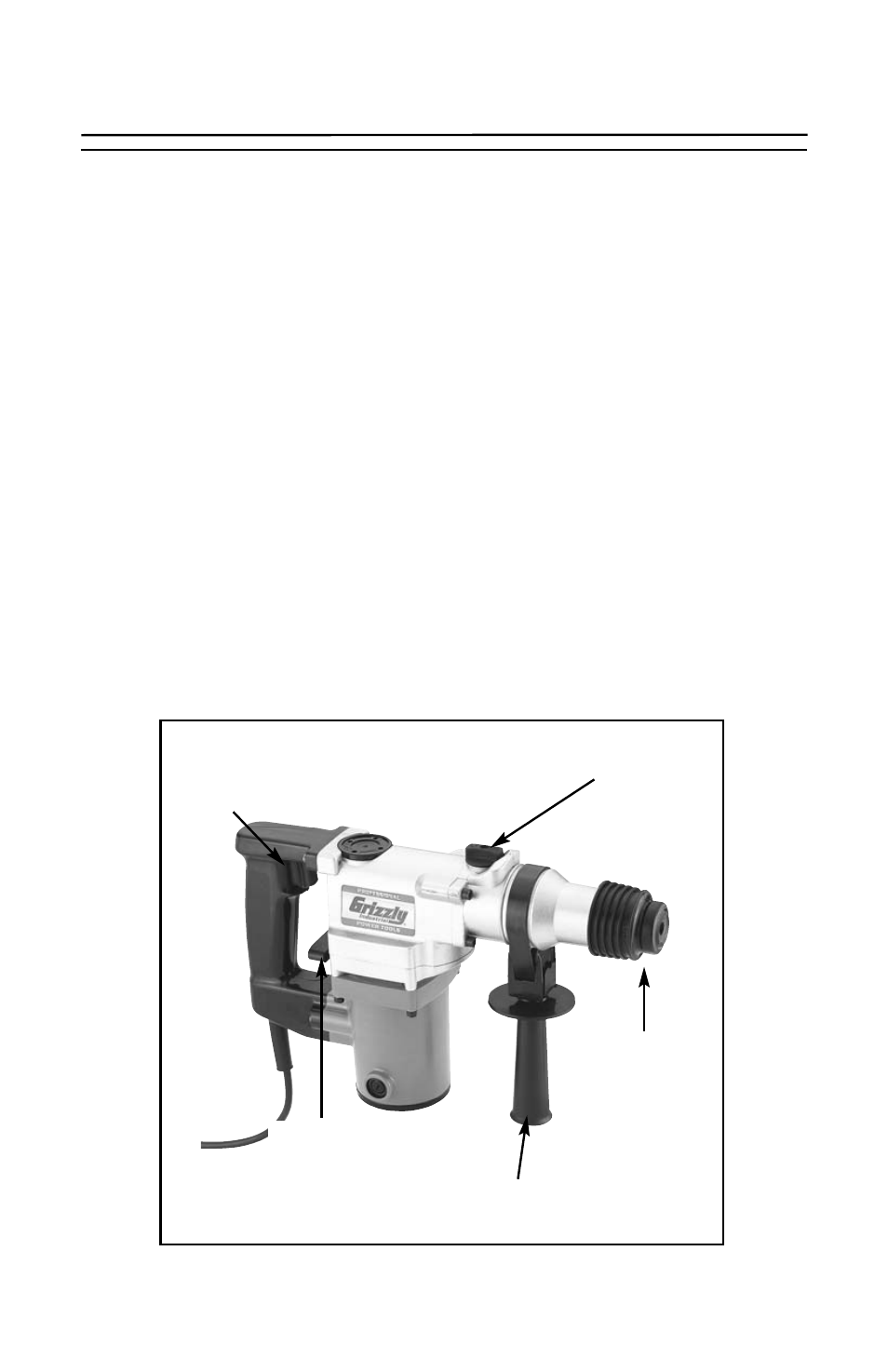

Fig 1. Location of controls.

Locking Sleeve

Auxiliary
Handle

Back Switch

Lever

Front Switch

On/Off Trigger

Switch

Specifications

Model number: G9908
Drilling speed: 500 RPM
Hammer rate: 2750 BPM
Voltage: 110/120
Frequency: 60Hz
Power:

1

2

H.P.

Weight: 11 lbs
Max drilling capacity:

7

8

" concrete

1

2

" steel

1

3

8

" wood

Contents

Your Model G9908 3 Function Hammer
Drill should come with:
1. Rugged plastic carrying case
2. Slip-on dust guard
3. Auxiliary handle
4. Hammer chisel and spike
5. 22mm drill bit
6. 16mm drill bit
7. 10mm drill bit
8. Depth gauge rod
9. Container of lubrication
