-2-
T10002 & T10003 Shelf Units T10002 & T10003 Shelf Units
-3-
3. Now attach a third vertical rail to the opposite
side of the 19" shelf support installed in Step
2, as shown in Figure 4.
4. Repeat Steps 2 and 3 for the opposite side.
5. Attach a fourth 48" shelf support as shown in
Figure 5.

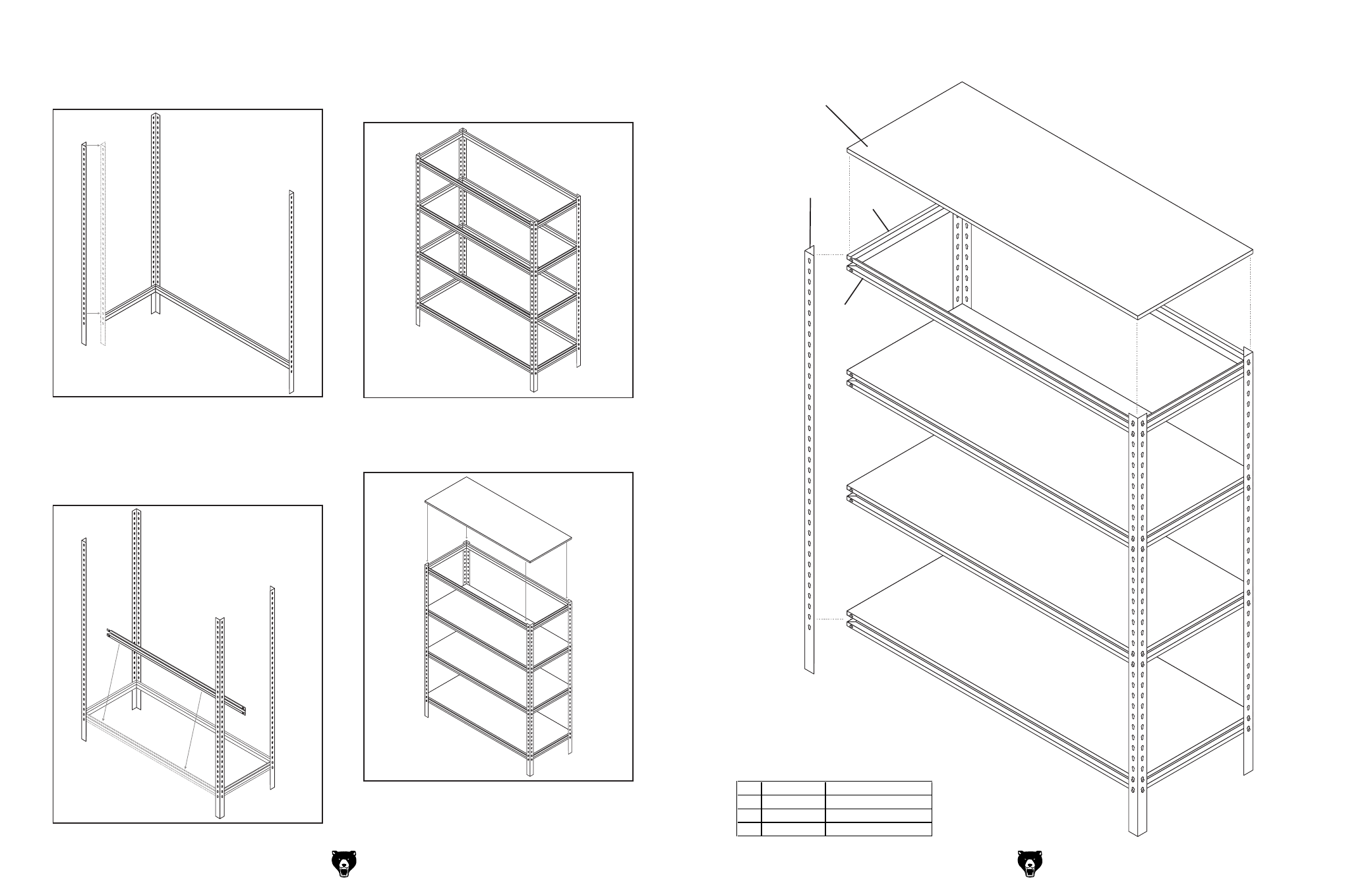

Figure 4. Attaching a third rail.
Figure 5. Attaching fourth shelf support.
Figure 6. Repeating steps 1-5.
6. Repeat this process for the remaining shelf
supports, placing them at the desired height,
making sure that the shelf supports for a given
shelf are all at the same height (
Figure 6).
Figure 7. Placing the shelves
T10002 Parts Breakdown
1
2
3
4
T10002 Parts List
If you need help with your new item, call our Tech
Support at: (570) 546-9663.
REF PART # DESCRIPTION
1 PT10002001 SHELF 48" X 19"
2 PT10002002 VERTICAL RAIL 60"
3 PT10002003 SHELF SUPPORT 19"
4 PT10002004 SHELF SUPPORT 48"
7. Finally, place the shelves on the shelf supports
from the bottom up as shown in Figure 7.
