1 2 3 4 5 6 7 8

Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table
below when fi eld terminating cable for use with Gefen products.

Pin

Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown

12

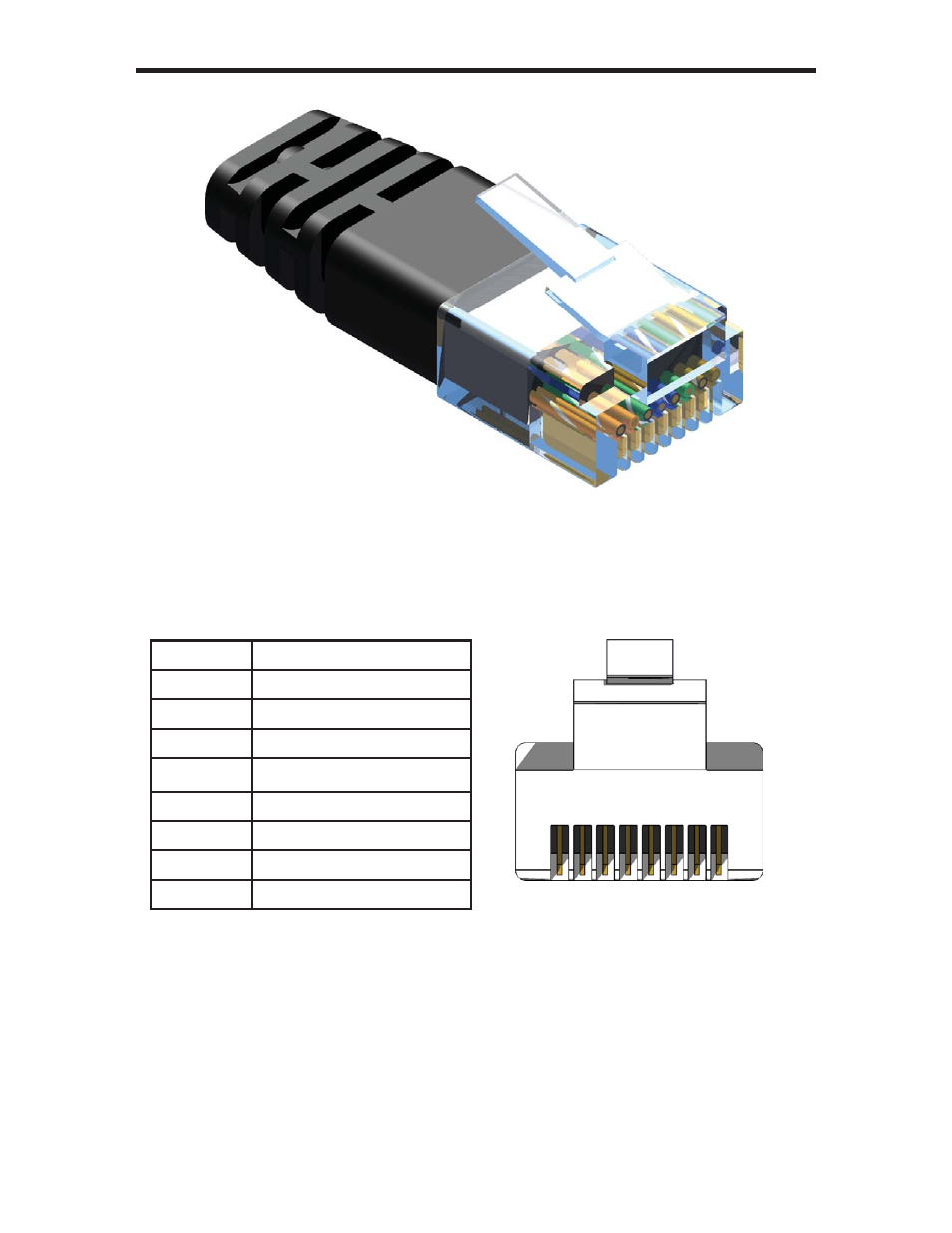

NETWORK CABLE WIRING DIAGRAM

CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling.

It is recommended to use one continuous run from one end to the other. In some
cases, connecting through a patch might not work.
