Page 2

LED

(Red)

BTS-400-ANSI,300,486

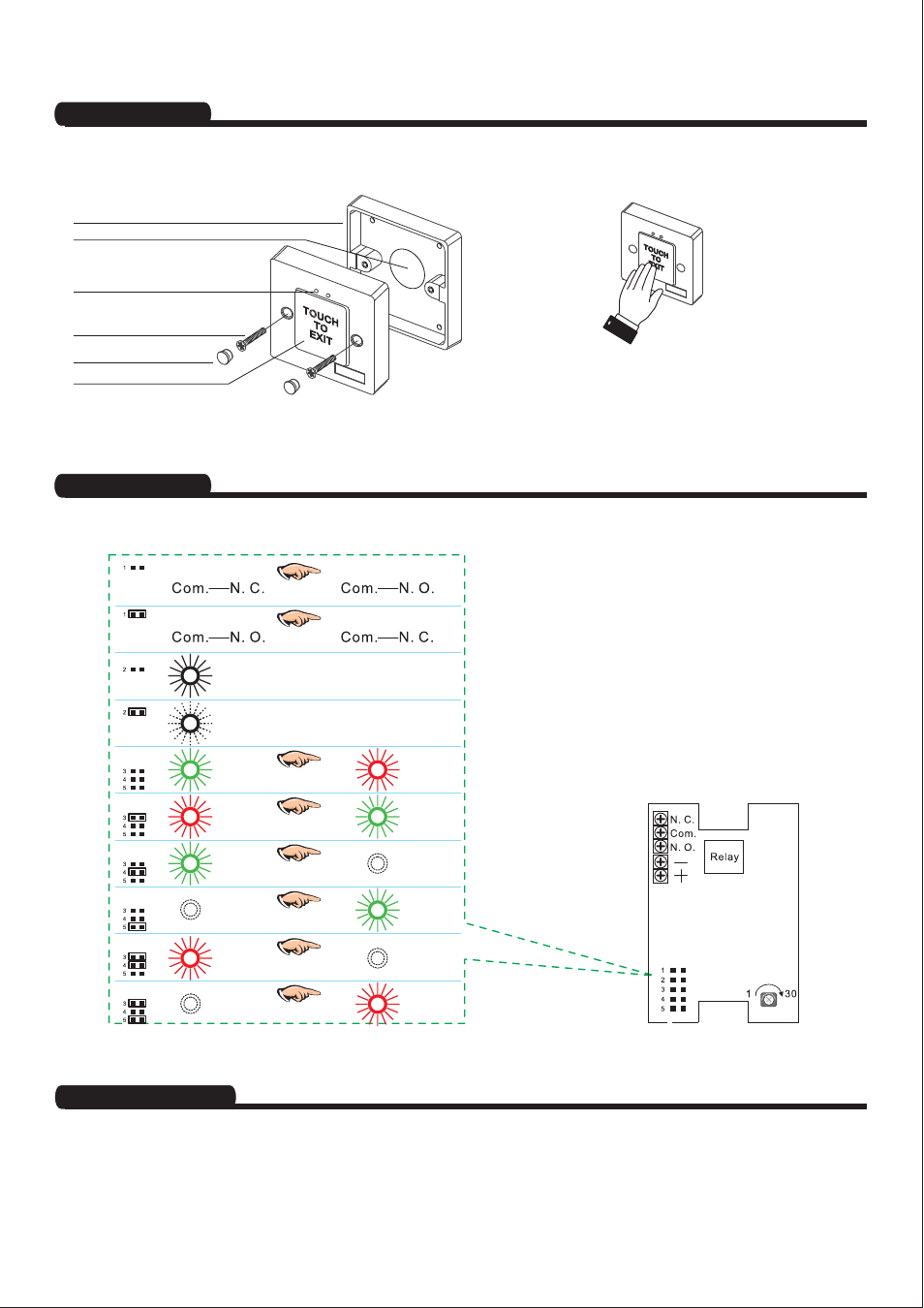

Illustration

JP setting

Warranty

BTS Touch Exit Button

Base
Slot hole

Vandal resistant screw

Stopper

Touch panel

The relay will send the signals from N.C.

into N.O. contact after your finger or a

metal object touches the touch panel.

Time delay can be adjusted from 1 to 30

seconds.

Relay output

(Touch)

Relay output

(Light stay on)

(Light flash)

(Green)

(Touch)

(Green)

(Off)

(Red)

(Off)

(Red)

(Green)

(Off)

(Green)

(Off)

(Red)

Relay contact output

(dry contact)

12~24 VDC power input

JP setting

Relay Timer

(Sec.)

The product is warranted against defects in material and workmanship while used in normal service for

a period of 1 year from the date of sale to the original customer. The GEM policy is one of continual

development and improvement; therefore GEM reserves the right to change specifications without notice.
