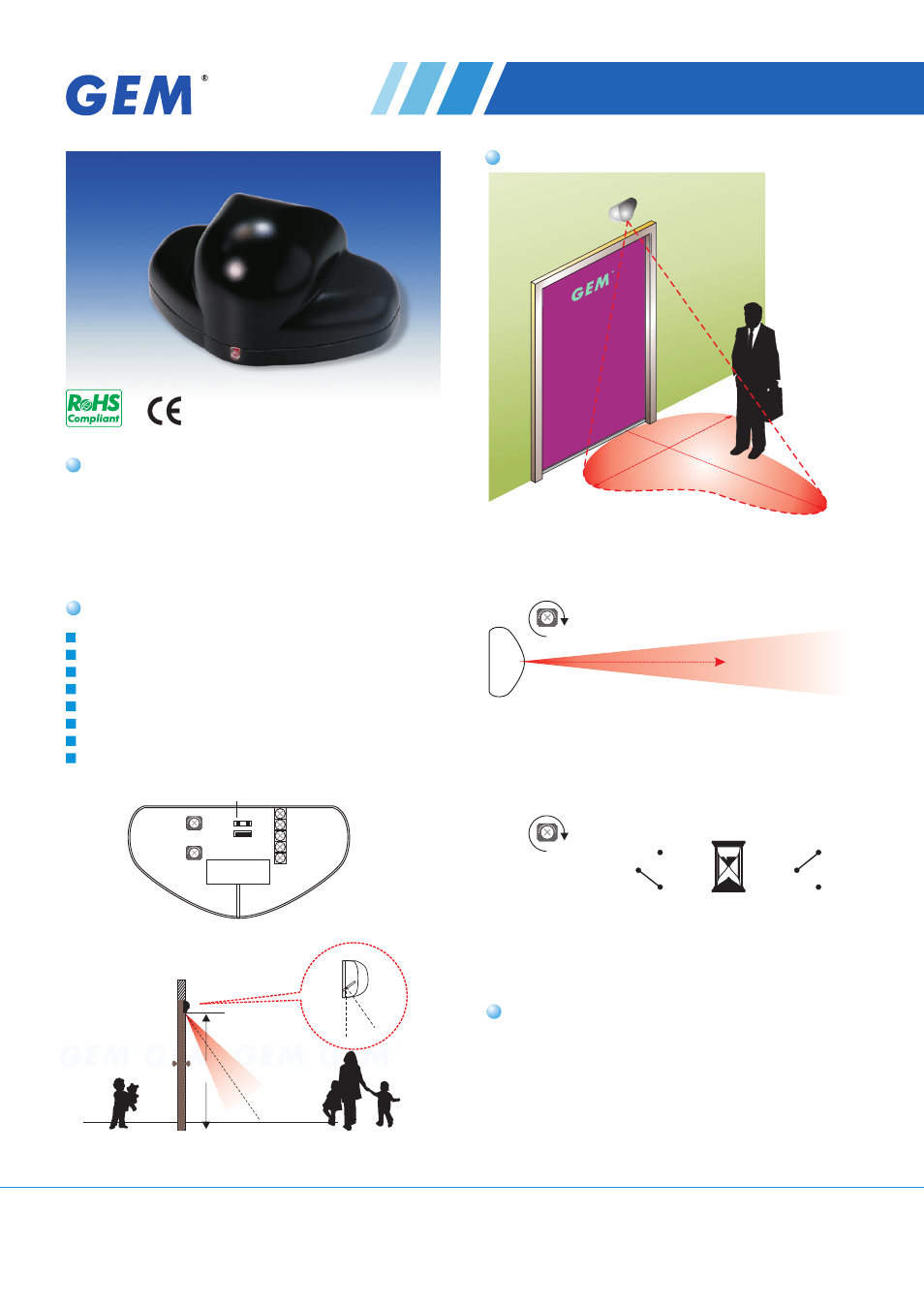

Gianni Industries GEM MCS-425 - Manual

Operating Voltage: 12~24VAC/DC
Maximum current: 80 mA
Frequency: 10.525 GHz
Relay rating: 3A/120VAC , 3A/24VDC
Relay strike time: 0.5 ~ 4 seconds
Proximity range:7M
Operating Temperature Range: -20ºC ~ +55ºC
Dimensions: 122.5(W) * 72(H) * 63 (D)mm
Statement
Specification
MCS-425
Microwave sensor switch
MCS-425 microwave sensor switch is a
detection component. It is very sensitive and it
can emit microwave energy to detect movement.
The detection field is wide (0~ 7 meters), and the
performance is extremely stable and reliable.
GIANNI INDUSTRIES, INC.
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-MCS-425 Ver. G Published on 2011.03.22
A
B
Turn (A) clockwise to increase the antenna detection range, or
counter-clockwise to decrease the antenna detection range.
Turn (B) clockwise to increase the relay actuation time, or the
counter-clockwise to decrease the relay actuation time.
0.5 4
COM. COM.
N. C. N. C.
N. O. N. O.
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
Application
Max
. 4.5
met
ers
0 ~ 7
met
ers
A
B
C
LED
+ 12VAC/DC
-
N.C
Com.
N.O.
Jumper
N.C.
N.O.
35
35
230
cm
(Indoor) (Outdoor)
EC872507
