Model H8115/H8117 Spray Gun -16-

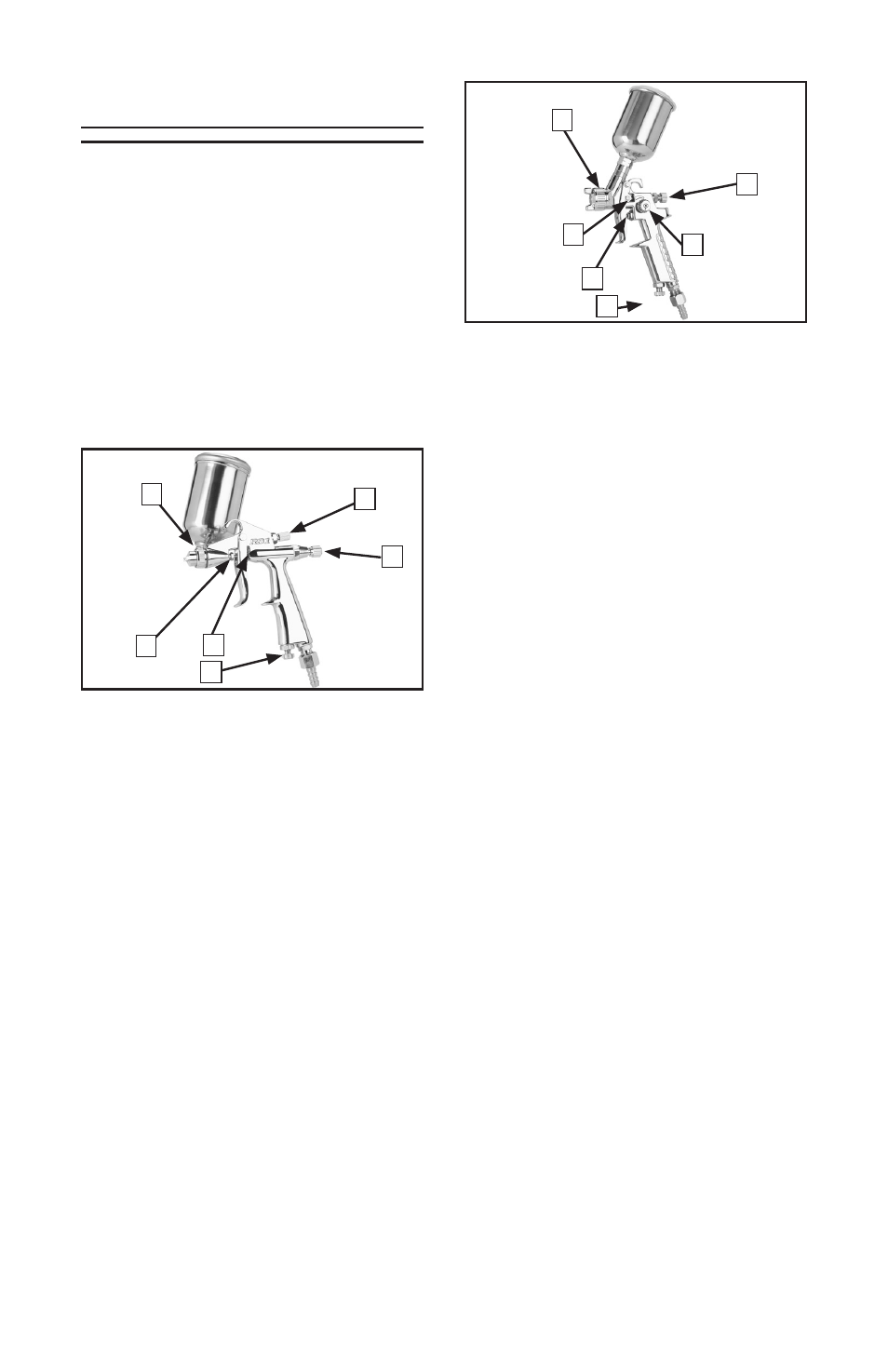

Lubrication
Lubricate the following areas on the Model
H8115 (
Figure 17) and Model H8117
( Figure 18) with spray oil, grease, or
petroleum jelly after cleaning.
A. Atomizing Cap Threads
B. Air Valve Packing
C. Trigger Pin
D. Air Flow Control Valve
E. Pattern Control
F. Fluid Control Knob
Figure 18. Lubrication points, Model
H8117.
A
B
C
D
E
F
After each cleaning apply a thin film of
petroleum jelly to the needle spring before
reassembling.
Figure 17. Lubrication points, Model
H8115.
A
B C
D
E
F
