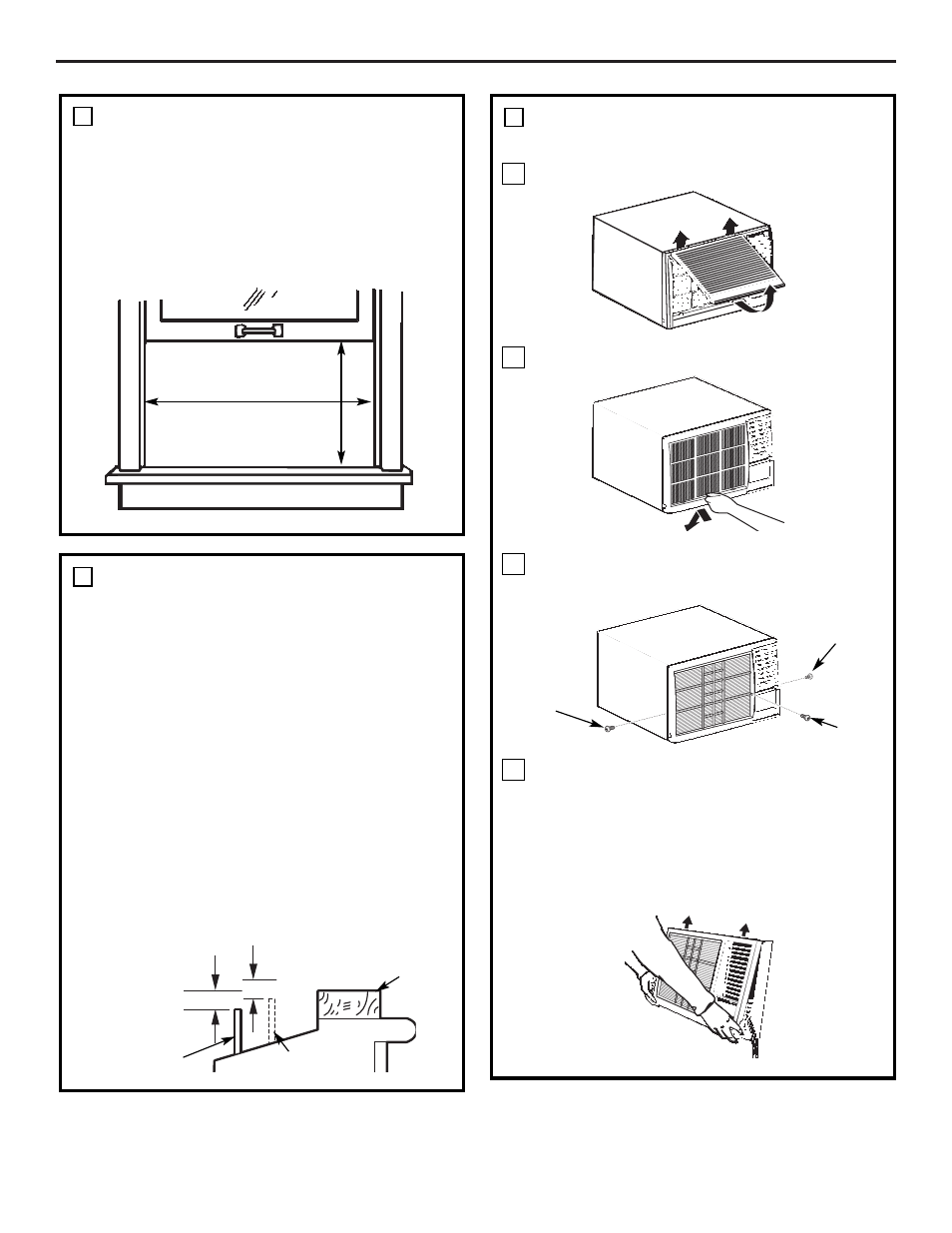

Window Installation Instructions

WINDOW REQUIREMENTS

These instructions are for a standard

double-hung window. You will need to
modify them for other types of windows.

All supporting parts must be secured

to firm wood, masonry or metal.

The electrical outlet must be within

reach of the power cord.

1

18

″ min.

30

″ to 41″

(With accordion panels)

REMOVE THE AIR CONDITIONER
FROM THE CASE

Remove the inlet grille.

Remove the filter.

Remove the painted screws from each side
and the screw in the front. Save to reinstall
later.

Grasp the lower corners of the grille frame
while pressing in on the case side tabs with
your finger tips. Pull out to release and lift
it up.

NOTE: Do not pull the bottom edge toward
you more than 3

″ or you may damage the

tabs of the grille.

D

C

B

A

3

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the
air conditioner to tilt toward the outside,
and will keep it from draining properly.
To adjust for this, attach a piece of wood
to the stool.
WOOD PIECES–
WIDTH: 2

LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the stool to
make it 1/2

″ higher than the top of the

storm window frame or the vinyl frame.
Attach securely with nails or screws
provided by the installer.

2

1/2

″ higher

than storm
window
frame

Storm window
frame

Wood

Stool

1/2

″ higher

than vinyl frame
(on some windows)

Vinyl frame

9

Screw

Screw

Screw
