Model h6329 2 1 ⁄
2
gallon paint tank -6 -
tank assembly
to assemble the paint tank:
1. open the lid and remove the hardware
shipped with the tank.
2. install the four caster assemblies with
the hex nuts and washers, as shown in
figure 3.
5. Connect the 1 /
4
" push-on hose fittings to
your air supply hose and onto the inlet
fitting on the regulator (
figure 4).

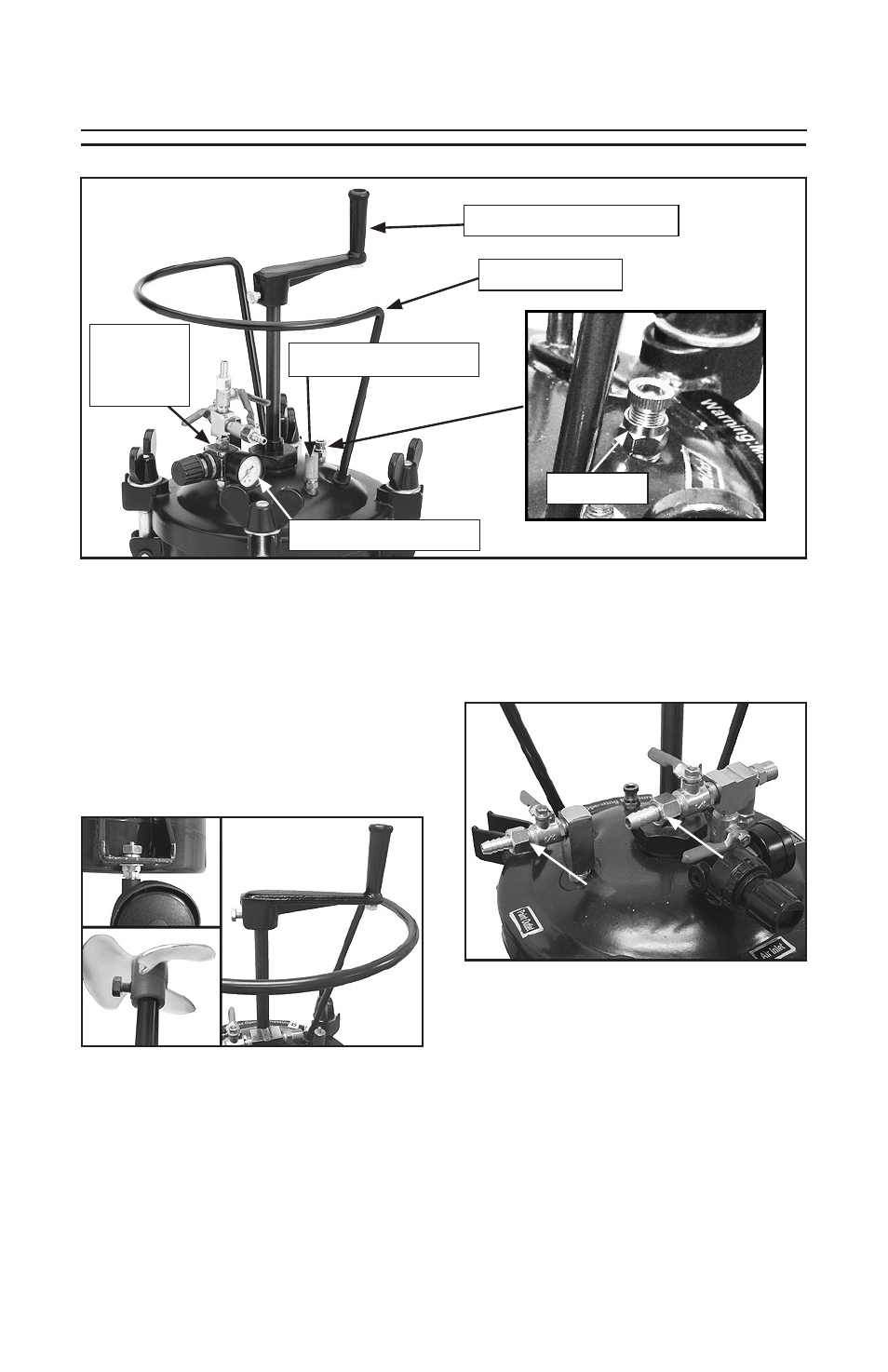

figure 2. Controls and features.
tank pressure gauge
tank
pressure
regulator
3. invert the tank lid, slide the propeller
onto the shaft, and snug the hex bolt
in place (
figure 3).
4. place the hand crank onto the shaft,
and snug the hex bolt in place ( figure
3).
figure 3 . Assembly items.
figure 4 . spray gun fittings installed.
vent valve
Mixing handle and Crank
Carrying handle
pressure relief valve
