110153 Specification Created 6/08
ZIF360NX
GE Monogram ® 36" Built-In Custom All-Freezer
Dimensions and Installation Information
Listed by
Underwriters
Laboratories
729Dia42
Overlay
Panel
1/4"
Backer
Panel
Door/
Drawer
.10"
Spacer
194Dia_65
Spacer Panel
Overlay Panel
Backer Panel
Optional Accessories
Order these accessories from your Monogram supplier.
ZKHPSS2, Professional Handle Kit
Professional stainless steel tubular handle designed to fit 3/4"
overlay panels. Note: Kit includes one Professional handle,
31" long.
ZKHSS2 Tubular Handle Kit
Monogram stainless steel tubular handle designed to fit 3/4"
overlay panels. Note: Kit includes two tubular handles, 62-3/8",
3/4" diameter.
ZUG2 Unified Grille Panel Kit
For side-by-side installation of trimmed units. This kit provides
for a unified custom grille panel to span the width of two units
using a 1/4" framed or 3/4" overlay panel.
ZPBS360, Black and ZPSS360 Stainless Steel Accessory Panel Kits
These accessory panels are cut to size and ready to install.

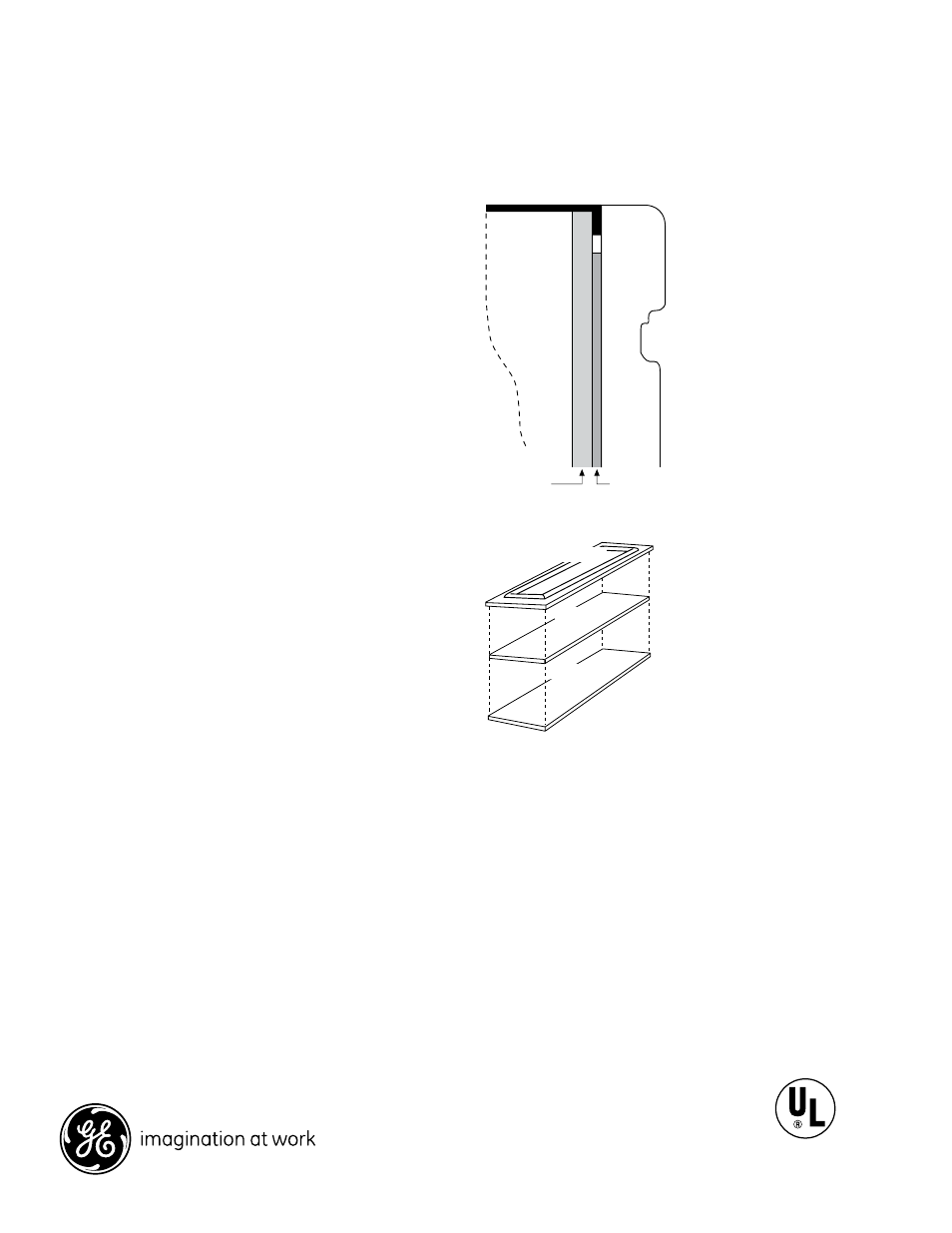

All-Refrigerator, All-Freezer 3/4" Overlay Panel
Overlay panels may be installed on trimmed units.
The overlay panel must be secured to a 1/4" thick backer
panel which slides into the trim. A 0.10" thick spacer panel
must be placed between the custom and backer panel.
Assemble overlay panels with glue and screws.
• Center spacer panel on the backer panel left to right and
top to bottom. Secure the panels with glue.
• Center the spacer/backer panel on the overlay panel and
secure with glue and screws. Screws must be countersunk
into the backer panel.
Note: Left-to-right offset is not always equal to top-to-bottom
offset.
