ZIF360NX
GE Monogram ® 36" Built-In Custom All-Freezer

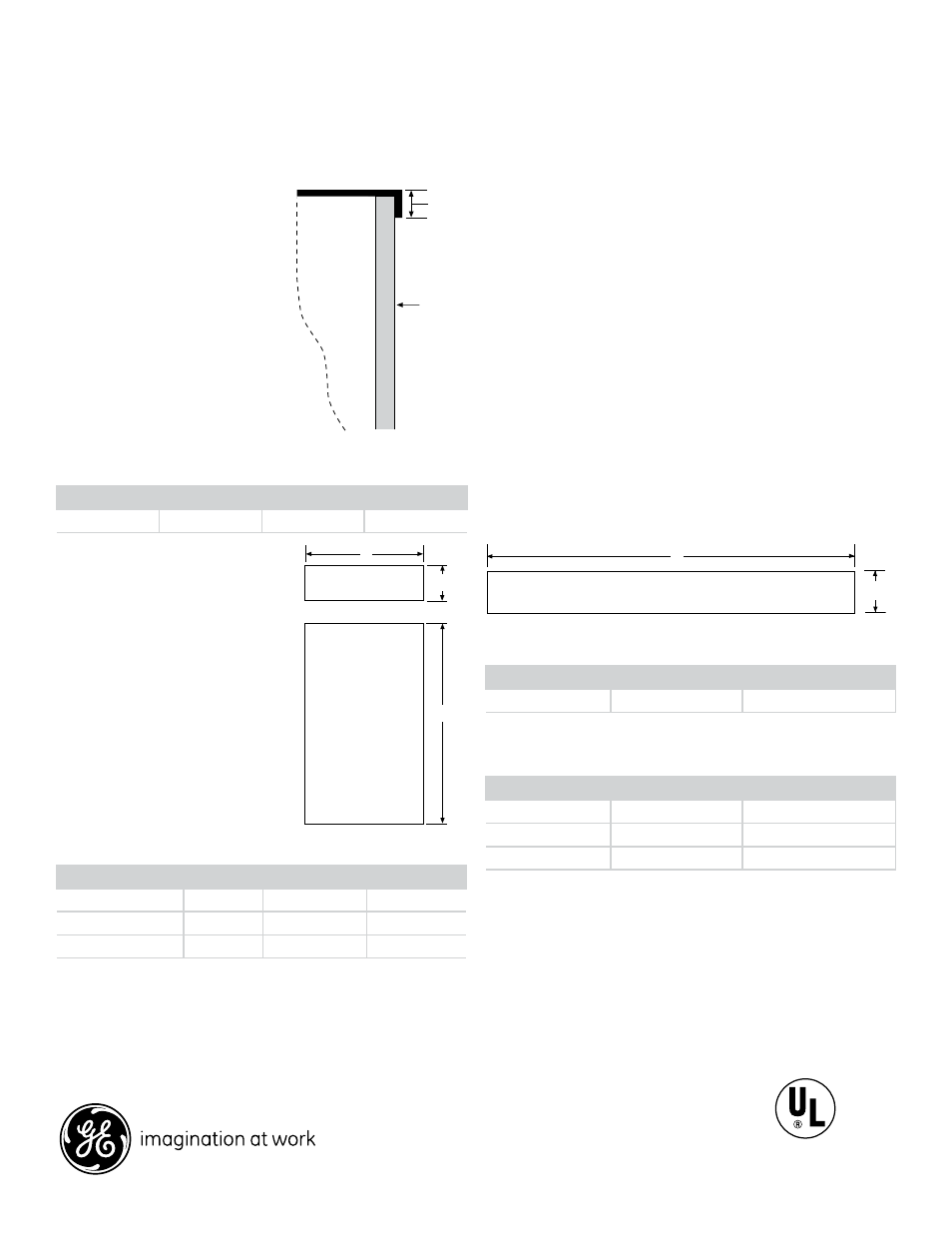

Dimensions and Installation Information
Listed by
Underwriters
Laboratories
729Dia84
1/4"
Panel
Door/
Drawer
5/16"
Trim
Reveal
All-Refrigerator,
All-Freezer 1/4" Framed
Panel
If you choose to install framed
panels, they must be cut to the
dimensions shown. The panels
will slide into the frame on the
door and grille.
If the panel is less than 1/4" thick,
it must be backed up with filler
material or foam tape to improve
the fit.
Door
Panel
zif_zir360nx_panel_dim
C
A
B Grille Panel
IMPORTANT NOTE: Maximum weight
for the door panel is 67 pounds.
Maximum total weight for the
assembled grille panel is 11 pounds.
729Dia85
A
B Grille Panel
1/4" Framed Panel Dimensions
A (Width) B (Grille Height) C (Door Height)
Framed Panel 33-7/8" 8-7/8" 69-5/16"
3/4" Overlay Panel Dimensions
A (Width) B (Grille Height) C (Door Height)
1/4" Backer Panel 33-7/8" 8-7/8" 69-5/16"
0.10" Spacer Panel 32-1/2" 7-5/8" 67-15/16"
3/4" Overlay Panel 34-1/8" 9" 69-9/16"
ZUG2 Grille Panel Dimensions
The ZUG2 unified grille panel kit provides for the installation of
a framed or overlay grille panel.
Panel Dimensions
A (Width) B (Grille Height)
1/4" Framed Panel 69-7/8" 8-7/8"
Panel Dimensions
A (Width) B (Grille Height)
1/4" Framed Panel 69-7/8" 8-7/8"
0.10" Spacer Panel 68-1/2" 7-5/8"
3/4" Overlay Panel 70-1/8" 9"
IMPORTANT:
Grille panel maximum total weight is 25 lbs..
