Product Overview

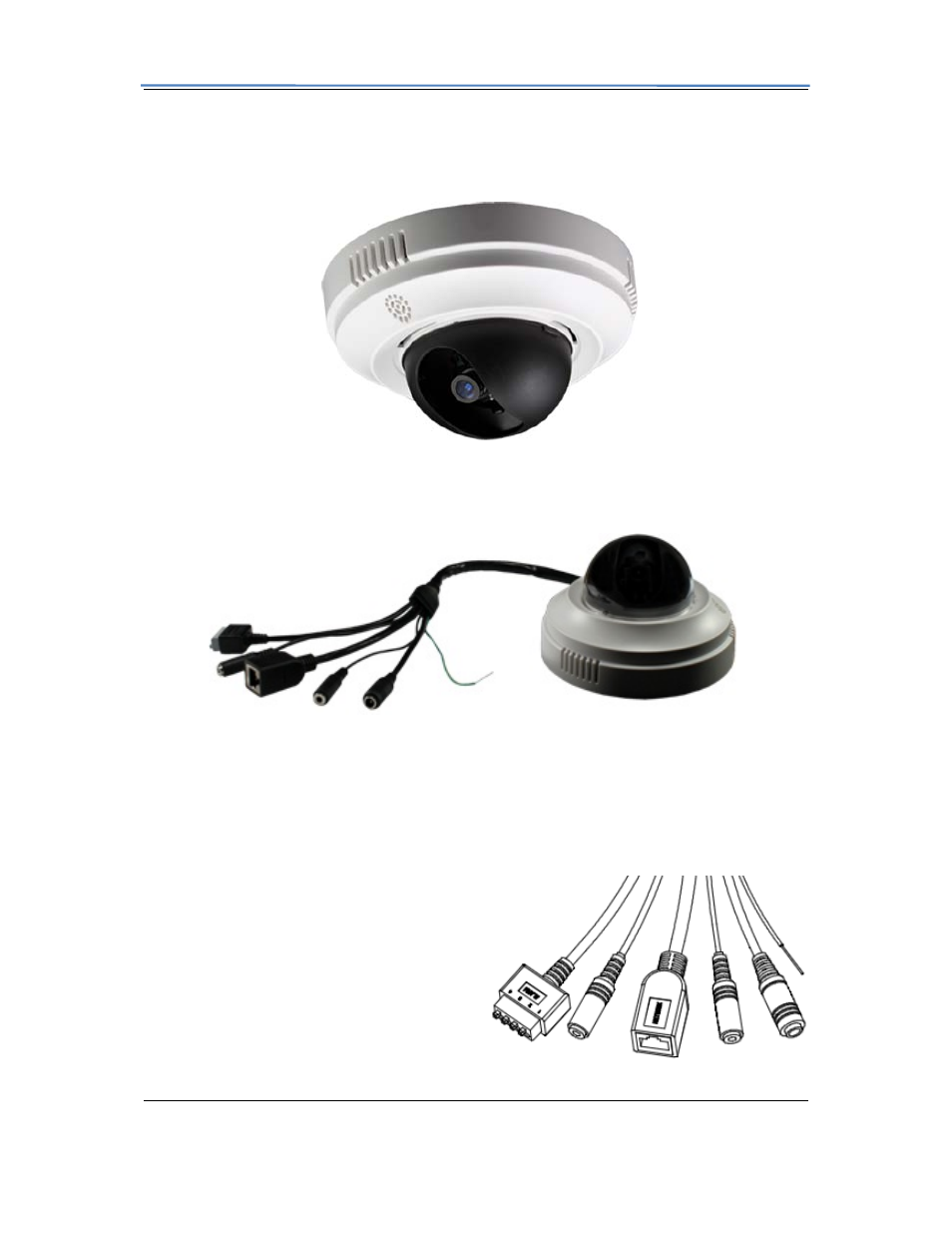

GXV3611 Overview
GXV3611 Side View
GXV3611 Sample Connection Diagram
Connectors and cables
PINs –Alarm In connector, and Alarm out
connector.
AUDIO IN – 3.5mm port for audio input
devices (microphone, pickup and etc.).
NETWORK – 10/100 Switch LAN port for
connecting to Ethernet. The indicator will be
steady for connection and flashing for
network activity.
AUDIO OUT – 3.5mm port for audio output
devices (speakers, and etc.).
