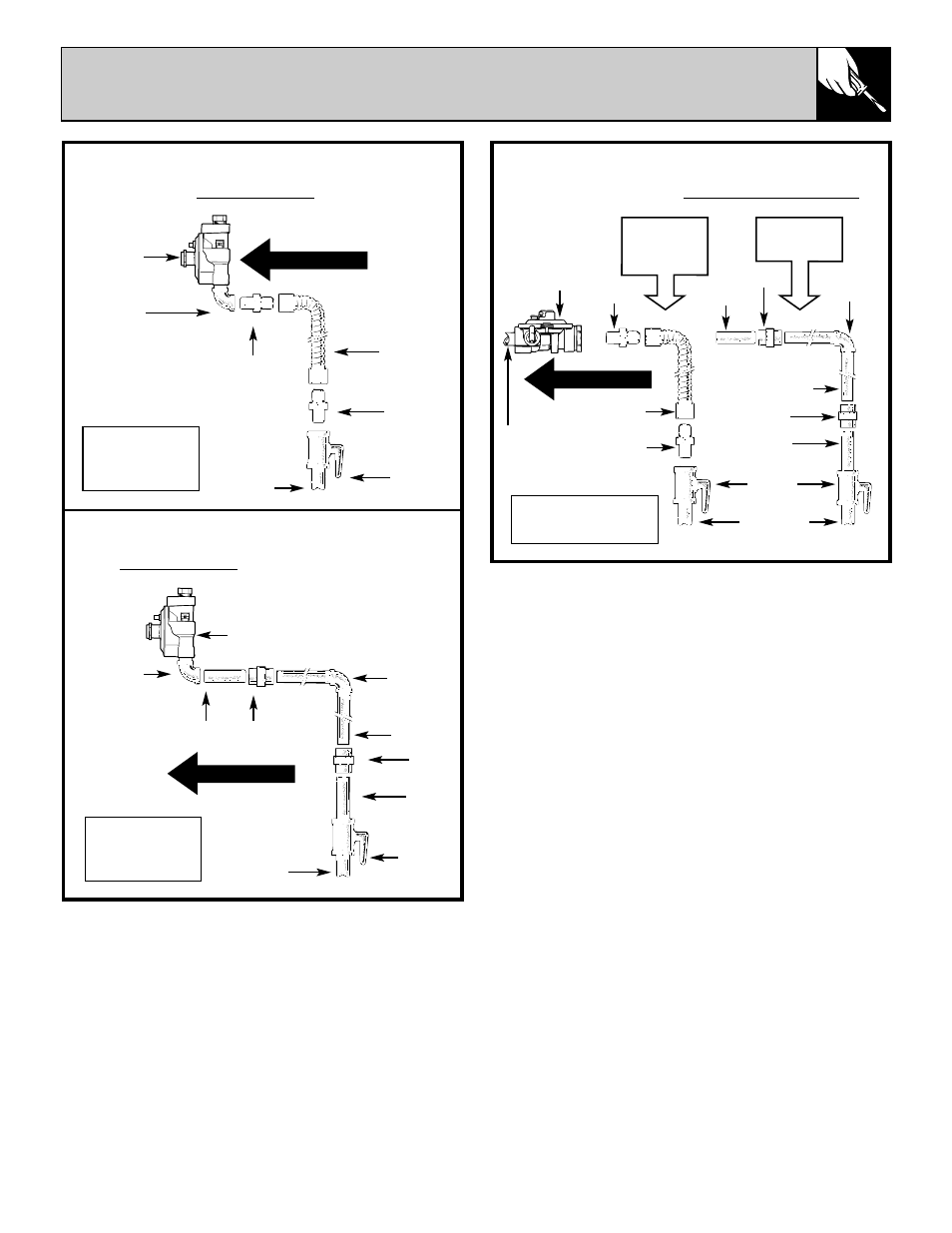

Flexible Connector and Rigid Pipe Hookups for
Models Equipped with Standard Twin Burners Flexible Connector Hookup for Models
Equipped with Sealed Burners
Rigid Pipe Hookup for Models Equipped
with Sealed Burners
Pressure
Regulator
90° Elbow
(provided)
Gas Flow into Range
Flex
Connector
(6 ft. max.) Adapter
Installer: Inform
the consumer of
the location of the
gas shut-off valve.
1/2 " or 3/4"
Gas Pipe
Adapter
Gas
Shut-off
Valve
Pressure
Regulator
90° Elbow
(provided)
Nipple Union
90° Elbow
Black
Iron Pipe
Union
Nipple
Gas
Shut-off
Valve 1/2 " or 3/4"
Gas Pipe
Gas Flow into Range
Installer: Inform
the consumer of
the location of the
gas shut-off valve.
Installer: Inform the
consumer of the location
of the gas shut-off valve.
Manifold Pipe
Adapter
Flex Connector
(6 ft. max.)
Adapter
Pressure
Regulator
Gas Flow into Range
Flexible
Connector
Hookup
Union 90°
Elbow
Union
Nipple
Black Iron Pipe
Nipple
Rigid Pipe
Hookup
1/2 " or 3/4"
Gas Pipe
Gas
Shut-off
Valve
