Grizzly 6" random orbital sander H8120 - Manual (Page 2)

Maintenance

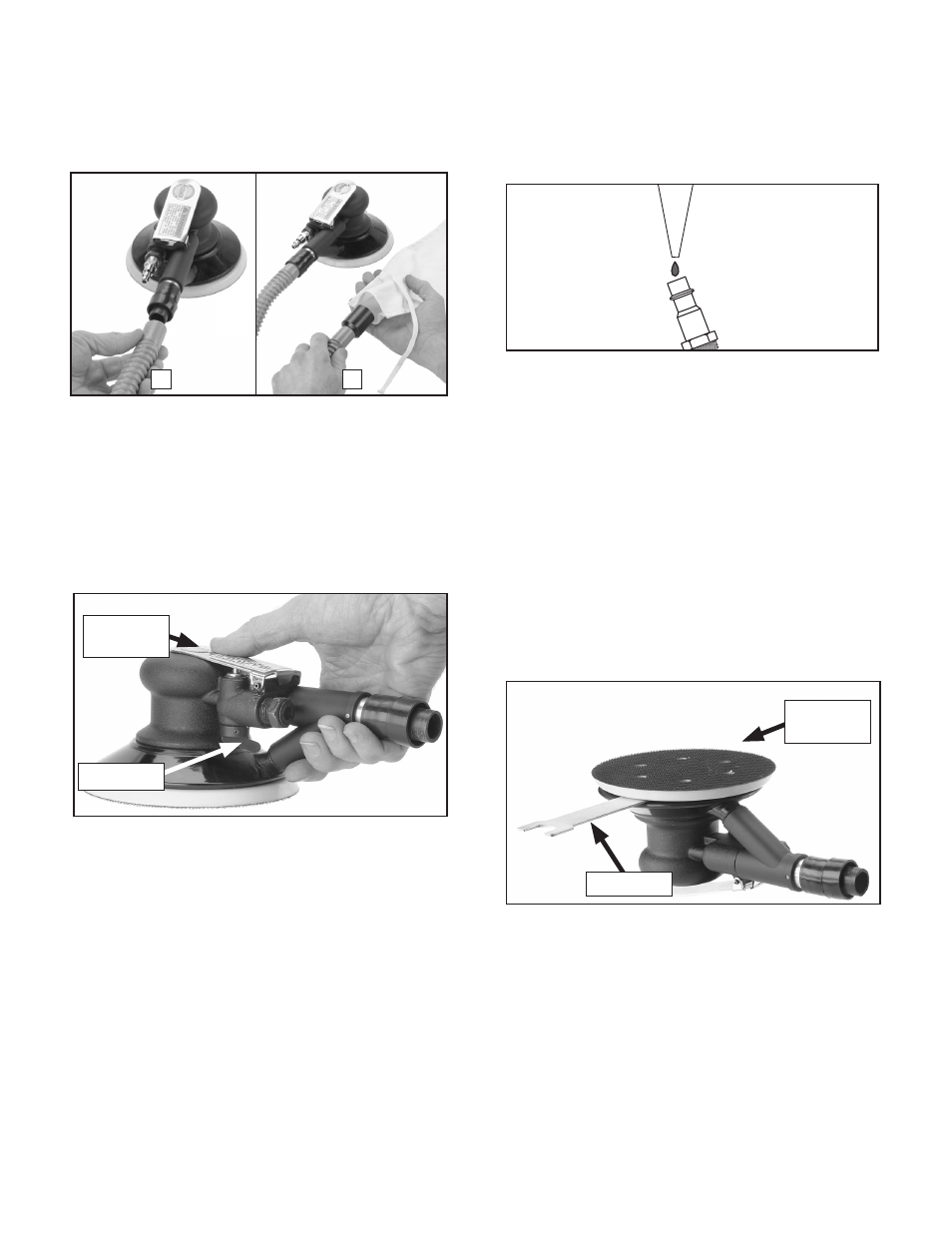

lubricate at least once every eight hours of oper-
ation. Place one or two drops of pneumatic tool oil
directly into the air fitting as shown in
Figure 5.
Figure 5 . lubricating directly into air fitting.
Operation
1. Connect the tool to compressed air.
2. Hold the sander and press the throttle lever
( Figure 4) to turn the sander ON.
Before installing the sanding disc, run the sander
for a few minutes to eject excess oil, then wipe
the tool down with a clean rag and begin sanding.
Oil the tool after use or storage.
Service
To replace the sanding pad:
1. Disconnect the sander!
2. Insert the included wrench onto the spindle
as shown in Figure 6.
3. Turn the regulator (Figure 4) to adjust the
sanding pad speed.
4. Remove pressure on the throttle lever to stop
the sanding pad.
5. When the sandpaper loses its effectiveness,
disconnect the sander and replace the
sandpaper.
If you need help with your new pneumatic tool, call
our Tech Support at: (570) 546-9663.
Figure 4. Sander controls.
Figure 6. Wrench inserted onto spindle.
3. Hold the wrench and unscrew the sanding
pad.
4. Install a new sanding pad (Part # PH8120048)
and secure it with the wrench.
Wrench
Sanding
Pad
Regulator
Throttle
lever
3. Attach the dust collection hose to the sander
as shown in Figure 3A, insert the hose into
the dust collection bag, and secure with the
strings (
Figure 3B).
Figure 3. Attaching dust collection hose to
sander and dust collection bag.
B A
