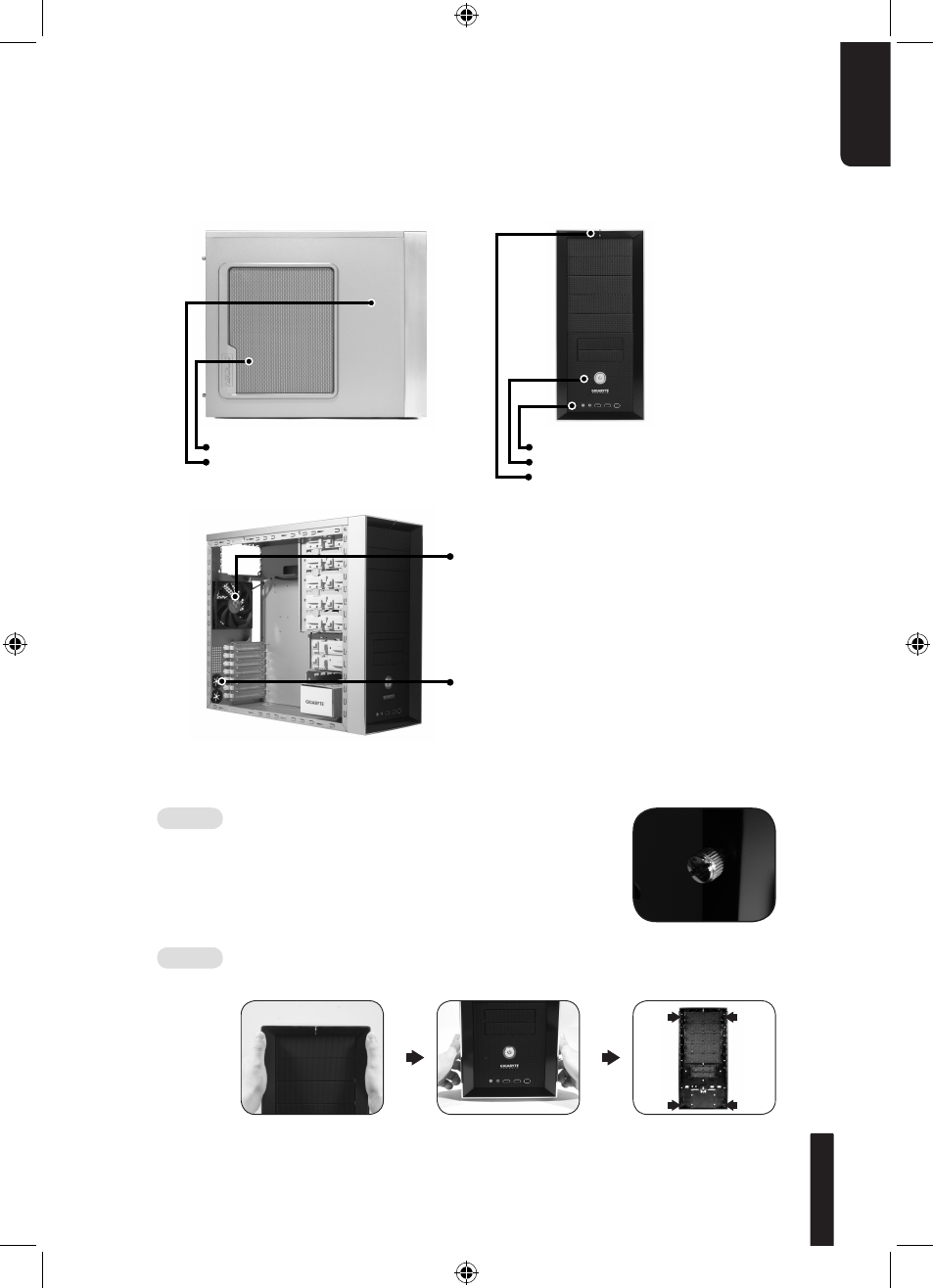

1-2 Front, Rear, and Left Side Panel Structure

a) Left Side Panel

b) Front Panel

c) Rear Panel

1-3 Removal of Side and Front Panels

1-3.1 To remove side panels:

1-3.1a Remove the 4 thumb screws at the rear of
the side panel, and detach the side panels.

1-3.2 To remove front panel:

1-3.2a Remove the left and right side panels, release the 4
clamps that hold the front panel onto the chassis.

Ventilated Mesh Side Panel Kit

Left Side Panel

Rear Fan

Multi-Media I/O port

Power Switch

HDD LED

LCS Tube Outlets
