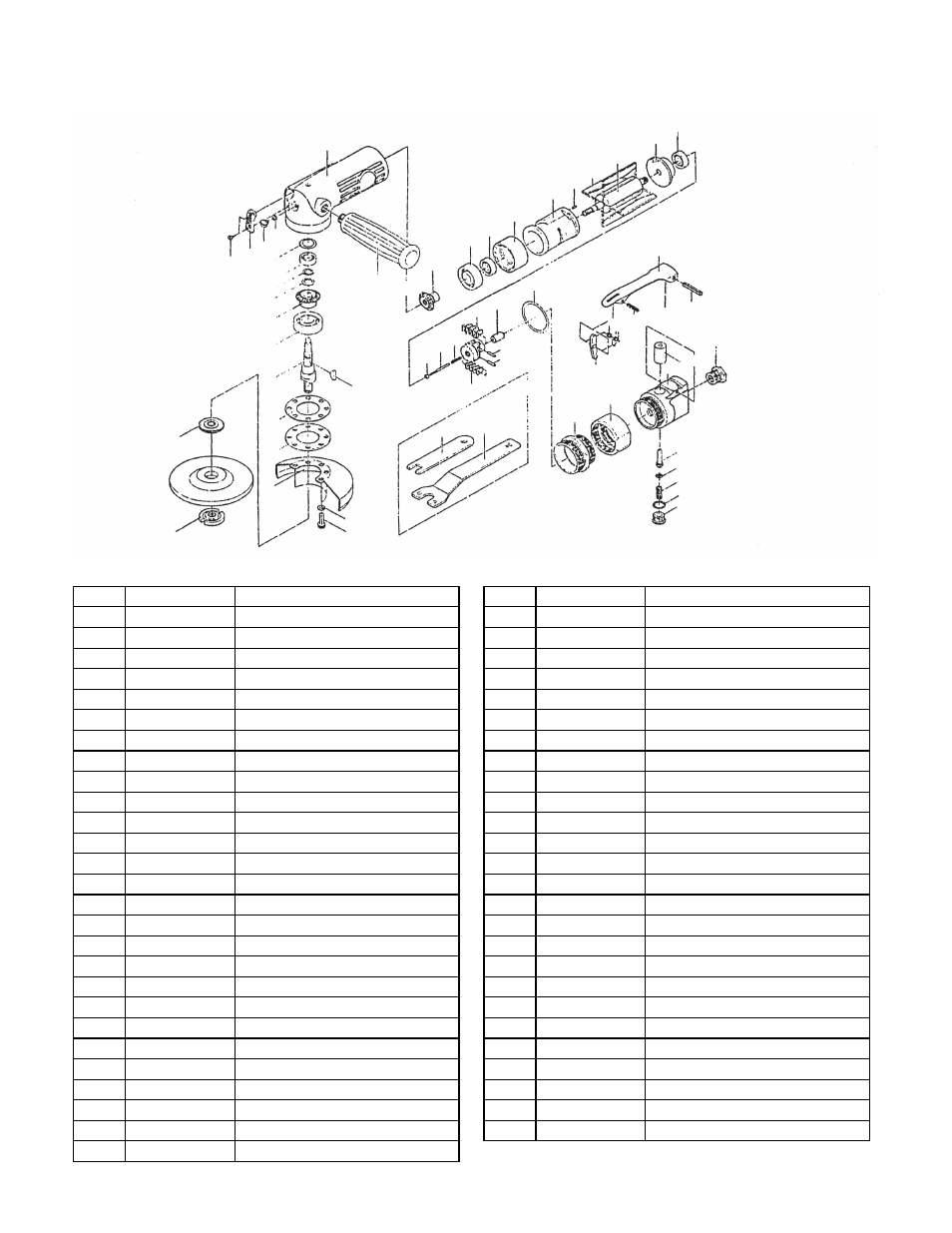

G5786 Parts Breakdown and List
��
�� ��
��
�
�
�
�
�
�
�
�
��
��
��
��
��
��
��
��
��
��
��
��
�� ��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
�
��
����
��
��
��
��
��
��
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
1
P5786001
MOTOR HOUSING
30
P5786030
O-RING
2
P5786002
SEAL PLATE
39
P5786039
EXHAUST DEFLECTOR
3
P5786003
BALL BEARING
40
P5786040
TAPPING SCREW
4
P5786004
ARBOR
41
P5786041
PLUG
5
P5786005
BALL BEARING
42
P5786042
O-RING
6
P5786006
WOODRUFF KEY
43
P5786043
FLANGE
7
P5786007
BEVEL GEAR
45
P5786045
GRINDING WHEEL
8
P5786008
WAVE WASHER
46
P5786046
FLANGE NUT
9
P5786009
EXTERNAL STOP RING
47
P5786047
HANDLE
10
P5786010
GASKET
48
P5786048
FLAT WRENCH
11
P5786011
RETAINER
49
P5786049
PIN WRENCH
12
P5786012
CENTER WHEEL GUARD
50
P5786050
BALL BEARING
13
P5786013
SPRING WASHER
51
P5786051
THROTTLE VALVE HOUSING
14
P5786014
HEX SOCKET HEAD CAP BOLT
52
P5786052
BUSHING
15
P5786015
ROTOR
53
P5786053
AIR INLET BUSHING
16
P5786016
FRONT END PLATE
54
P5786054
VALVE STEM
17
P5786017
CYLINDER
55
P5786055
VALVE SPRING
18
P5786018
SPRING PIN
56
P5786056
CAP
19
P5786019
ROTOR BLADE
57
P5786057
O-RING
20
P5786020
REAR END PLATE
58
P5786058
O-RING
22
P5786022
PENDULUM
59
P5786059
THROTTLE LEVER
23
P5786023
SPRING PIN
61
P5786061
THROTTLE LEVER LOCK
24
P5786024
PLUNGER
62
P5786062
TORSION SPRING
25
P5786025
ADJUSTMENT SCREW
63
P5786063
SPRING PIN
26
P5786026
SPRING
64
P5786064
SPRING PIN
27
P5786027
ADJUSTMENT NUT
65
P5786065
LOCK RING
28
P5786028
BALL BEARING
66
P5786066
COUPLING NUT
29
P5786029
BEVEL PINION
