Wiring diagram, On off, Figure 70. motor and on/off switch locations – Grizzly Ultimate 14" Bandsaw G0555 User Manual
Page 58
-56-
model g0555/g0555p (mfg. Since 5/11)
READ ELECTRICAL SAFETY
ON PAGE 55!
ON
OFF
Neutral
Hot
Ground
110 VAC
220 VAC
5-15 Plug
(Pre-wired)
Motor
Pre-wired
for 110V
Motor
Rewired
for 220V
Start/Stop Switch
Ground
Ground
4
2
1
3
Hot
Hot
Ground
6-15 Plug
(As Recommended)
220
VAC
G
Rewired for 220V
Ground
4
2
1
3
Rewired for 220V
A1
A2
A3
B1
B2
B3
Start Capacitor
200MFD 250VAC
Run Capacitor
20MFD 250VAC
Start Capacitor
200MFD 250VAC
Run Capacitor
20MFD 250VAC

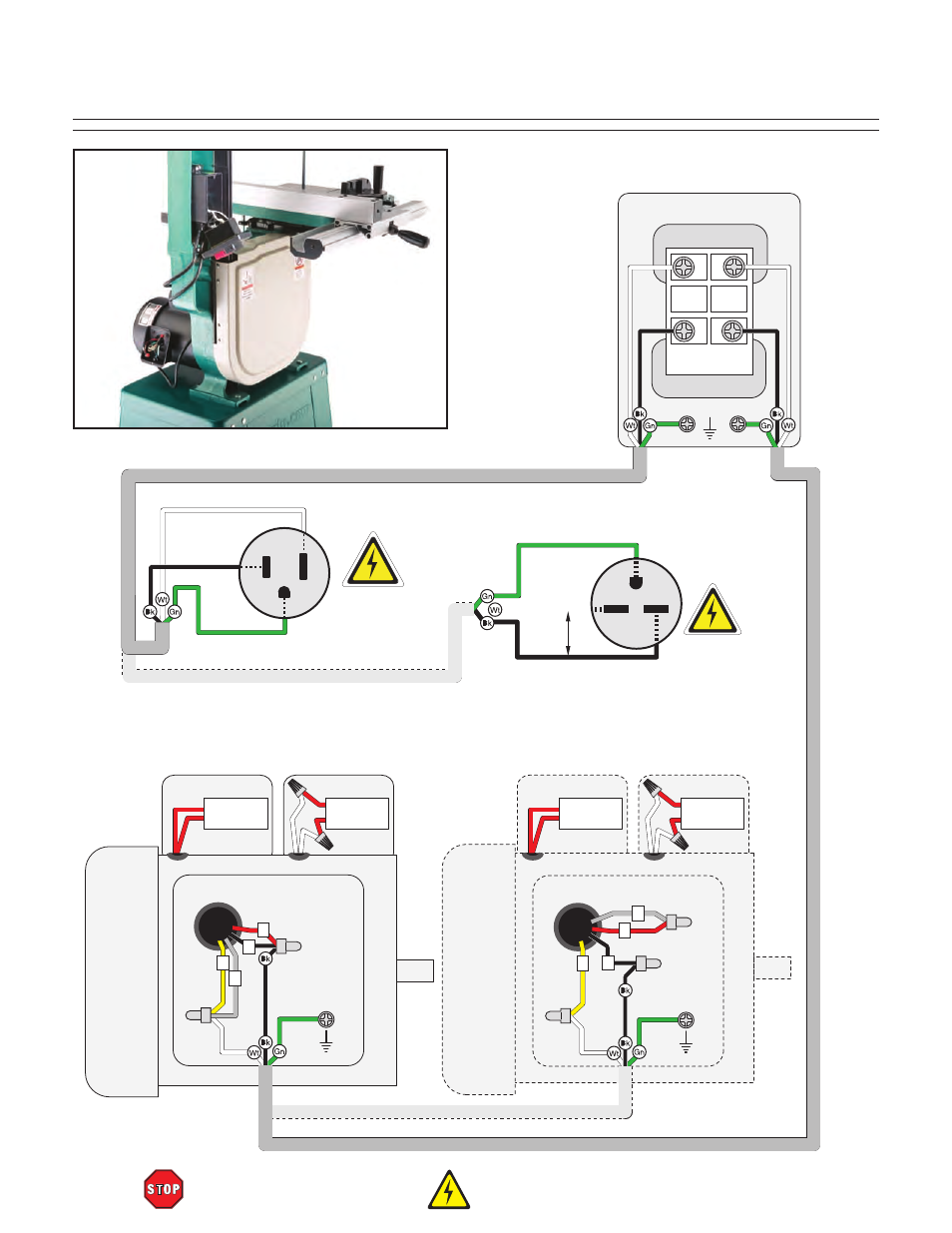

figure 70. motor and on/oFF switch locations.
Wiring Diagram
