Grizzly Ultimate 14" Bandsaw G0555 - Manual (Page 5)

model g0555/g0555p (mfg. Since 5/11)
-3-
Identification
To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning
any operations.
A. Upper Wheel Cover
B. on/oFF Switch w/disabling padlock
c. Fence
D. Blade guard
E. Upper Blade guide Assembly
f. table pin
G. miter gauge Assembly
h. lower Wheel Cover
I. Fence lock lever
J. Front table lock Knob
K. Stand Assembly
L. Blade tension Adjustment Knob
M. Blade tension Quick release lever
N. guide post
O. guide post lock Knob
P. Blade tension Scale
Q. Blade tracking Adjustment Knob
R. table insert
S. rear table lock Knob
T. 4" dust port
U. motor

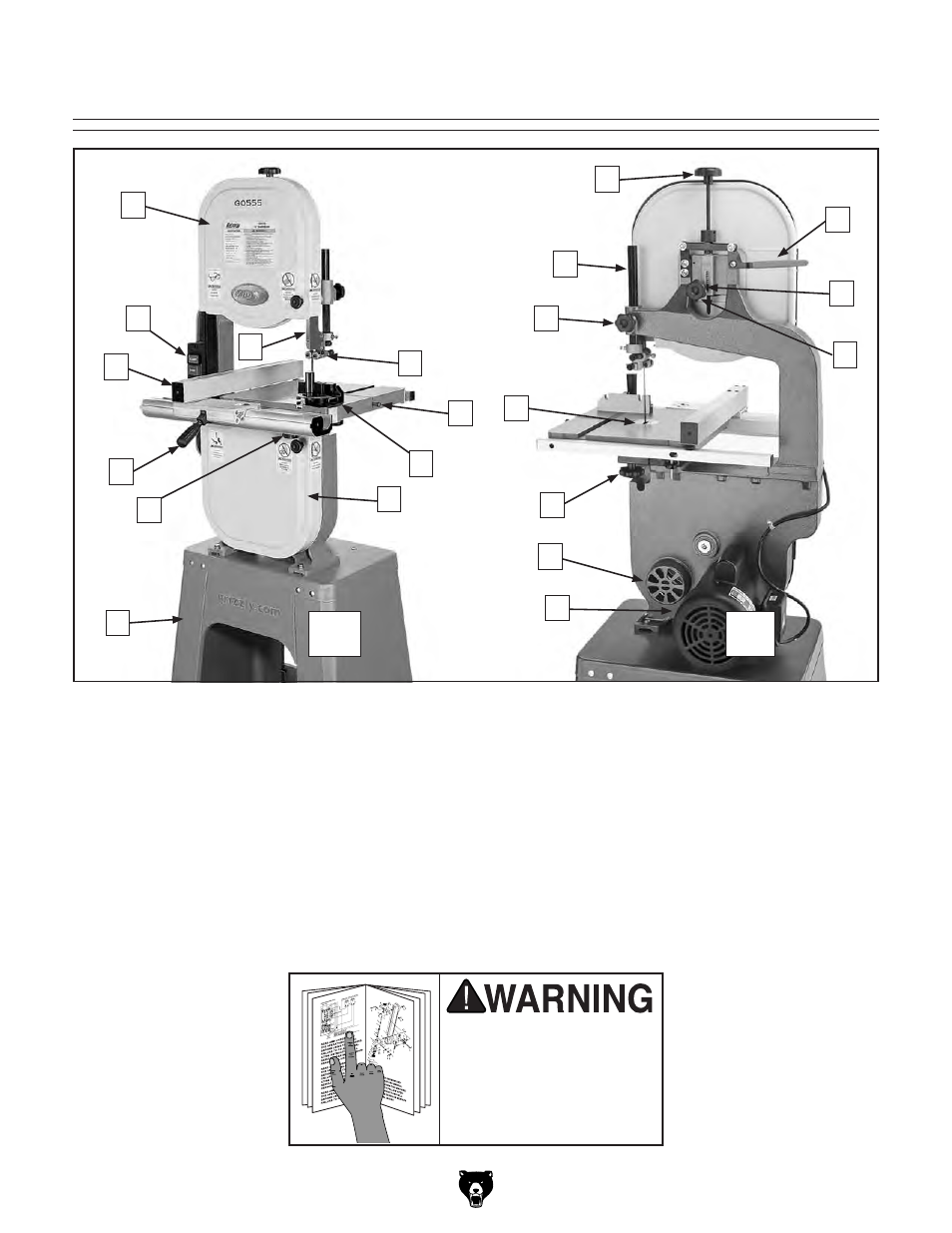

figure 1. g0555/g0555p identification.
B
A
C
i
h
g
e
d
K
J
l
p
m
Q
S
t
U
n
o
F
r
Front
view
rear
view
