GA-945PLM-(D)S2 (rev. 2.1) Motherboard - 18 -
English

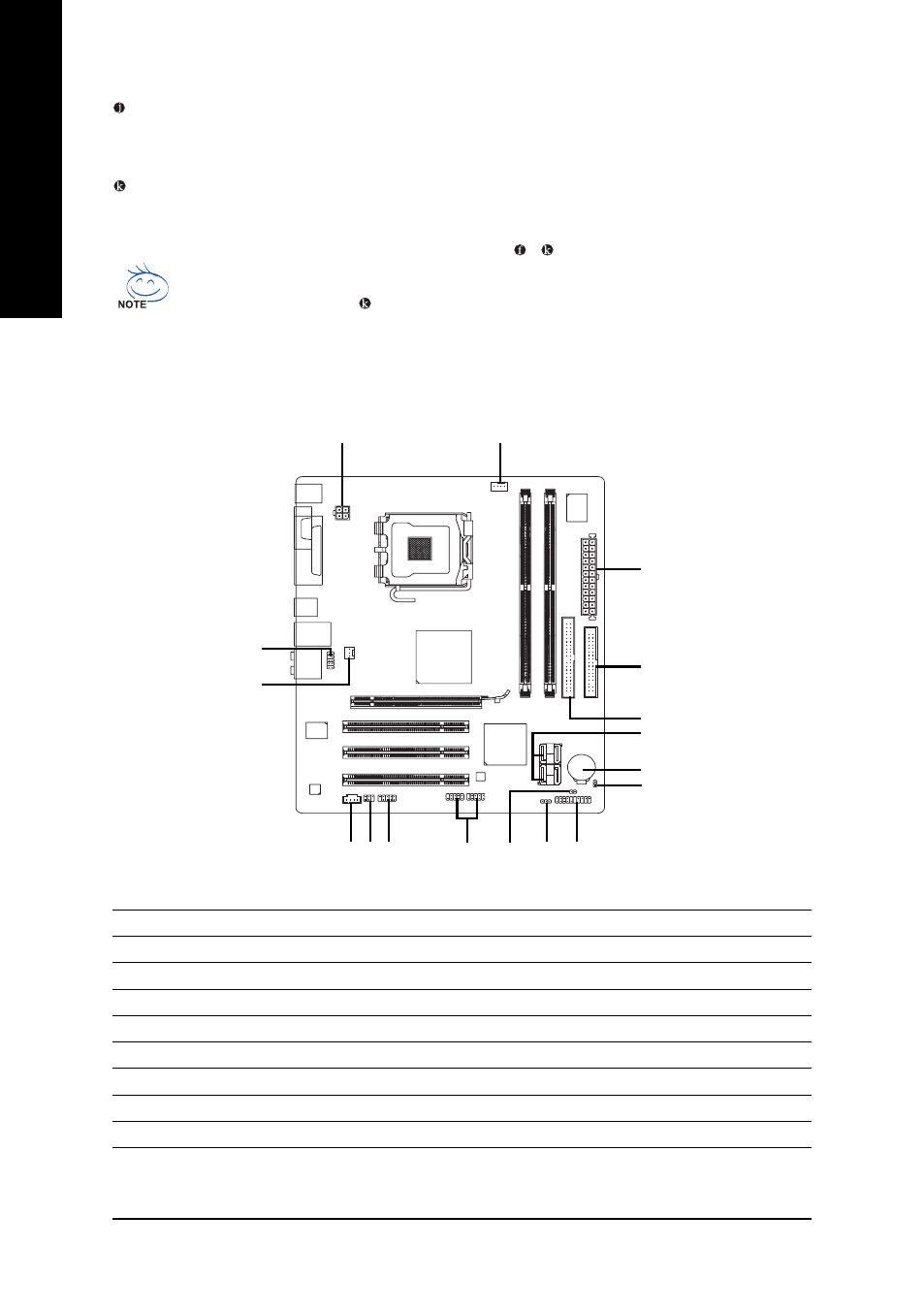

1-7 Connectors Introduction
Line Out (Front Speaker Out)
The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround
speakers can be connected to Line Out (Front Speaker Out) jack.
MIC In
The default MIC In jack. Microphone must be connected to MIC In jack.
In addition to the default speakers settings, the ~ audio jacks can be reconfigured to
perform different functions via the audio software. Only microphones still MUST be connected
to the default Mic In jack ( ) . Please refer to the 2-/4-/6-/8- channel audio setup steps for
detailed software configuration information.
1
5
12 15
4
11
9
16 13
2
14
7
17
8
3
10
6
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE
7) SATAII0 / 1 / 2 / 3
8) PWR_LED
9) BATTERY
10) F_PANEL
11) F_AUDIO
12) CD_IN
13) SPDIF_IO
14) F_USB1 / F_USB2
15) COMB
16) CLR_CMOS
17) CI
