P
roduct
S
PecificationS
P
roduct
S
PecificationS
SS-CPKF50 www.goodmanmfg.com PB 16 www.goodmanmfg.com SS-CPKF50
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without
notice or without incurring obligations. © 2010 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.

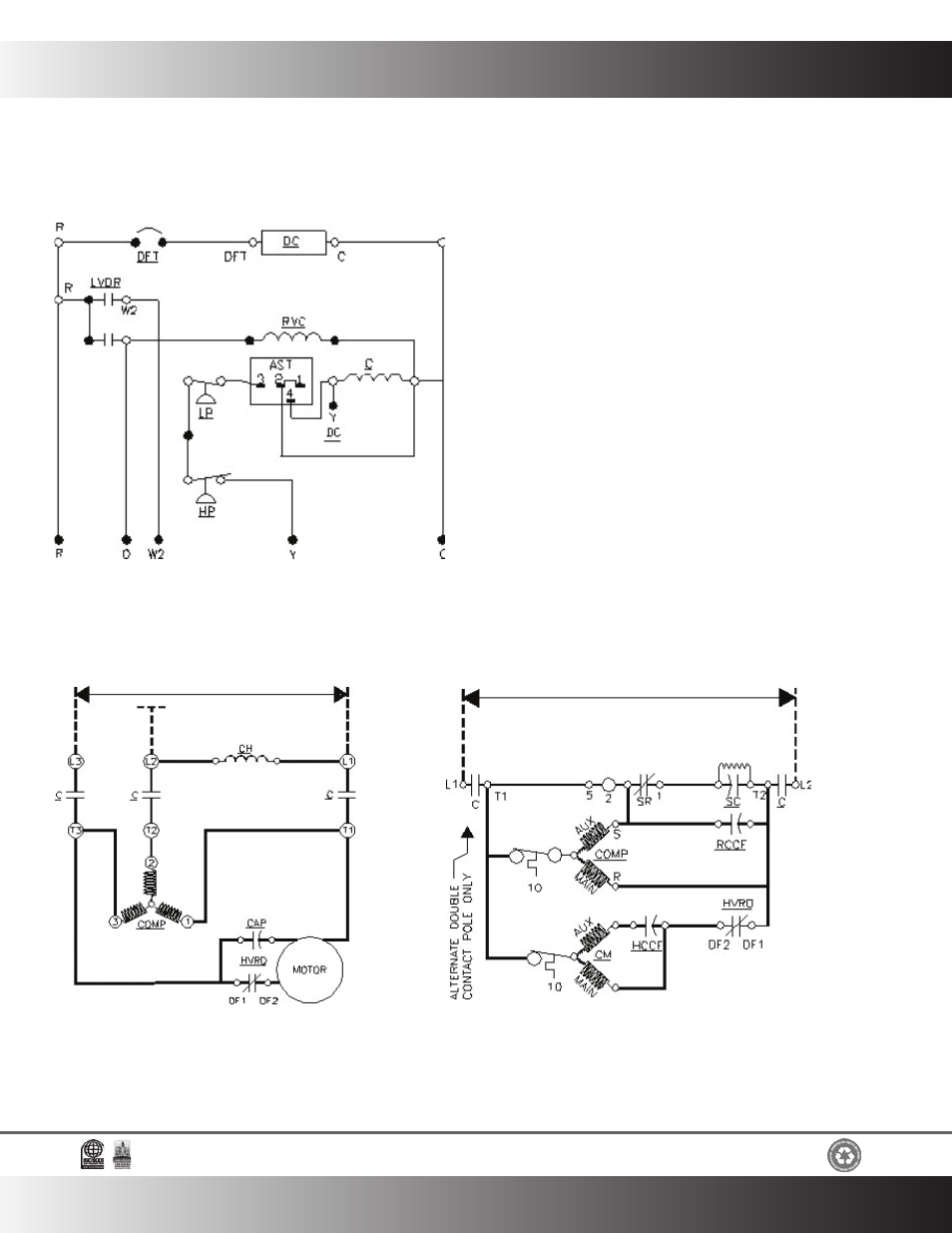

S
cHematic
w
iring
d
iagramS
Component Codes
CM
COMP
C
DC
LDVR
CH
IO
LP
HP
OT
FC
DFT
RVC
HVDR
AST Outdoor Fan Motor
Compressor
Contactor
Defrost Control
Low-Voltage Defrost Relay
Crankcase Heater
Internal Overload
Low-Pressure Control
High-Pressure Control
Outdoor Thermostat (Optional)
Fan Capacitor
Defrost Thermostat
Reversing Valve Coil
High-Voltage Defrost Relay
Anti-Short Cycle Timer
l
ow
-V
oltage
c
ontrol
w
iring
d
iagram
l
ine
-V
oltage
P
ower
w
iring
d
iagramS
220/240, 50HZ, 1 PH
CPKF24-2, CPKF36-2 & CPKF48-2 CPKF36-5, CPKF48-5, CPKF60-5 & CPKF61-5
380/415, 50 HZ, 3 PH
