H7665 21° Round Head Framing Nailer -8 -
OPERATIONS
Loading

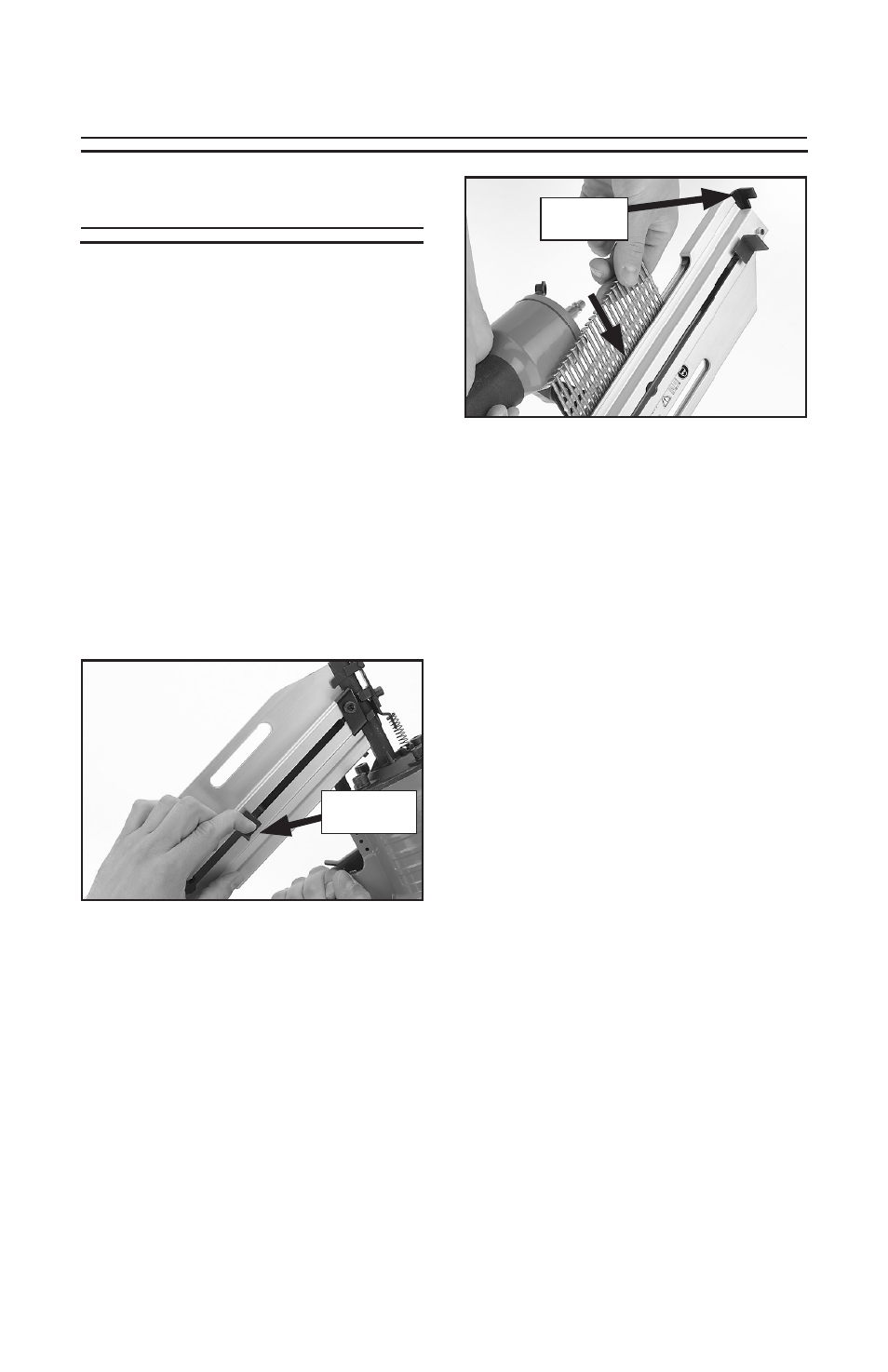

Figure 3. Sliding magazine back and
engaging the catch.
When replacing nails in your Model
H7665, follow these guidelines:
Type: Round Head
Angle: 21°
Diameter: 0.113"
Length: 2"–3
1 ⁄
2
"
Capacity: 75
To load your nailer:
1. DISCONNECT NAILER FROM THE
AIR SUPPLY!
2. Slide the magazine back, as shown in
Figure 3, until it locks in place.
Figure 4. Loading nails into magazine.
3. Insert a strip of nails, pointed-end
down, into the magazine as shown in
Figure 4.
4. Slide the nails all the way down to the
nose of the nailer.
5. With one hand on the magazine handle
for control, release the magazine catch
and slowly allow the magazine to press
against the nails.
Note: Releasing
the magazine catch and allowing it to
"snap" in position is hard on the nailer.
Magazine
Handle
Magazine
Catch
