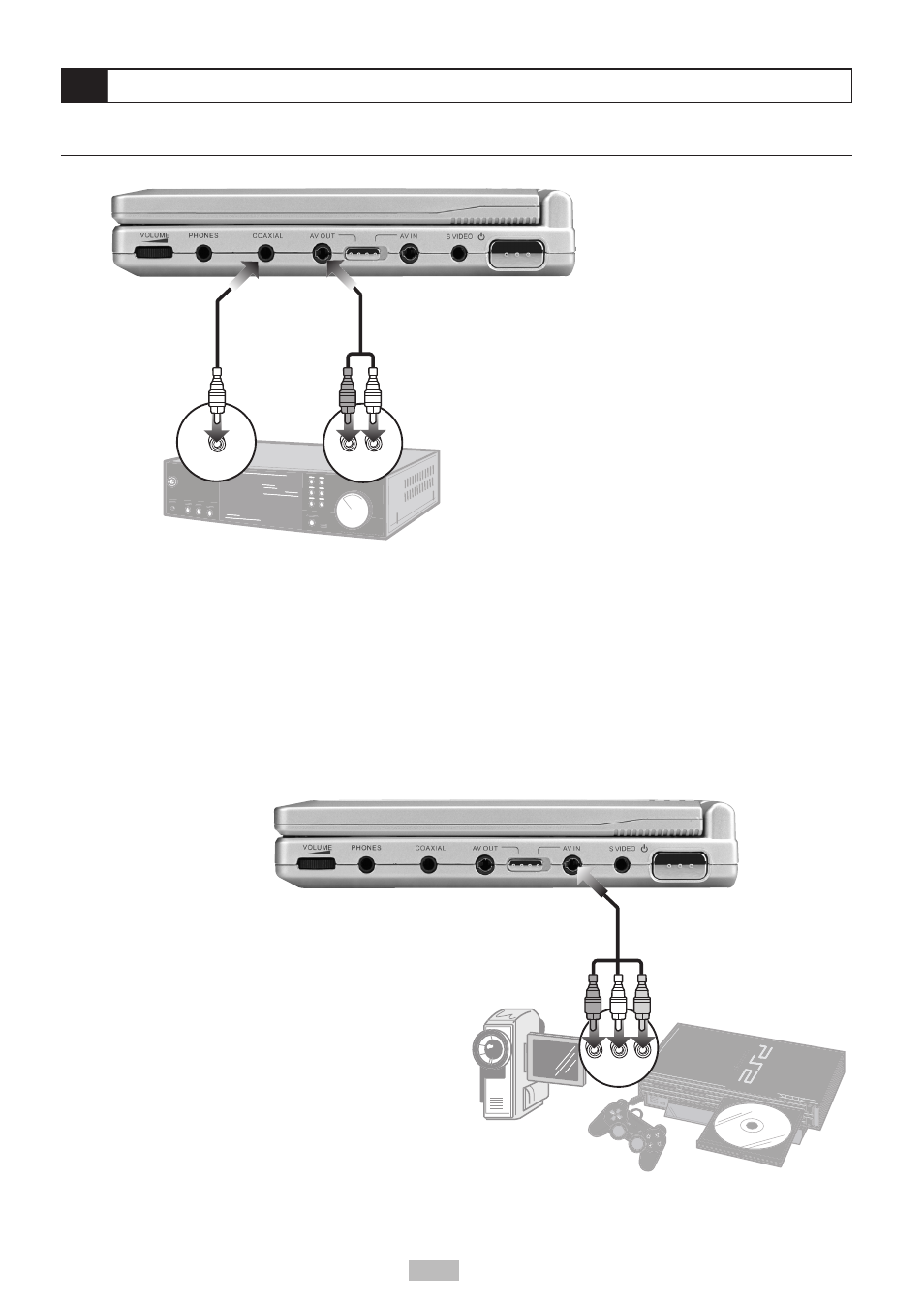

Connections
A/V OUT
External Equipment Connections
AUDIO IN
OR
COAXIAL IN
Amplifier/Receiver Connections
Analog Audio Connections
• Connect the supplied audio/video cable (mini-
plug to RCA) from the AV OUT jack to the left
and right Audio Inputs on our stereo or 2-
channel analog receiver.
• Slide the AV OUT/AV IN switch to the AV OUT
position.
Digital Audio Connections
• For improved audio quality connect a digital
coaxial cable with mini-plug adapter (not
included) from the COAXIAL jack to the
coaxial digital audio input on your 5.1-channel
receiver.
• When connecting the COAXIAL jack to a digital
receiver, set the Audio Output to “DIGITAL” in
the “AUDIO SETUP” menu; see page 24.
• Slide the AV OUT/AV IN switch to the AV OUT
position.
Connecting Camcorders, Video Games, etc.
• Connect the supplied audio/video cable (mini-
plug to RCA) from the AV IN jack to the Audio/
Video Outputs of your external equipment.
• Slide the AV OUT/AV IN switch to the AV IN
position.
