POCKET DOPPLER WATER-RESISTANT PROBES
The 2.0 MHz, 4.0 MHz, and 8.0 MHz water-resistant probes
connect to the main unit of the Grafco Pocket Doppler via
the probe socket. The following table lists and describes
the main information on each probe's label in order of ap-
pearance:

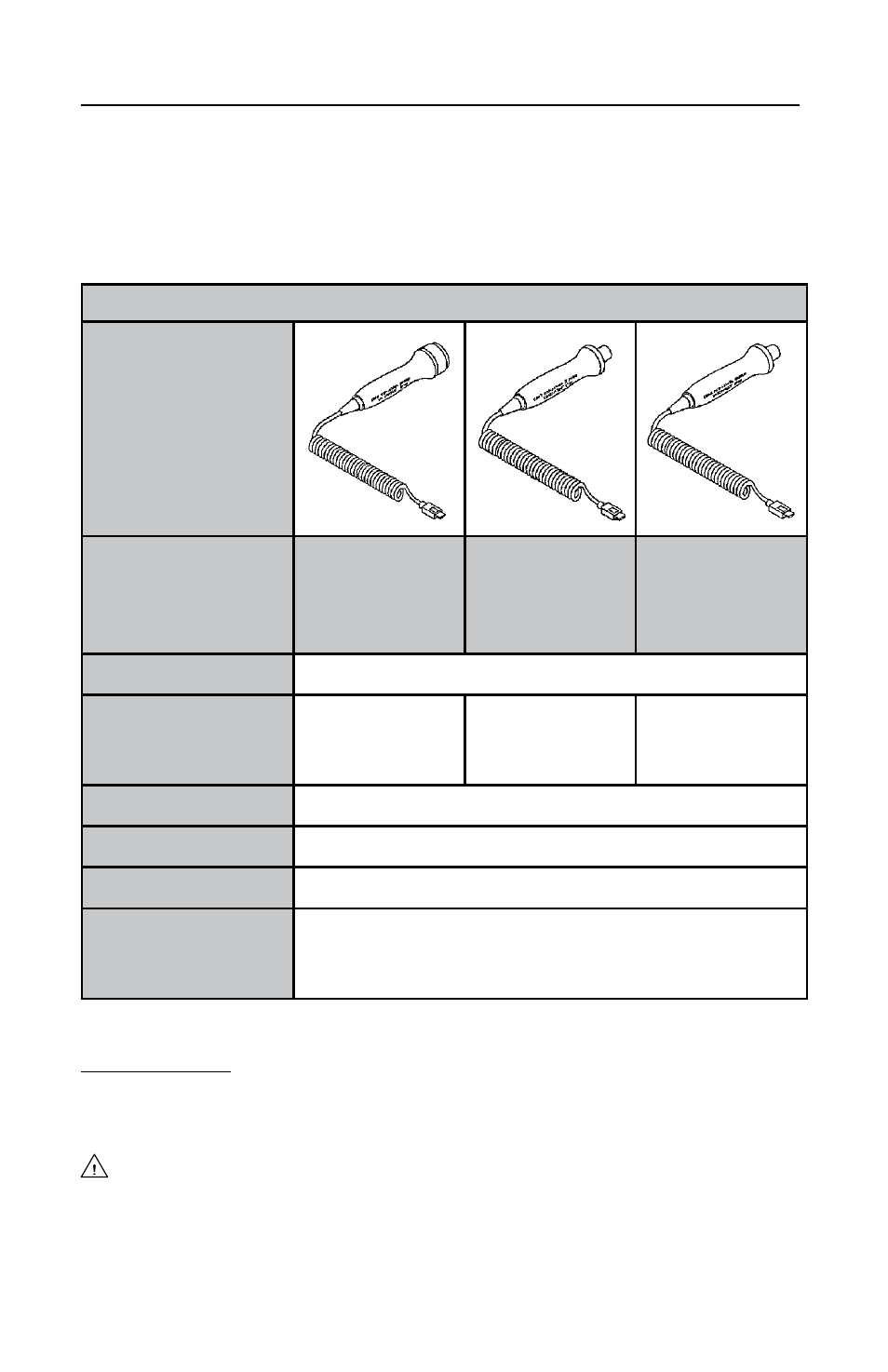

Pocket Doppler Water-Resistant Probe Label Table
Picture of Probe
Probe Label
Text
2.0 MHz
Water-Resistant
Probe
4.0 MHz
Water-Resistant
Vascular
Probe *
8.0 MHz
Water-Resistant
Vascular
Probe *
CD
Continuous Wave Doppler
X.0 (Central
Frequency)
Central
frequency =
2.0 MHz
Central
frequency =
4.0 MHz
Central
frequency =
8.0 MHz
A
Probe version number
SNxxxxx:
Probe Serial Number
Water-Resistant
The probe is water-resistant
IPX8
(Water-Resistant)
Water Ingress Protection Code, which indicates
this probe can work continuously for 5 hours when
immersed in water up to one meter deep.
* Vascular probes are used to monitor arteries and veins
BATTERY
See Section 5, SETUP, for battery installation and replace-
ment instructions.
WARNING: Use only 9V alkaline batteries (IEC Type
No. 6LR61/6LF22 or equivalent) in this device.
