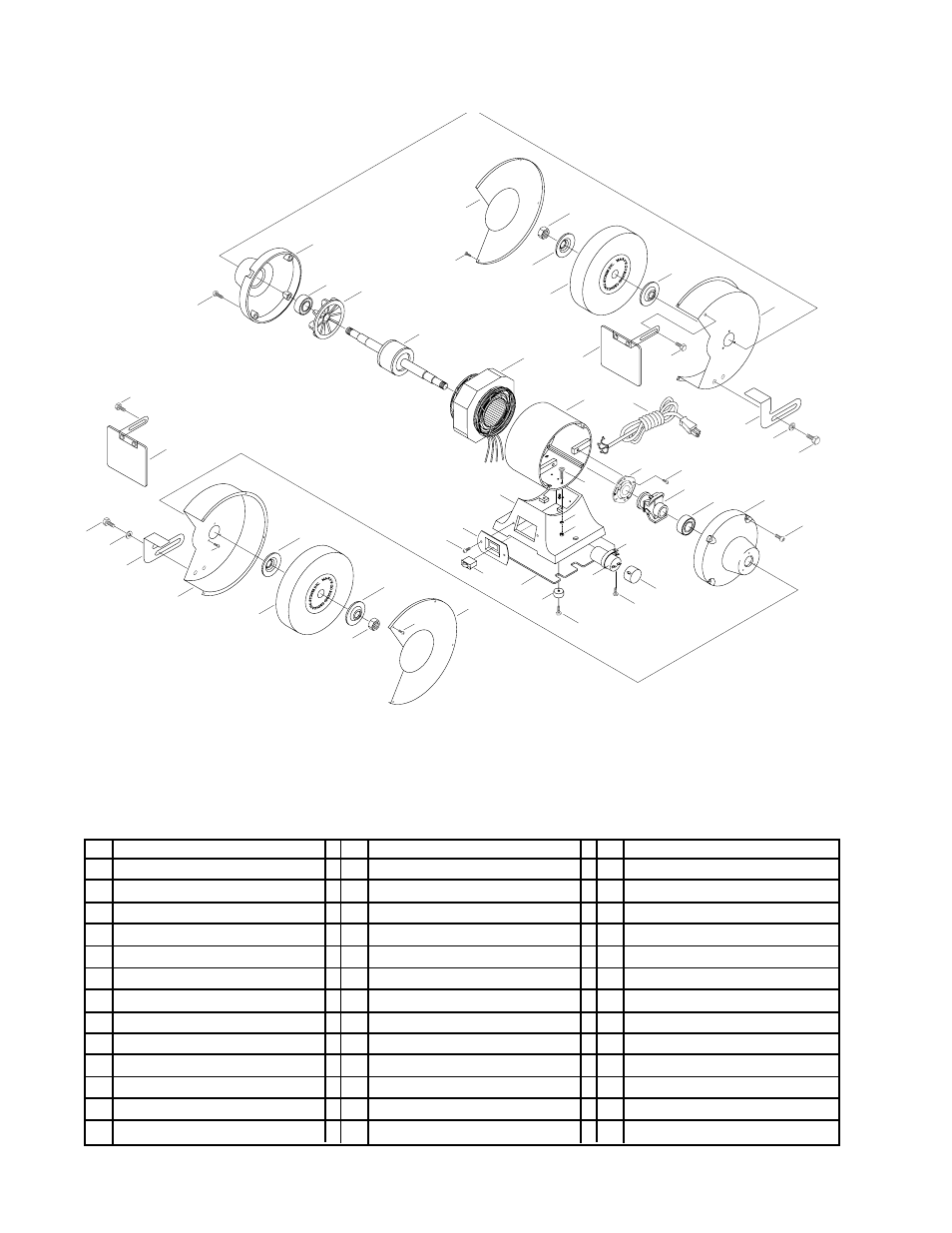

XIV. PARTS DIAGRAM
XV. PARTS LIST
8
9
4
11
12
14
2
47
23
24
10
14 11
14
1
14
48
21
43
5
3
13
41
7
22
36
34
7
25
27
27
29
33
31
33
30
27
28
27
26
35
36
37
32
45 42
45
42
28
20
16
19
18
1 BASE
2 CASE
3 FLAT HEAD SCREW
4 STATOR
5 CONTACT PLATE
7 PHLP HEAD SCREW
8 ROTOR
9 FAN
10 CENTRIFUGAL SWITCH
11 END BELL
12 BEARING
13 LOCK WASHER
14 PHLP HEAD SCREW
16 POWER CORD
18 SWITCH
19 PHLP HEAD SCREW
20 PHLP HEAD SCREW
21 CAPACITOR
22 CAP
23 BOTTOM COVER
24 FOOT
25 RIGHT GUARD
26 LEFT GUARD
27 FLANGE
28 GRINDING WHEEL
29 NUT LH
30 NUT RH
31 RIGHT COVER 32 LEFT GUARD
33 PHLP HD SCREW
34 RIGHT TOOL REST
35 LEFT TOOL REST
36 WASHER
37 HEX BOLT
41 HEX NUT
42 COMPLETE EYE SHIELD
43 SCREW
46 HEX BOLT
47 SWITCH MOUNT
48 CLAMP
REF DESCRIPTION REF DESCRIPTION REF DESCRIPTION
