23

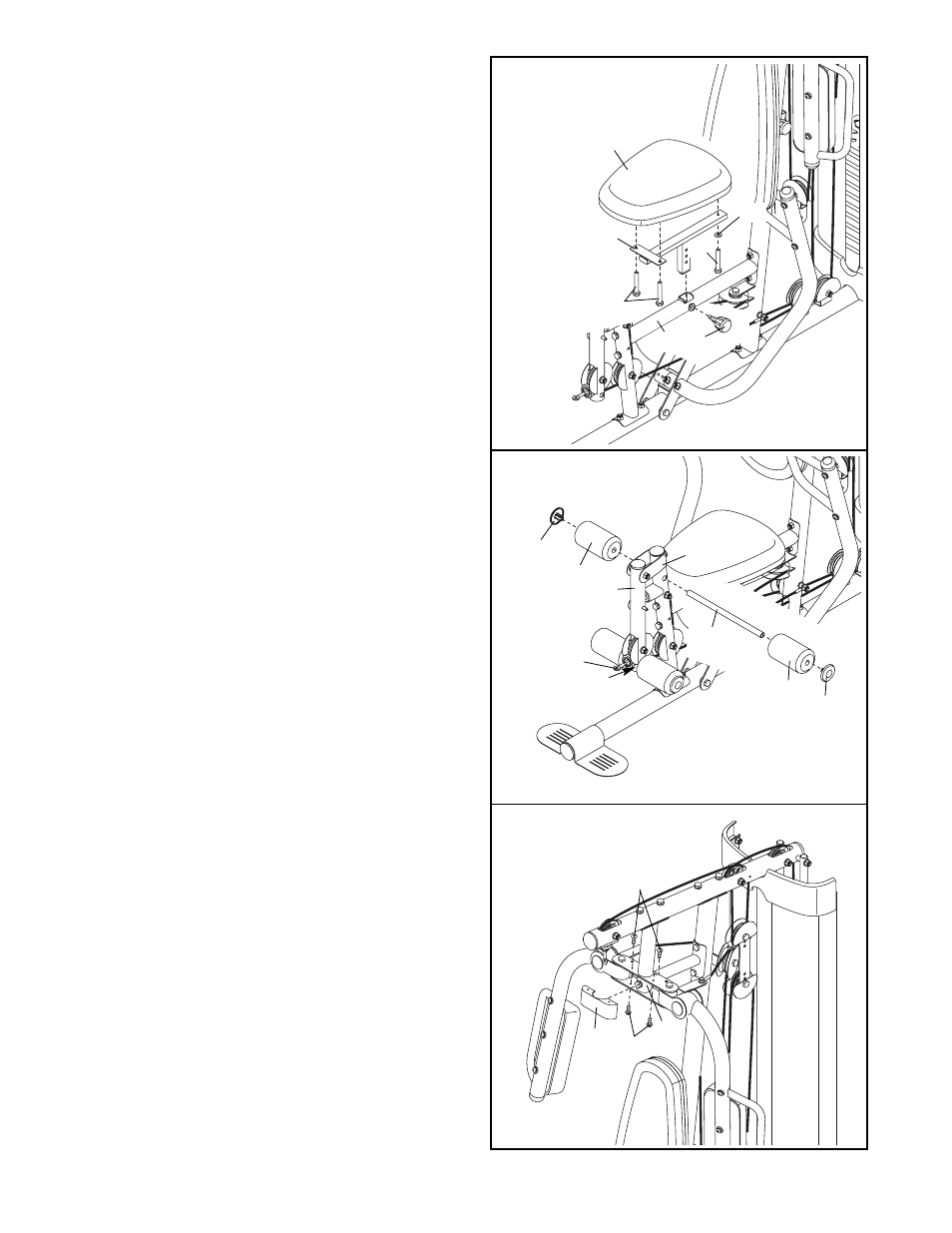

43. Attach the Seat (32) to the Seat Frame (8) with
two M6 x 20mm Screws (88), an M6 x 38mm
Screw (89), and an M6 Washer (114).
Insert the Seat Frame (8) into the Frame (9).
Tighten the Seat Adjustment Knob (52) into the
Frame and the Seat Frame. Make sure that the
Adjustment Knob passes through one of the
holes in the Seat Frame.
44. Insert a Pad Tube (13) into the indicated hole in
the Front Leg (10). Slide a Foam Pad (36) onto
each end of the Pad Tube.
Press a Pad Cap (37) into an end of each Foam
Pad (36).
Repeat this step for the other Pad Tube (13)
and the Leg Lever (12). Note: Lift the Leg
Lever Cable (51) when inserting a Pad Tube
into the hole in the bottom of the Leg Lever.
45. Attach the Butterfly Cover (30) to the Butterfly
Bracket (5) with four M4 x 12mm Self-tapping
Screws (102).
43
44
13
13
51
12
10
36
89
114
32
52
88
9
8
37
36
37
45
30
102
102
5
