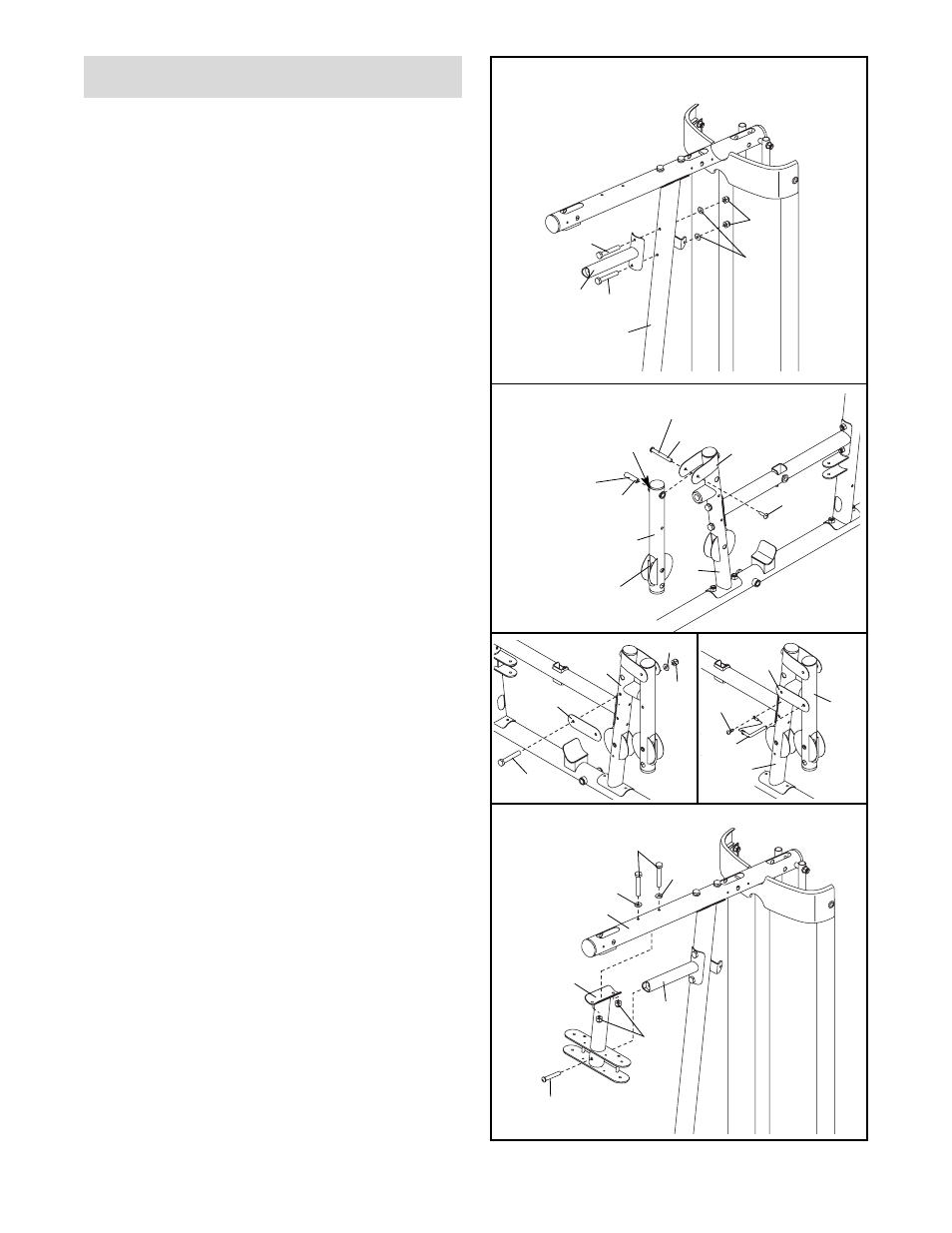

10. Attach the Butterfly Frame Brace (6) to the
Upright (2) with two M8 x 80mm Bolts (100), two
M8 Washers (103), and two M8 Nylon Locknuts
(78). Do not tighten the Nylon Locknuts yet.
11. Apply grease in the locations shown. Insert a
56.5mm Spacer (69) into the indicated hole in the
Leg Lever (12). Attach the Leg Lever to the Front
Leg (10) with an M10 x 61mm Bolt Set (116).
Make sure that the indicated rod is oriented as
shown. Make sure that the barrel of the Bolt
Set is inserted through both sides of the
bracket on the Front Leg.
See the left inset drawing. Attach the Lock Plate
(14) to the Front Leg (10) with an M8 x 69mm
Shoulder Bolt (87), an M8 Washer (103), and an
M8 Nylon Locknut (78).
See the right inset drawing. Insert the Lock
Plate Pin (95) through the Lock Plate (14) and the
Leg Lever (12). Attach the tether on the Lock
Plate Pin to the Front Leg (10) with an M4 x
12mm Self-tapping Screw (102).
12. Attach the Butterfly Frame (5) to the Top Frame
(4) with two M8 x 80mm Bolts (100), two M8
Washers (103), and two M8 Nylon Locknuts (78).
Do not tighten the Nylon Locknuts yet.
Attach the Butterfly Frame (5) to the Butterfly
Frame Brace (6) with an M10 x 75mm Button
Screw (118).
