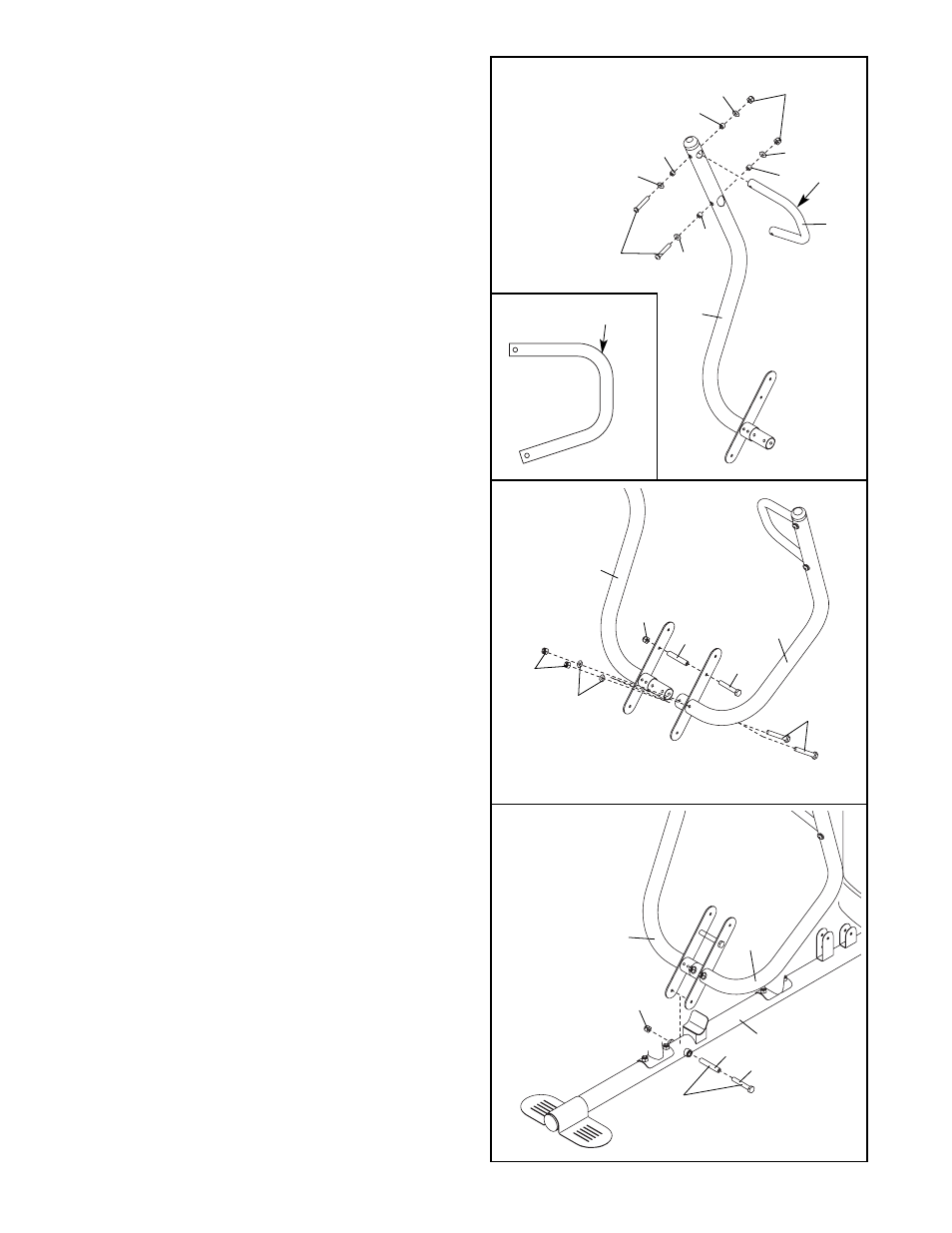

16. Position a Press Arm Handle (17) with the 90°
bend oriented as shown. Attach the Press Arm
Handle to the Right Press Arm (16) with two M10
x 65mm Button Bolts (106), four M10 Washers
(80), four 11mm Spacers (99), and two M10
Nylon Locknuts (77).
Repeat this step for the Left Press Arm (not
shown).
17. Attach the Left Press Arm (15) to the Right Press
Arm (16) with an M10 x 110mm Bolt (93), an
89.5mm Spacer (59) and an M10 Nylon Locknut
(77).
Finish attaching the Press Arms (15, 16) with two
M10 x 65mm Bolts (85), two M10 Washers (80),
and two M10 Nylon Locknuts (77). Do not tight-
en the Nylon Locknuts yet.
18. Apply grease in the locations shown and attach
the Left and Right Press Arms (15, 16) to the
Base (1) with an M10 x 110mm Bolt (93), an
89.5mm Spacer (59), and an M10 Nylon Locknut
(77). Do not overtighten the Nylon Locknut;
the Press Arms (15, 16) must be able to pivot
freely.
Tighten the Nylon Locknuts used in step 17.
17
16
15
77
77
59
93
80
85
18
16
15
77
59
93
1
106
16
99
99
99
80
80
77
99
80
80
17
16
90° Bend
90°
Bend
Grease
