-44-
G0641 Double Miter Saw

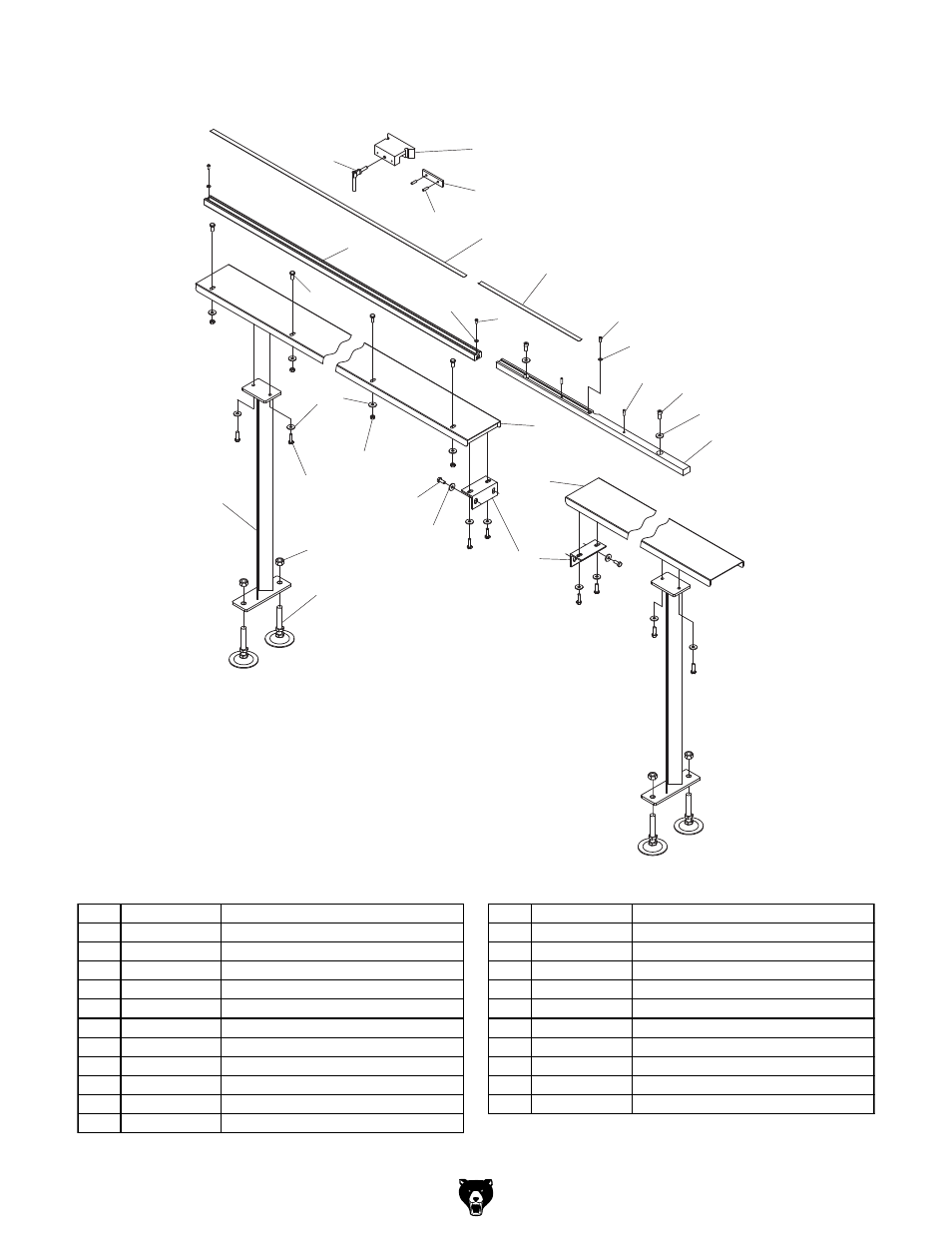

Extension Wings Breakdown & Parts List
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0641301 FENCE STOP 313 P0641313 MOUNTING FOOT W/HEX NUTS
302 P0641302 LOCK LEVER M8-1.25 X 35 314 PB09M HEX BOLT M8-1.25 X 20
303 P0641303 CLAMP PLATE 315 P0641315 WING SUPPORT BRACKET
304 PRP93M ROLL PIN 6 X 25 316 P0641316 EXTENSION WING RIGHT
305 P0641305 FENCE SCALE 0" - 16-1/2" 317 P0641317 EXTENSION WING LEFT
306 P0641306 FENCE SCALE 16-1/2" - 64" 318 P0641318 FENCE LEFT
307 P0641307 FENCE RIGHT 319 PW01M FLAT WASHER 8MM
308 PB03M HEX BOLT M8-1.25 X 16 320 PSB14M CAP SCREW M8-1.25 X 20
309 PW01M FLAT WASHER 8MM 321 PW02M FLAT WASHER 5MM
310 PN03M HEX NUT M8-1.25 322 PSB33M CAP SCREW M5-.8 X 12
311 P0641311 SUPPORT LEG 323 PS08M PHLP HD SCR M5-.8 X 12
312 PN04 HEX NUT 5/8-11
