Pivot linkage breakdown & parts list – Grizzly G0641 User Manual
Page 45
G0641 Double Miter Saw
-43-

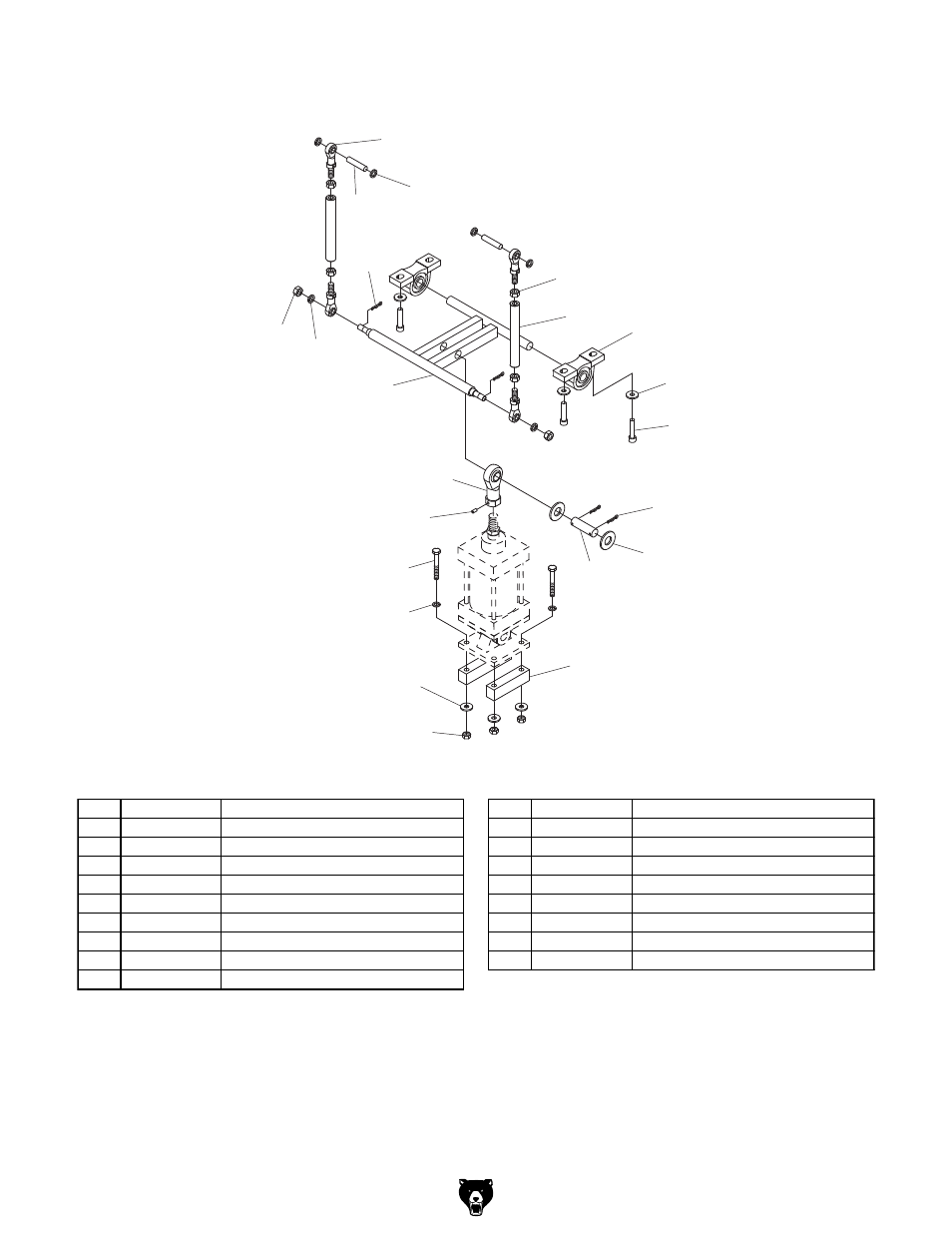

Pivot Linkage Breakdown & Parts List
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
���
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
201
P0641201
TIE-ROD PIVOT BOLT
211
PW13M
FLAT WASHER 20MM
202
P0641202
SHAFT
212
P0641212
ROCKER ARM
203
PLW05M
LOCK WASHER 12MM
213
P0641213
PIVOT HEAD NUT
204
PN09M
HEX NUT M12-1.75
214
PSS01M
SET SCREW M6-1 X 10
205
P0641205
TIE-ROD
215
PB120M
HEX BOLT M10-1.5 X 65
206
P0641206
PIVOT BRACKET
216
PLW06M
LOCK WASHER 10MM
207
PW04M
FLAT WASHER 10MM
217
PN02M
HEX NUT M10-1.5
208
PSB84M
CAP SCREW M10-1.5 X 35
218
P0641218
HAIRPIN COTTER PIN 80MM
209
P0641209
DRILLED HEADLESS CLEVIS PIN
219
P0641219
MOUNTING BLOCK
210
P0641210
HAIRPIN COTTER PIN 160MM
