Page 40

-38-

G0641 Double Miter Saw

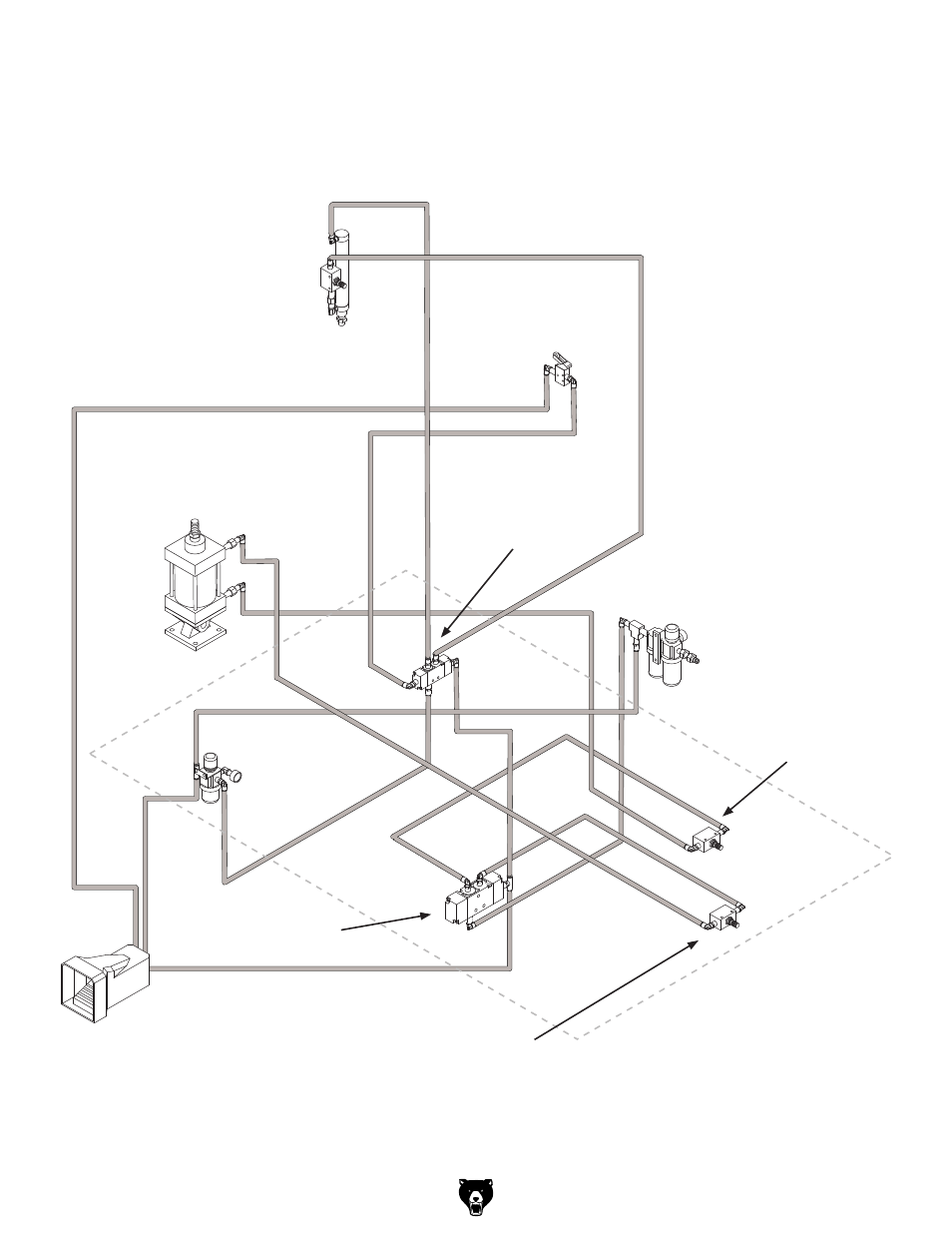

Pneumatic System Diagram

�

��

Hold-down Air

Cylinder

(Ref. 535 & 536,

Page 47)

Limit Switch

(Ref. 505, Page 47)

Main Air Cylinder

(Ref. 532, Page 47)

Air
Pressure
Regulator
(Ref. 527,
Page 47)

Foot Pedal Switch

(Ref. 524, Page 47)

Sub-Valve (5-Outlet)

(Ref. 533, Page 47)

Air Regulator/

Lubricator

(Ref. 511, Page 47)

Blade Raising

Adjustable Pressure

Valve (Ref. 517, Page 47)

Blade Lowering

Adjustable Pressure

Valve (Ref. 517, Page 47)

Master Valve

(6-Outlet)

(Ref. 521, Page 47)

pneumatic system diagram
