-14- G1061/G1061Z Buffing System

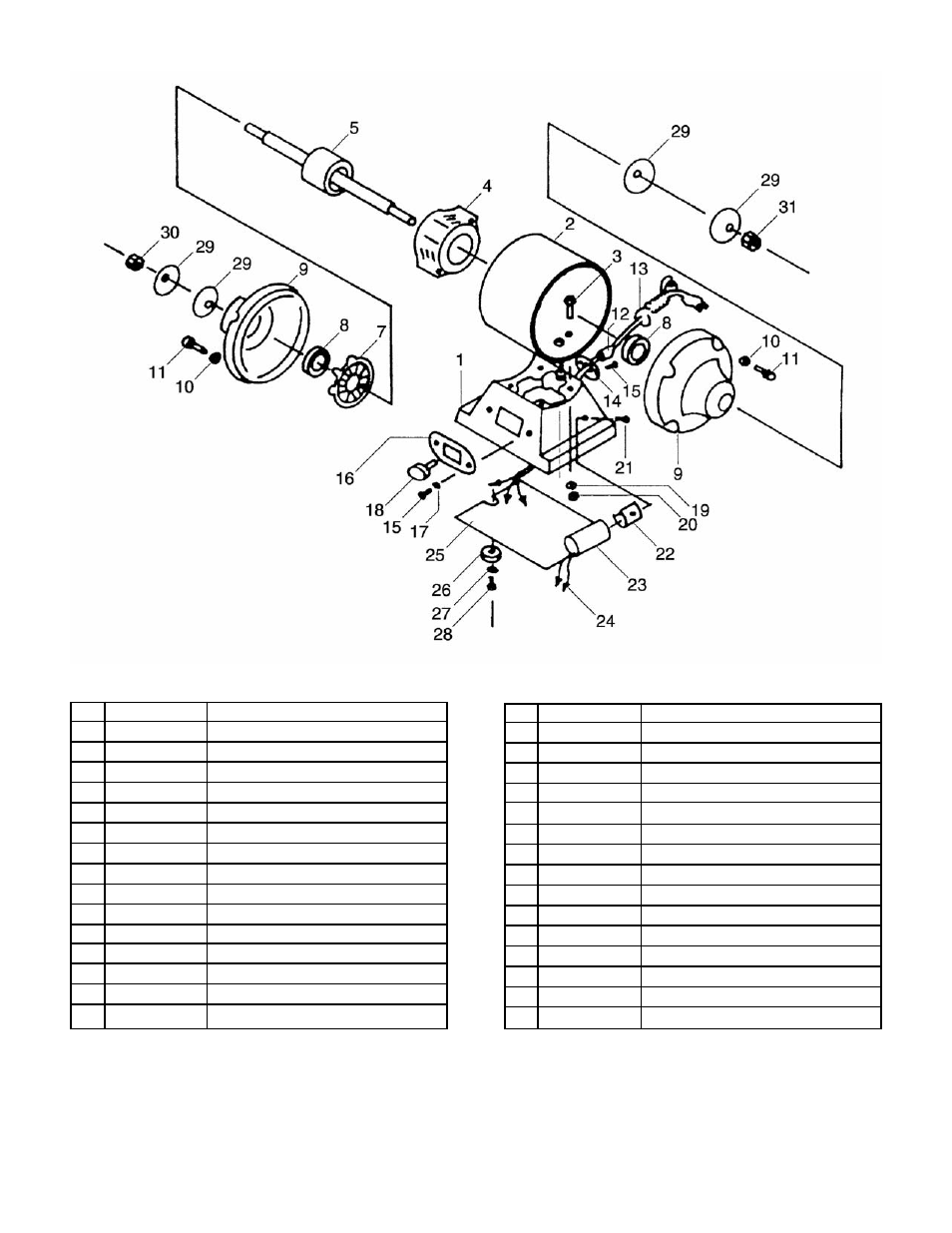

Ref# Part# Description
001 P1061001 MOTOR BASE
002 P1061002 MOTOR CASE
003 PFH07 FLAT HD SCR 5 ⁄
16
"-18 X 1 1 ⁄
4
"
004 P1061004 STATOR (G1061)
004 P1061Z004 STATOR (G1061Z)
005 P1061005 ROTOR W/#6 (G1061)
005 P1061Z005 ROTOR (G1061Z)
007 P1061007 MOTOR FAN
008 P6206 BALL BEARING 6206ZZ
009 P1061009 END BELL
010 PLW02 LOCK WASHER 1 ⁄
4
"
011 PS12 PHLP HD SCR 1 ⁄
4
-20 X 5 ⁄
8
"
012 P1015017 CORD CLAMP
013 P1015019 POWER CORD
014 P1015017-1 STRAIN RELIEF
015 PS01
PHLP HD SCR 10-24 X 1 ⁄
2
"
Ref# Part# Description
016 P1061016 PANEL SWITCH
017 PLW03 LOCK WASHER 3 ⁄
16
"
018 P1061018 ON/OFF SWITCH
019 PLW01 LOCK WASHER 5 ⁄
16
"
020 PN02 HEX NUT 5 ⁄
16
"-18
021 PHTEK1 SELF TAP PHLP HD SCR
022 P1061022 CLAMP
023 PC400 CAPACITOR
024 P1061024 CLAMP CORD
025 P1061025 FLOOR PLATE
026 P1061026 FOOT WASHER
027 PW03 FLAT WASHER 3 ⁄
16
"
028 PS01 PHLP HD SCR 10-24 X 1 ⁄
2
"
029 P1061029 WHEEL FLANGE
030 P1061030 LEFT HND HEX NUT
031 P1061031 RIGHT HND HEX NUT
