Page 6

t23084 (Mfg since 11/10)
-4
-
operations
read the manual before operation.
become familiar with this tool, its
safety instructions, and its operation
before beginning any work. serious
personal injury may result if safety
or operational information is not
understood or followed.
changing grinding Wheels
the Model t23084 uses type 27, 5"
grinding wheels with a
7
⁄
8
" bore. see the
grizzly catalog or
www.grizzly.com for
a complete listing of available grinding
wheels.
an incorrect size or type of grinding
wheel will not work properly with
this grinder and could fly apart
and cause operator injury. always
make sure to install only type 27, 5"
grinding wheels with a
7
⁄
8
" bore on
this grinder.
3. insert the prongs of the flange span-
ner wrench into the holes on the outer
arbor flange, then rotate the flange
counterclockwise to unthread it from
the arbor.
4. remove the grinding wheel.
5. use the wrenches to make sure the
inner arbor flange is tight, then slide the
replacement grinding wheel onto the
arbor.
6. Make sure the protruding lip of the outer
arbor flange is seated into the grinding
wheel bore, then use the wrenches to
fully tighten the flange and secure the
grinding wheel.
to change the grinding wheel:
1. DisConnECt grinDEr FroM air!
2. position the arbor wrench on the arbor
flats behind the inner arbor flange (see
figure 2).

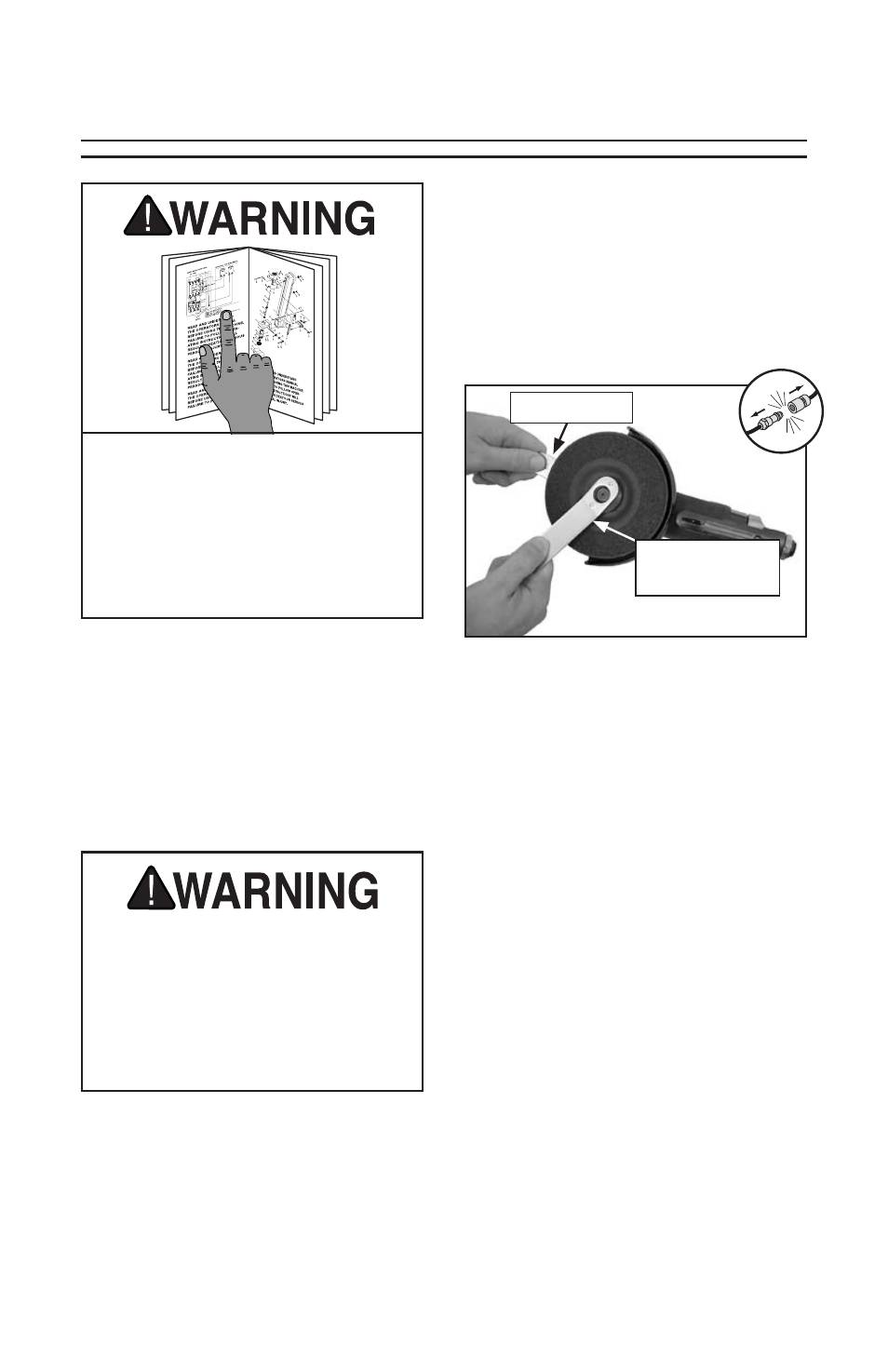

figure 2. loosening the outer arbor
flange.
arbor Wrench
Flange spanner
Wrench
