9

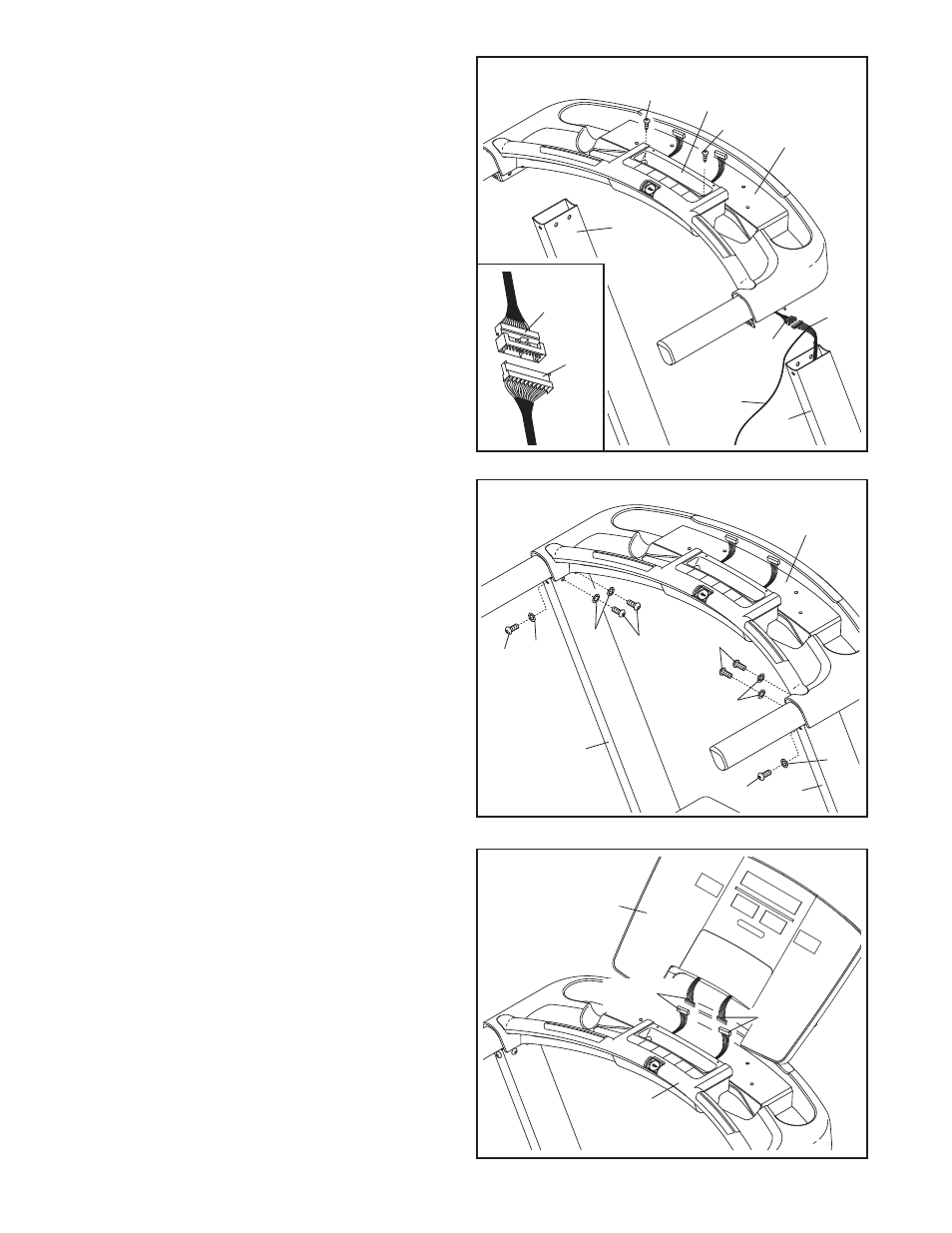

7. Attach the Tray (90) to the handrail assembly
with two #8 x 1/2" Screws (1).
Have a second person hold the handrail assem-
bly near the Right Upright (78) and the Left
Upright (74). Connect the Upright Wire (38) to
the console wire. See the inset drawing. The
connectors should slide together easily and
snap into place. If they do not, turn one connec-
tor and try again. IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Remove the wire tie from the Upright Wire (38).
1
78
74
1
Console
Wire
Wire Tie
7
8. Set the handrail assembly on the Uprights (74,
78). Be careful not to pinch the wires.
Attach the handrail assembly to the Uprights
(74, 78) with six 5/16" x 1" Bolts (7) and six
5/16" Star Washers (10) as shown.
See assembly steps 4 and 6. Firmly tighten
the 3/8" x 4" Bolts (6).
7 10
74
Handrail
Assembly
8
9. With the help of a second person, hold the con-
sole assembly near the handrail assembly.
Connect the two wires from the console assem-
bly to the two wires from the handrail assembly.
See the inset drawing in step 7. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Handrail
Assembly
Console
Assembly
9
38
Console
Wire
Handrail
Assembly
38
78 7
7
7
10
10
10
Wires
Wires
90
