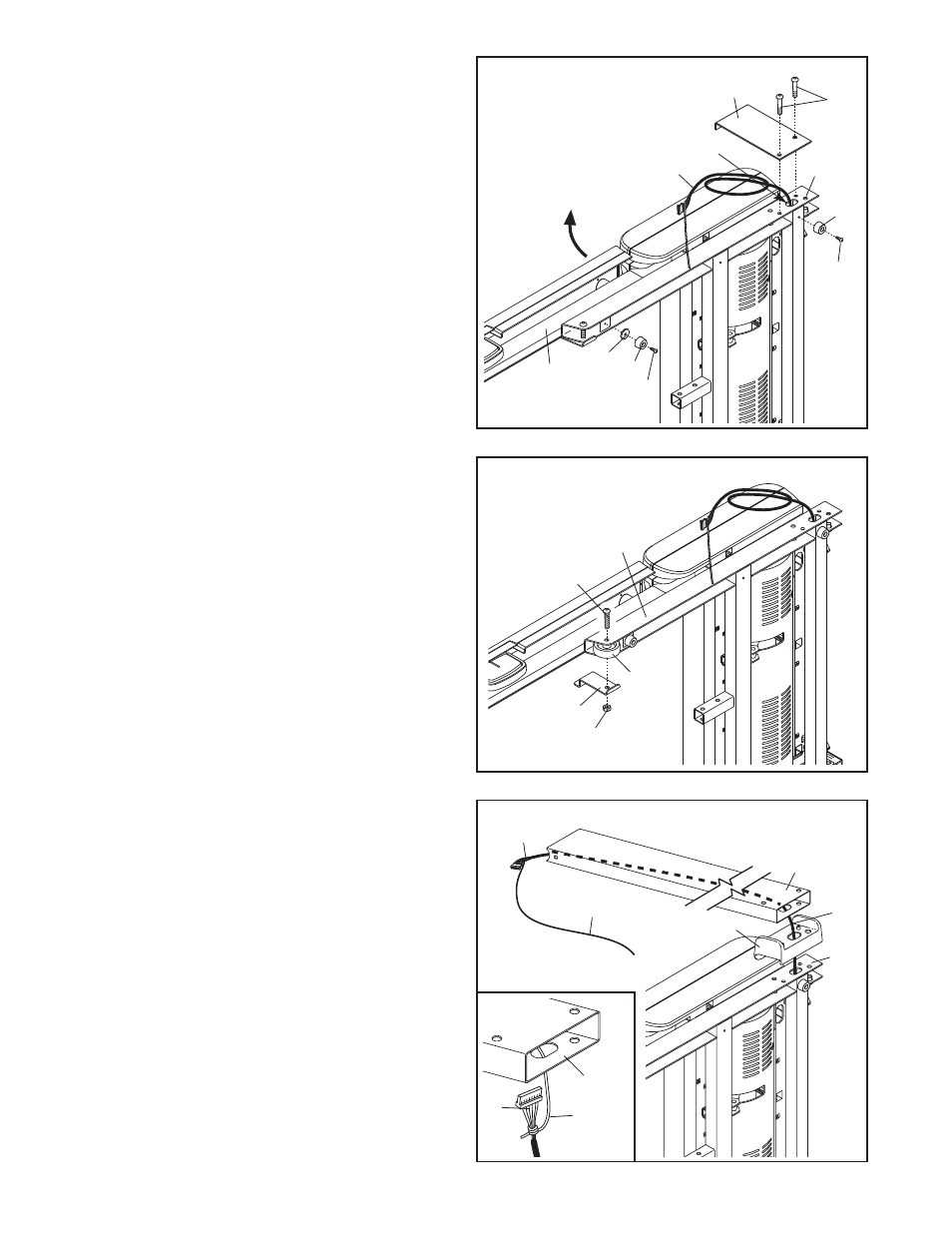

3. Identify the Right Upright (78) and the Right

Upright Spacer (79), which are marked with

stickers. Insert the Upright Wire (38) through the

Right Upright Spacer as shown. Set the Right

Upright Spacer on the Base (83). Be careful

not to pinch the Upright Wire.

Have a second person hold the Right Upright

(78) near the Base (83). See the inset drawing.

Tie the wire tie in the Right Upright securely

around the end of the Upright Wire (38). With

the help of a second person, hold the Right

Upright near the Base. Then, pull the other end

of the wire tie until the Upright Wire is routed

completely through the Right Upright.

Wire Tie

2. Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),

and the shipping bracket (C) from the Base (83).

Attach a Wheel (84) with the Bolt and the Nut

that you just removed. Do not overtighten the

Nut; the Wheel must turn freely. Discard the

shipping bracket.

Wire

Tie

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its left side. Partially fold the

Frame (56) so that the treadmill is more stable;

do not fully fold the Frame yet.

Remove and discard the two indicated bolts (A)

and the shipping bracket (B).

Cut the shipping tie securing the Upright Wire

(38) to the Base (83). Locate a tie in the indi-

cated hole in the Base, and use the tie to pull

the Upright Wire out of the hole.

Attach a Base Pad (81) to the Base (83) in the

location shown with a #8 x 1" Tek Screw (2) and

a Base Pad Spacer (13). Then, attach another

Base Pad (81) with only a #8 x 1" Tek Screw (2).

Hole
