Hardware Installation Process
Table 1. Supported DIMM Module Type
Size Organization RAM Chips/DIMM
256MB 8MB x 8 x 4 bks 8
16MB x 4 x 4bks 16
512MB 16MB x 8 x 4bks 8
32MB x 4 x 4bks 16
1GB 32MB x 8 x 4bks 8
64MB x 4 x 4bks 16

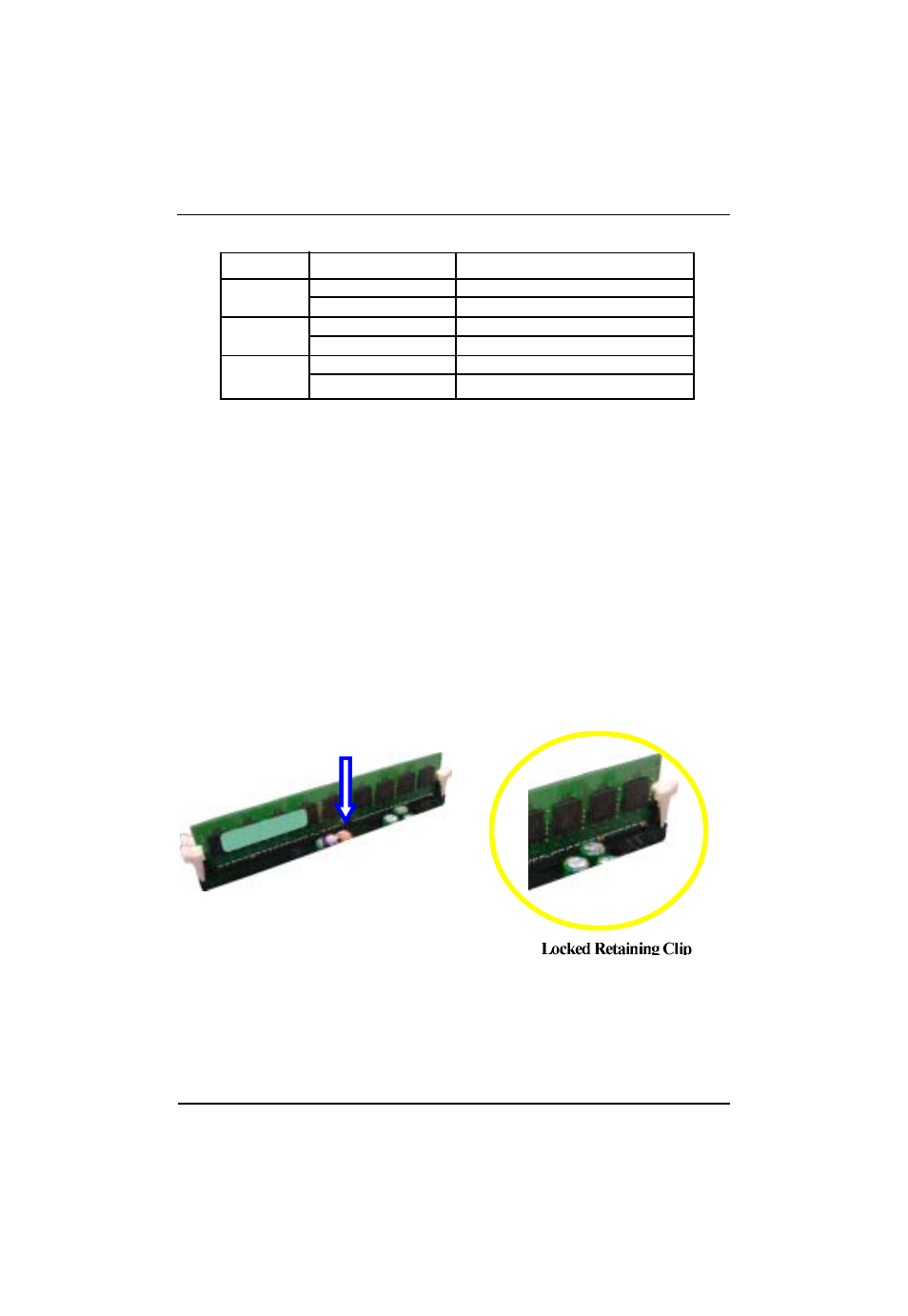

Installation Steps:
1. Unlock a DIMM socket by pressing the retaining clips outwards.
2. Aling a DIMM on the socket such that the notch on the DIMM exactly match the notch in the
socket.
3. Firmly insert the DIMMinto the socket until the retaining clips snap back in place.
4. When installing the memory into the DIMM socket, we recommend to populate the memory
as a pair. One in Channel A module and one in Channel B module for best performance.
Please populate DIMM starting from Channel A (Yellow slot).
Note that each logical DIMM must be made of two identical DIMMs having the same
device size on each and the same DIMM size.
5. Reverse the installation steps if you want to remove the DIMM module.
