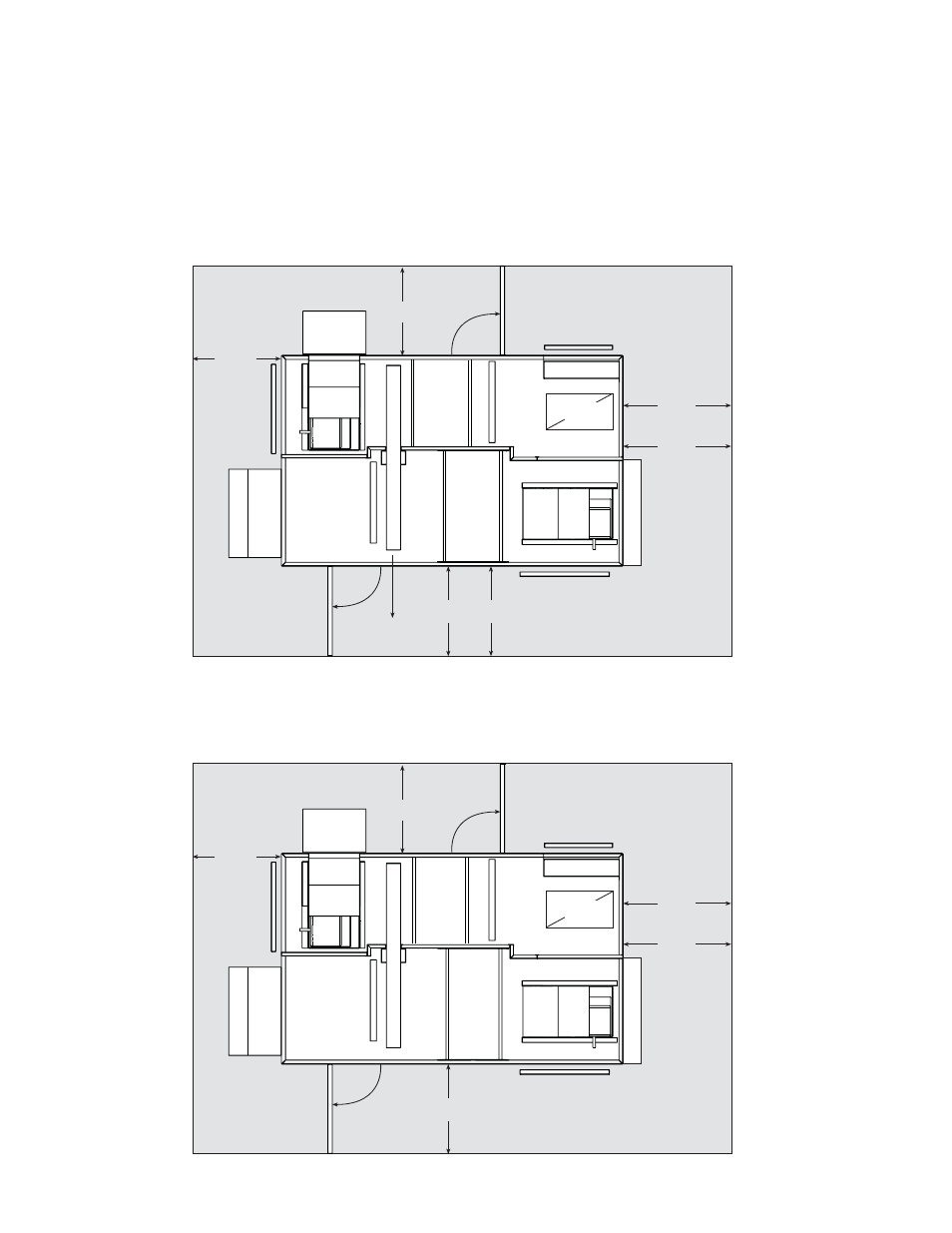

SERVICE CLEARANCES / ACCESS PANEL LOCATIONS for Model HRE

HRE-20, 45, 55, and 90 units require minimum clearances for access on all sides for routine maintenance. Filter
replacement, drain pan inspection and cleaning, energy wheel cassette inspection, fan bearing lubrication and
belt adjustment, are examples of routine maintenance that must be performed. Blower and motor assemblies,
energy recovery wheel cassette, coil and filter sections are always provided with a service door or panel for
proper component access. Clearances for component removal may be greater than the service clearances,
refer to FIGURES 6 and 7 below for these dimensions.

FIGURE 6

Wheel Cassette

2 in. filters

2 in. filters

Exhaust Air

Intake

Electrical Box

Access Panel

Access Panel

Access Panel

Access Panel

Access Panel

52 in.

Clearance with

IG Heater

0 in.

Clearance without

IG Heater

Exhaust

Hood

Outdoor Air Hood

IG Heater

42 in.

42 in.

42 in.

TOP VIEW

Direct

Evap

Section

Indirect

Evap

Section

FIGURE 7

6

Clearances for service and component removal on HRE-20 and HRE-45

*Clearance for energy wheel removal on HRE-20.
**Clearance for energy wheel removal on HRE-45.

Clearances for service on HRE-55 and HRE-90
